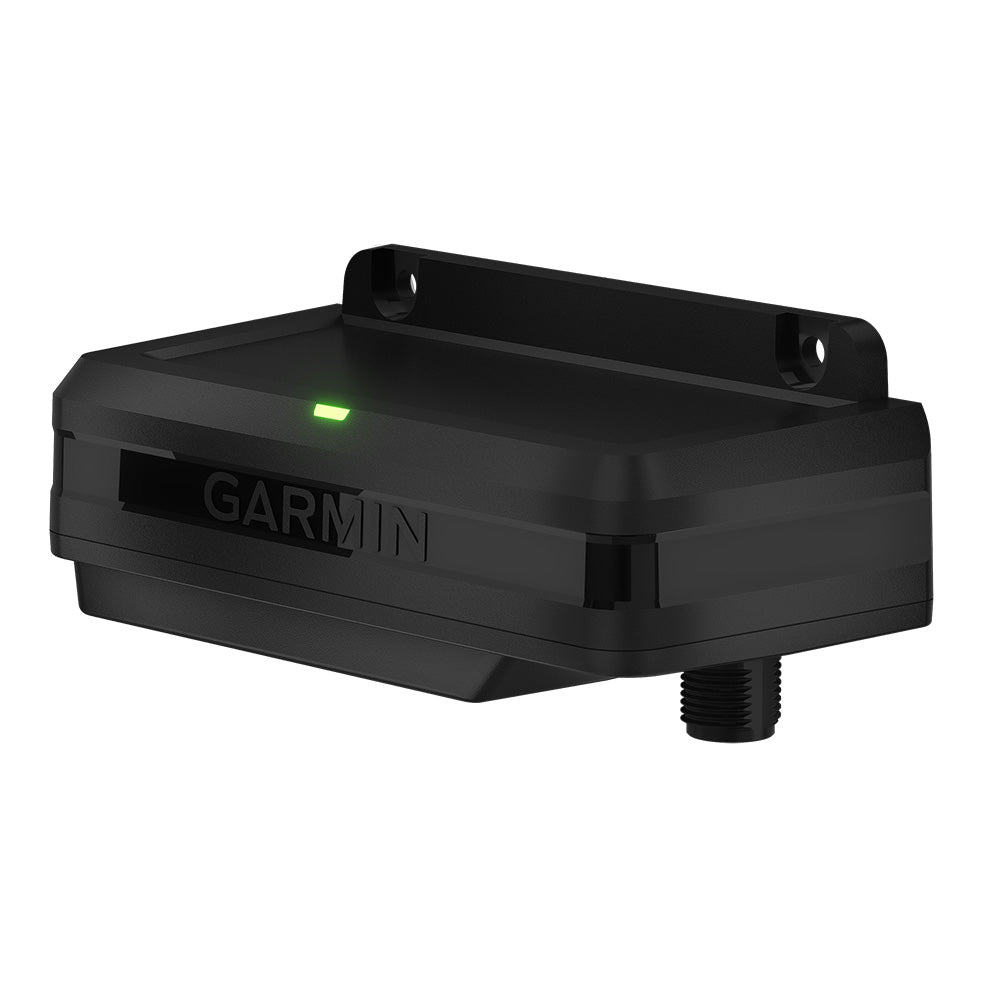

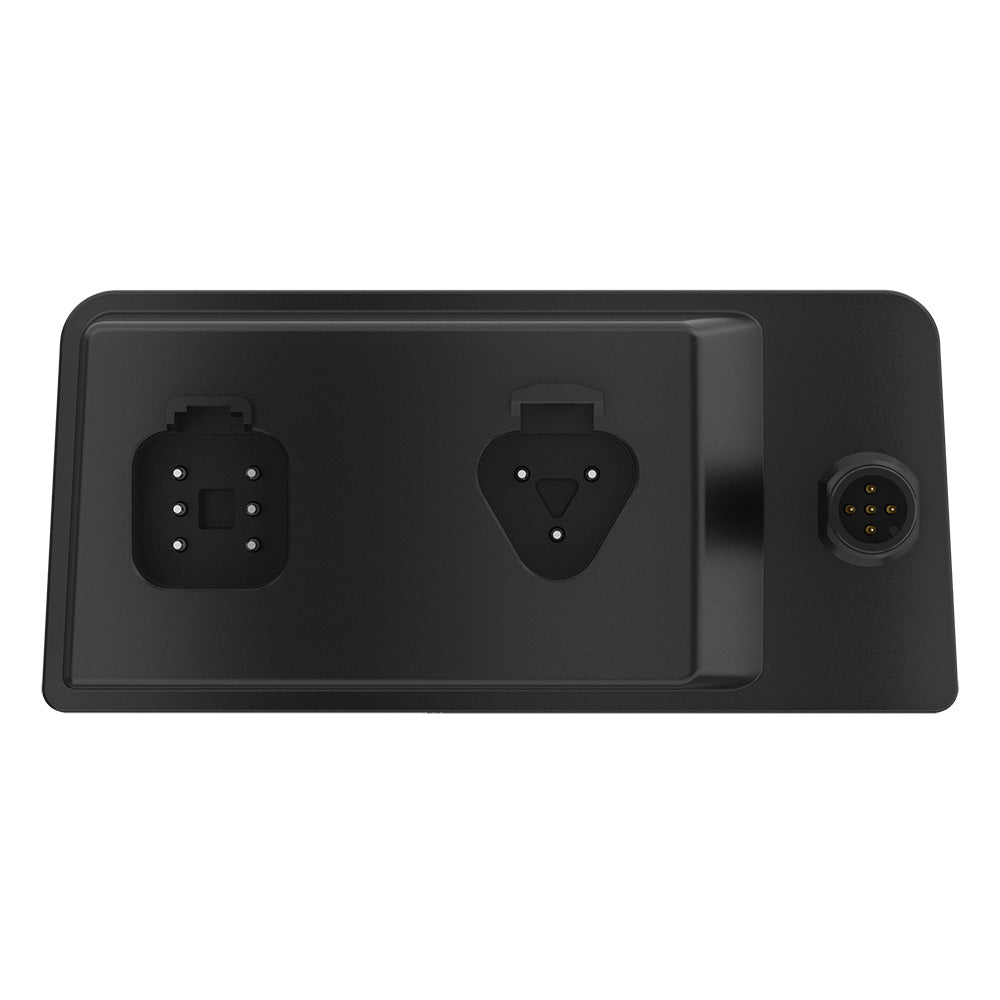

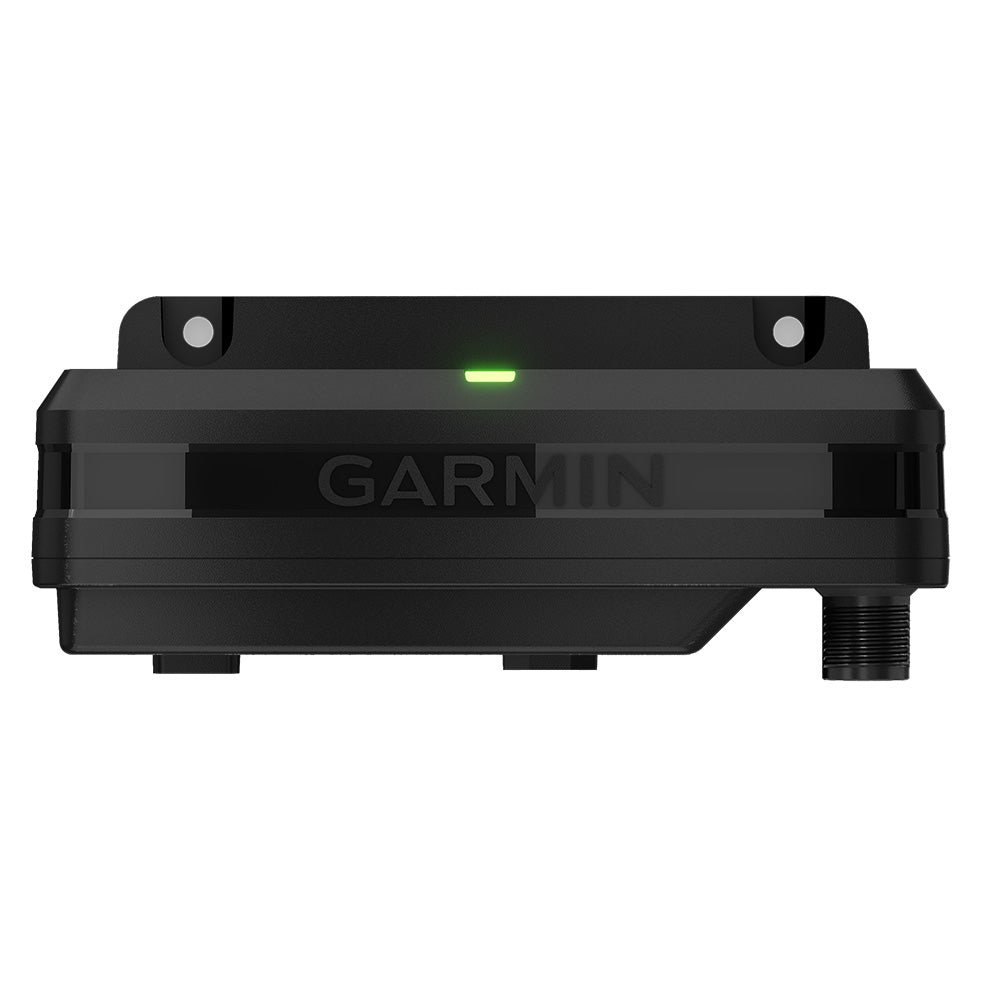

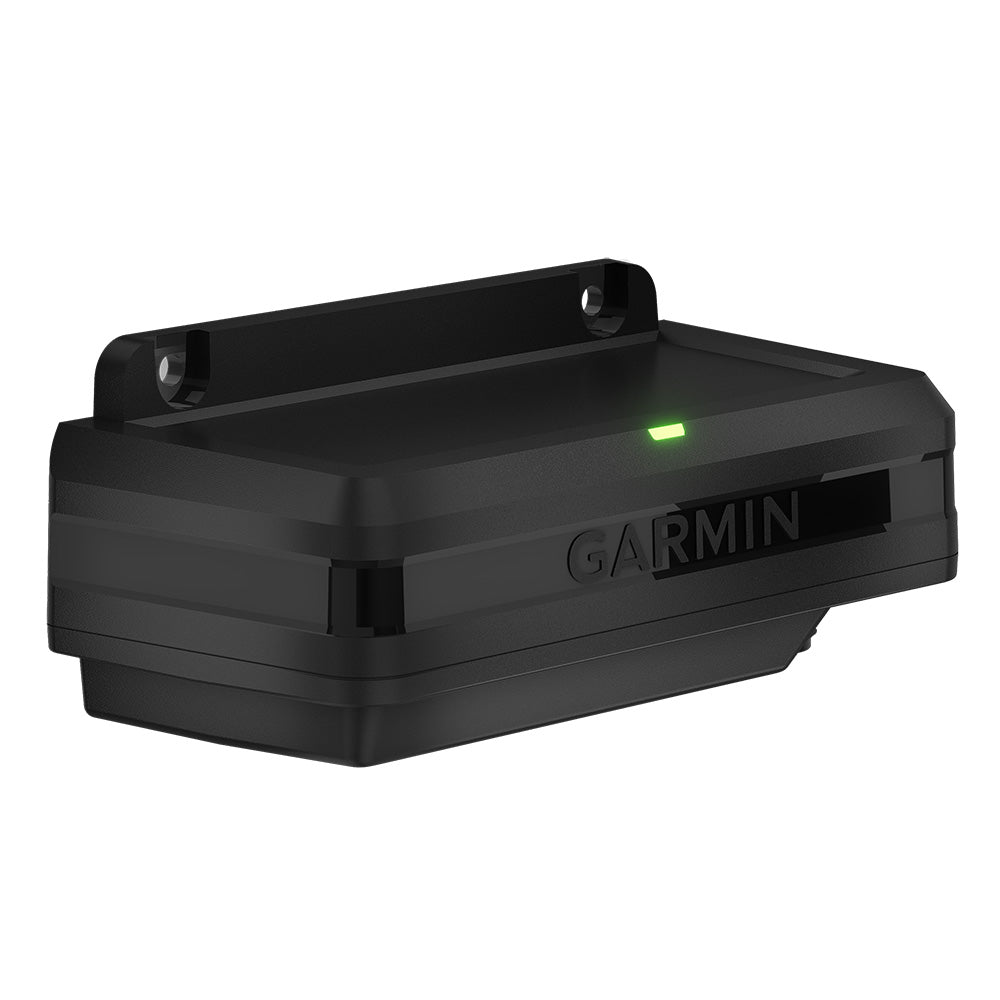

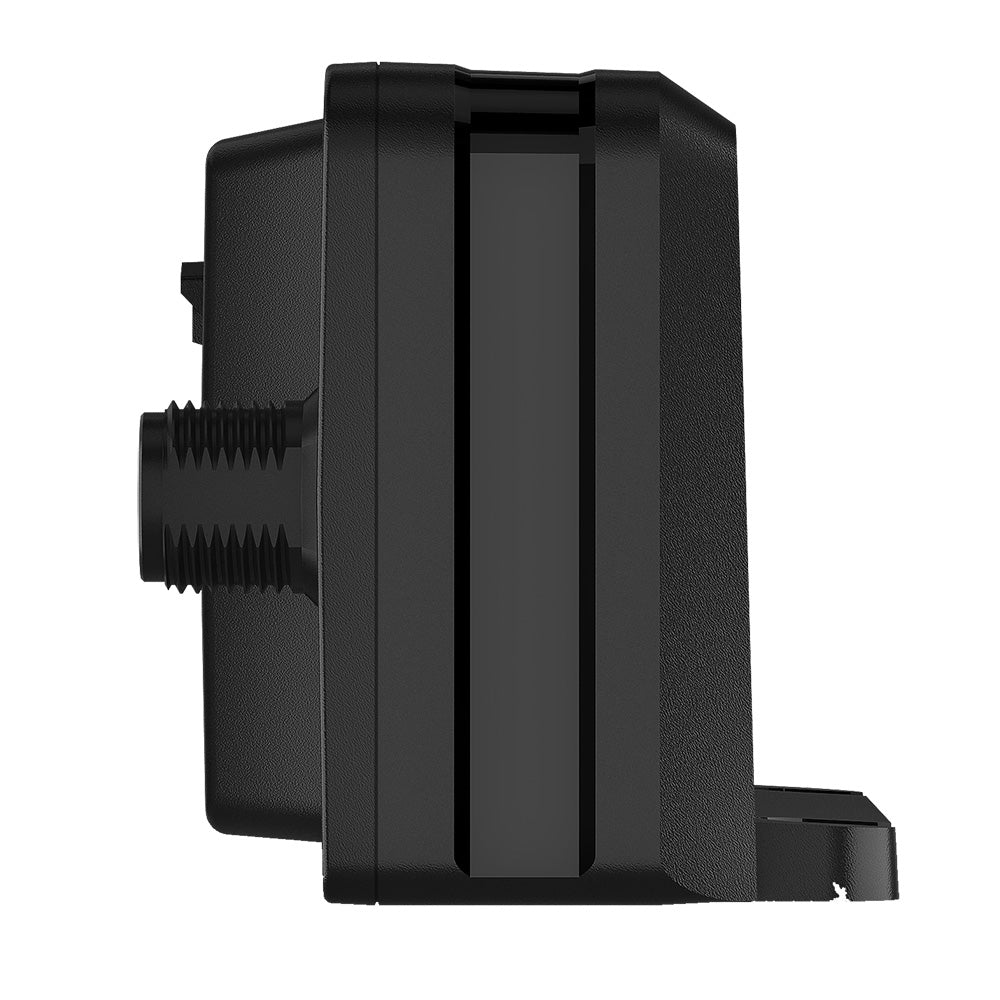

Garmin Spectra LC102 LED Control Module (010-02829-00)

The Garmin Spectra LC102 LED Control Module allows you to manage your boat's LED lighting directly from a compatible chartplotter or the ActiveCaptain smartphone app. This module connects via the NMEA 2000 network, enabling you to organize lighting into custom groups and scenes for cup holders, speakers, and courtesy lights. It includes an audio sync feature to pulse your lights to the beat of your music and is compatible with Fusion and JL Audio marine speakers.

Key Features:

• Provides centralized control of marine LED lighting over NMEA 2000
• Audio sync feature synchronizes lights with music
• Designed for marine environments with IP66 and IP67 water resistance ratings
• Scalable design supports adding more lights after initial installation
• Dimensions: 4.45" x 2.05" x 1.85"
• Weight: 2.93 oz
• Operating temperature range: 32° to 122° F (0° to 50° C)
• Compass-safe distance: 7.87" (20 cm)
• Warranty: 2 years

What's Included:

• Garmin Spectra LC102 Module
• Power flying lead with water-resistant three-way connector
• LED flying lead with water-resistant six-way connectors
• NMEA 2000 tee connector
• NMEA 2000 backbone/drop cable (0.3 m)
• Mounting screws
• Documentation
