Brand: Humminbird
Humminbird XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer
Humminbird XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer
Sold out

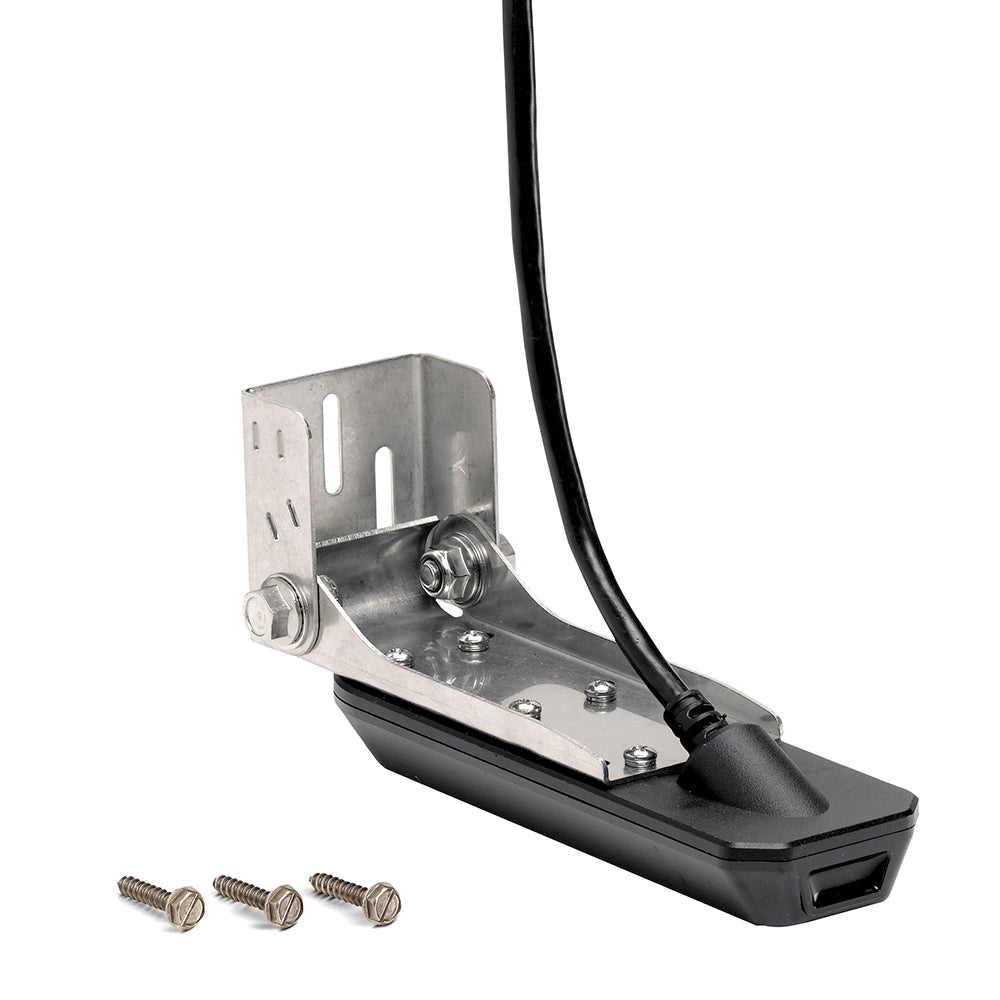

The Humminbird XM-14-HW-MDI-T is a transom-mount transducer featuring MEGA Down Imaging+ and Dual Spectrum CHIRP sonar technology. This unit includes a built-in temperature sensor, a rugged composite housing, and an all-metal mounting bracket.
- Cable Length: 20'

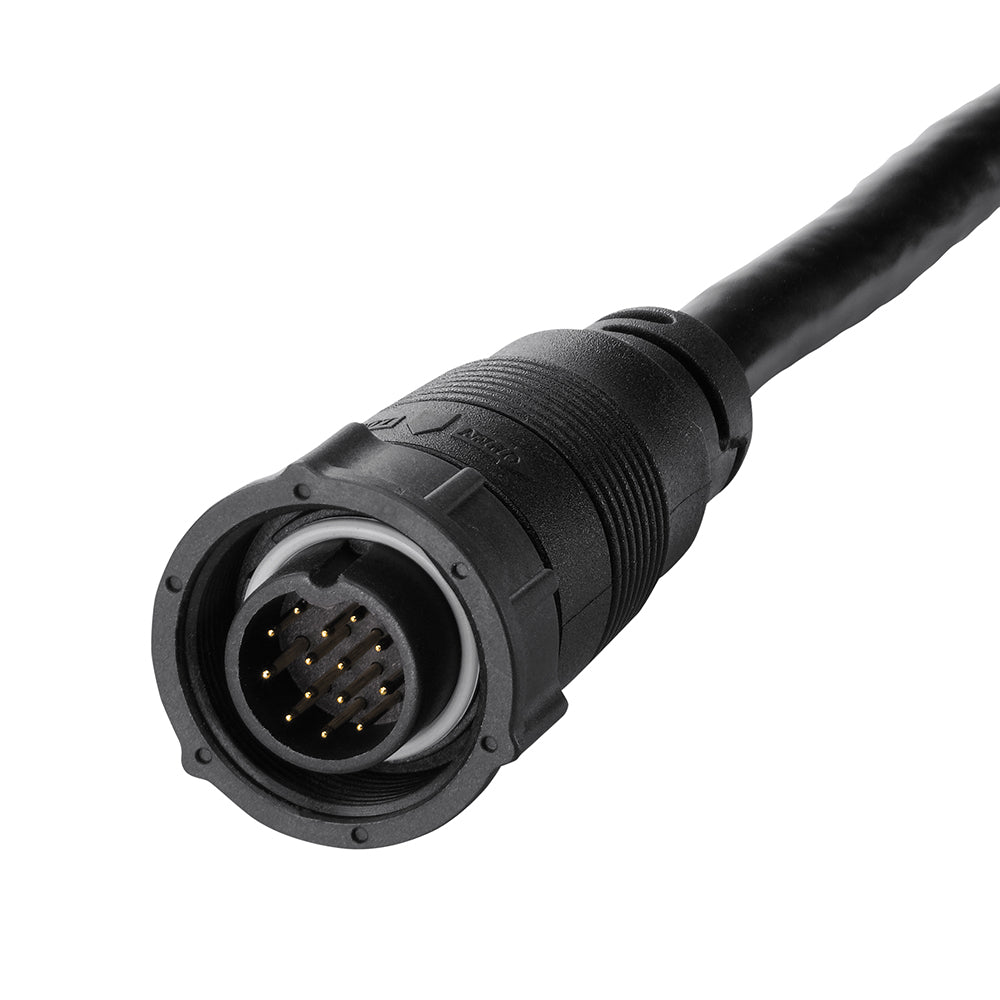

- Connector: 14-pin
- Imaging Support: MEGA Imaging+, 800kHz, and 455kHz
- Dual Spectrum CHIRP Frequencies: Full (150-220 kHz), Narrow (180-240 kHz), and Wide (140-200 kHz)
- Dual Spectrum CHIRP Max Depth: 1200' (365m)
- MEGA Down Imaging Max Depths: 400' at 455kHz, 125' at 800kHz, and 200' at MEGA DI+
- Compatibility: Compatible with Humminbird SOLIX 10, 12, and 15 CHIRP MEGA DI+ GPS G2 models
- Regulatory Note: This product contains lead, a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Product facts
- CT SKU
- CT-114053
- Model / MPN
- 710290-1
- UPC / GTIN
- 082324053191
- Package dimensions
- 7" X 8" X 10"
- Package weight
- 2.45 lb
- Specifications
- Temperature = Yes\nSpeed Included = No\nMounting Style = Transom\nImagining = Standard/Down\nCable Length (Feet) = 20'\nPins = 14\nChirp = High Wide
