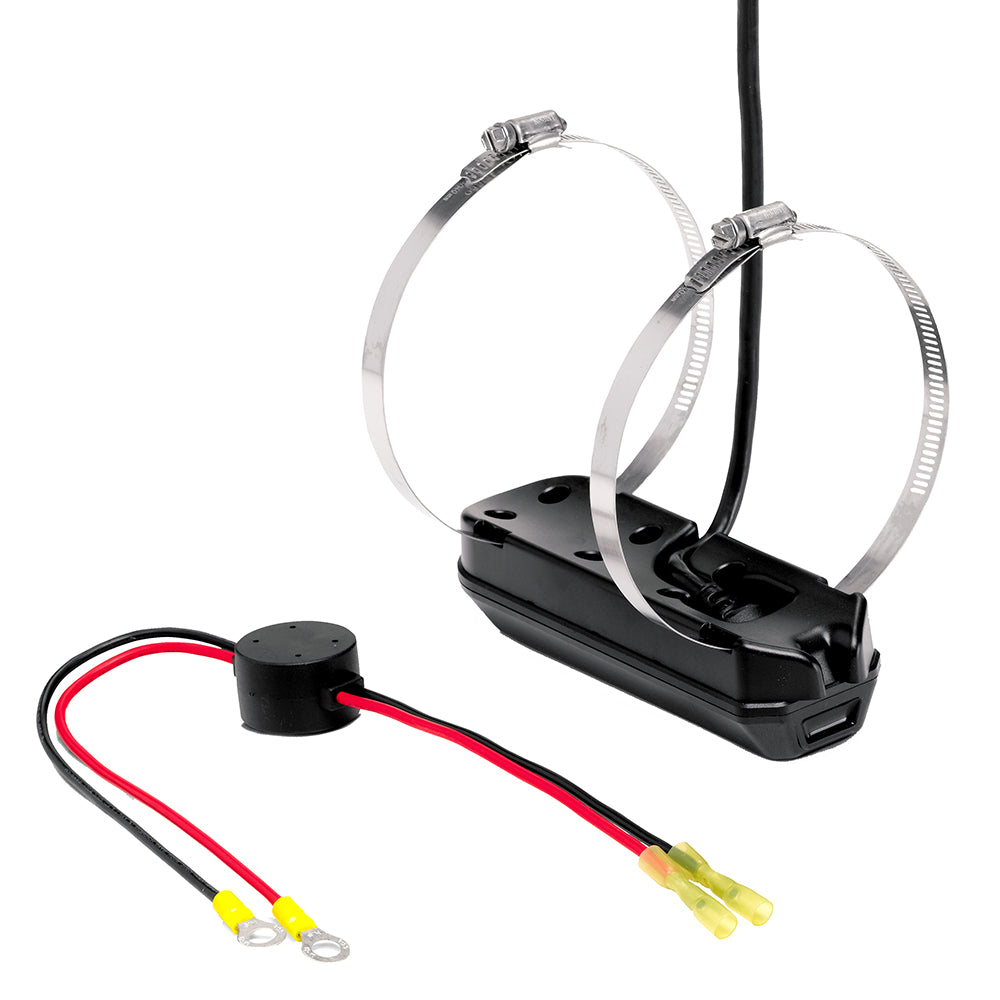

Humminbird XTM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Trolling Motor Transducer

The Humminbird XTM-14-HW-MDI-T is a trolling motor-mounted transducer designed for MEGA Down Imaging+ and Dual Spectrum CHIRP sonar. This unit includes a built-in temperature sensor and provides high-resolution imaging and target separation for compatible marine electronics.

• Imaging Capabilities: Supports MEGA Down Imaging+ (1075-1150 kHz), 800 kHz (790-850 kHz), and 455 kHz (440-500 kHz).
• Dual Spectrum CHIRP: Frequencies include Full (150-220 kHz), Narrow (180-240 kHz), and Wide (140-200 kHz).
• Performance: Maximum depth of 1200 ft. for 2D CHIRP; up to 200 ft. for MEGA DI+, 125 ft. for 800 kHz, and 400 ft. for 455 kHz.
• Compatibility: Compatible with all APEX and SOLIX models.

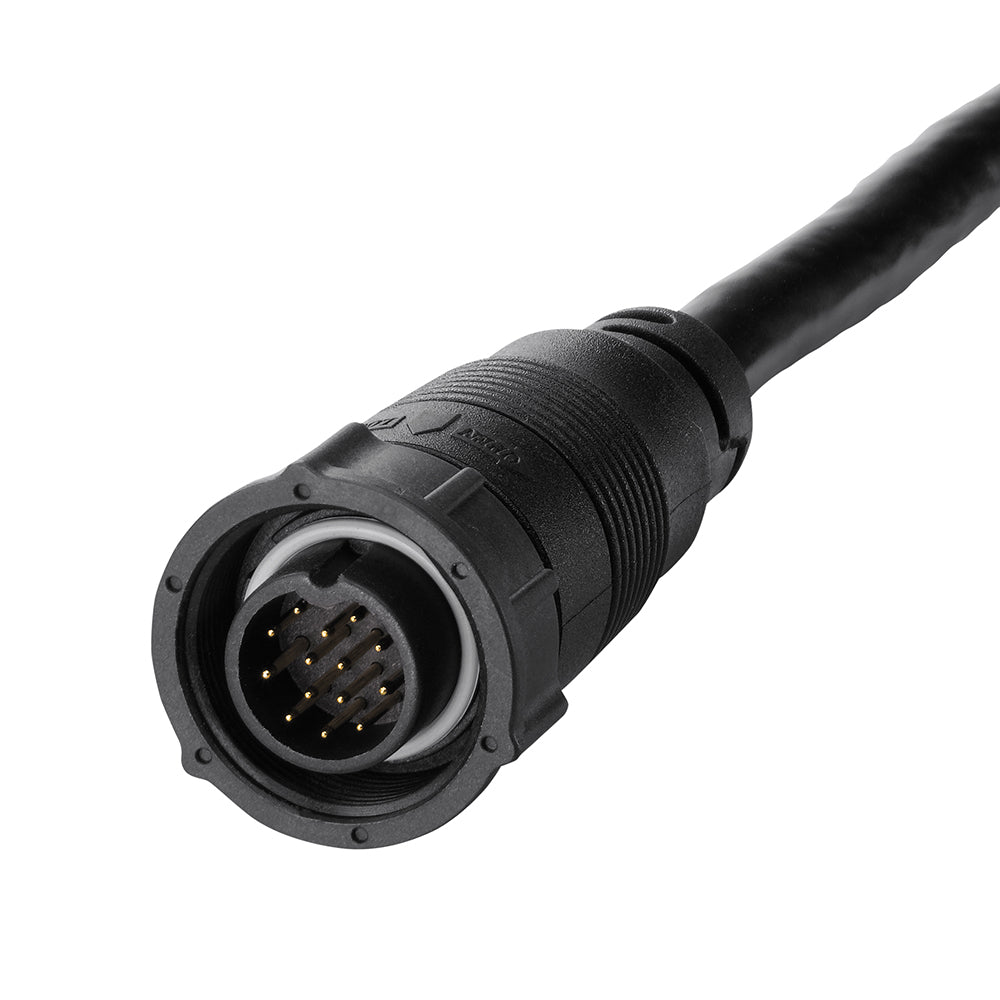

• Specifications: 14-pin connector; 15 ft. cable length.
• Fitment Note: Requires a Minn Kota trolling motor with at least 80 pounds of thrust; the transducer measures 7.15 in. long by 2.3 in. wide and will not fit in smaller spaces between the prop and skeg.
• Warranty: Includes 1-year limited warranty.
• Regulatory Note: This product contains lead, a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.
