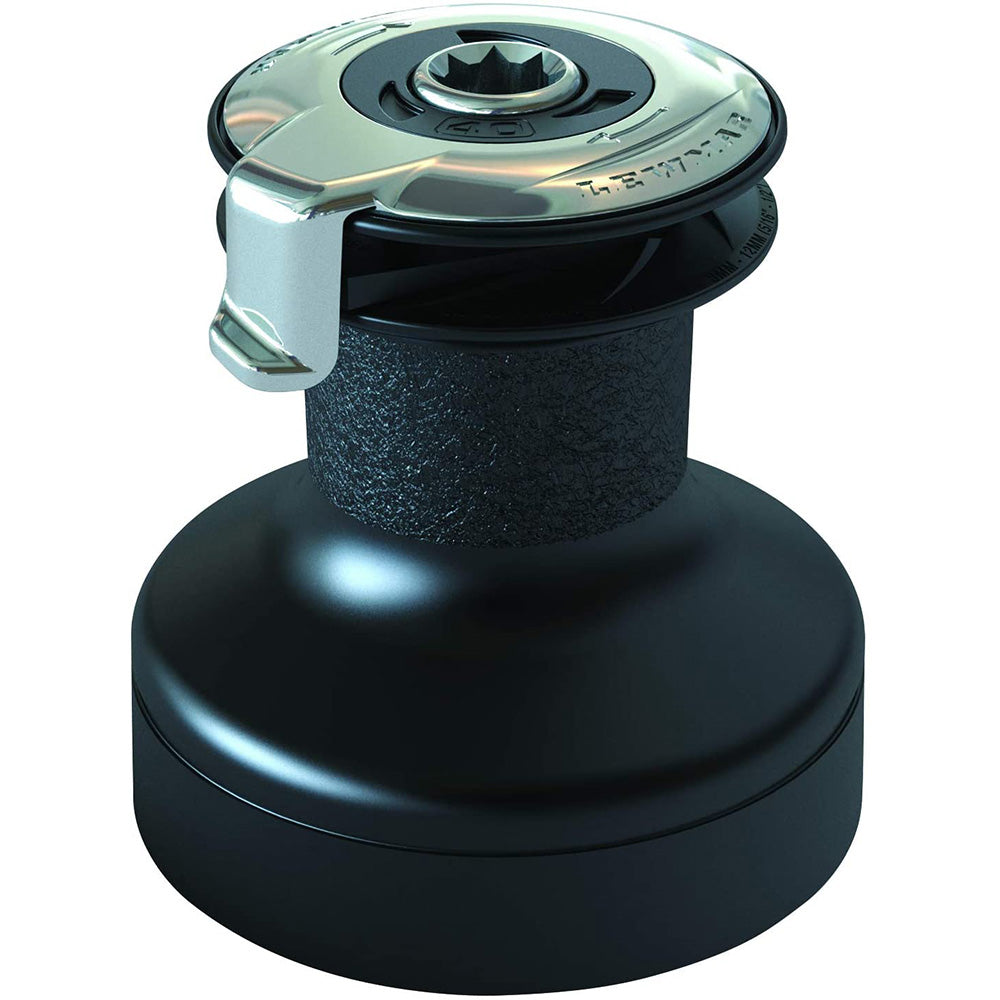

Lewmar 40ST EVO Self-Tailing Winch, Alloy Black, 1753 lbs SWL

Lewmar 40ST EVO Self-Tailing Winch, Alloy Black, 1753 lbs SWL

SKUCT-117626

$1,553.21
$1,553.21
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Elevate your sailing experience with the Lewmar 40ST EVO® Self-Tailing Winch. This advanced, two-speed alloy winch is engineered for effortless sail handling, building upon Lewmar's renowned Ocean winch heritage with over 70 years of design expertise. Designed for both cruising and racing sailors, its intuitive features and robust construction ensure reliable performance in diverse marine conditions. Upgrade to a winch built for the long haul and enjoy smoother, more controlled sail trimming today.

In the Box:
  • Lewmar 40ST EVO Winch
  • Instruction manual
Key Benefits:
  • Effortless Servicing: Designed for tool-free maintenance, allowing for quick and easy cleaning, lubrication, and inspection to keep your winch performing optimally.
  • Advanced Self-Tailing: Features a robust stainless steel top-mounted feeder arm that prevents line traps and guides the line smoothly onto the self-adjusting wave spring jaws, accommodating various line diameters.
  • Two-Speed Operation: Offers a 1.9:1 first gear ratio for major adjustments and a 5.8:1 second gear ratio for precise trim and handling heavier loads with less effort.
  • Convertible to Electric: Winches of size 40 and larger can be readily converted to electric power with an optional kit, providing an easy upgrade path for enhanced convenience.
  • Durable Construction: Crafted from high-quality, black anodized aluminum alloy for exceptional strength, corrosion resistance, and long-lasting performance in the harsh marine environment.
  • User-Friendly Design: Integrated direction arrows simplify operation for all crew members, ensuring correct line loading for safer and more enjoyable sailing.
  • Extended Warranty: Backed by a comprehensive 7-year warranty, highlighting Lewmar's commitment to quality and durability.
Specifications:
  • Winch Size: 40ST
  • Base Diameter: 5.83 inches (148 mm)
  • Height: 6.24 inches (159 mm)
  • Drum Diameter: 2.91 inches (74 mm)
  • Safe Working Load (SWL): 1753 lbs
  • Weight: 10.7 lbs (4.9 kg)
  • Line Entry Height: 3.11 inches
  • Recommended Line Size: 0.32 - 0.5 inches (8 - 12 mm)
  • 1st Gear Ratio: 1.9:1
  • 2nd Gear Ratio: 5.8:1
  • 1st Power Ratio: 13.2:1
  • 2nd Power Ratio: 40.2:1
  • Material: Black Anodized Aluminum Alloy
  • Country of Origin: Great Britain
