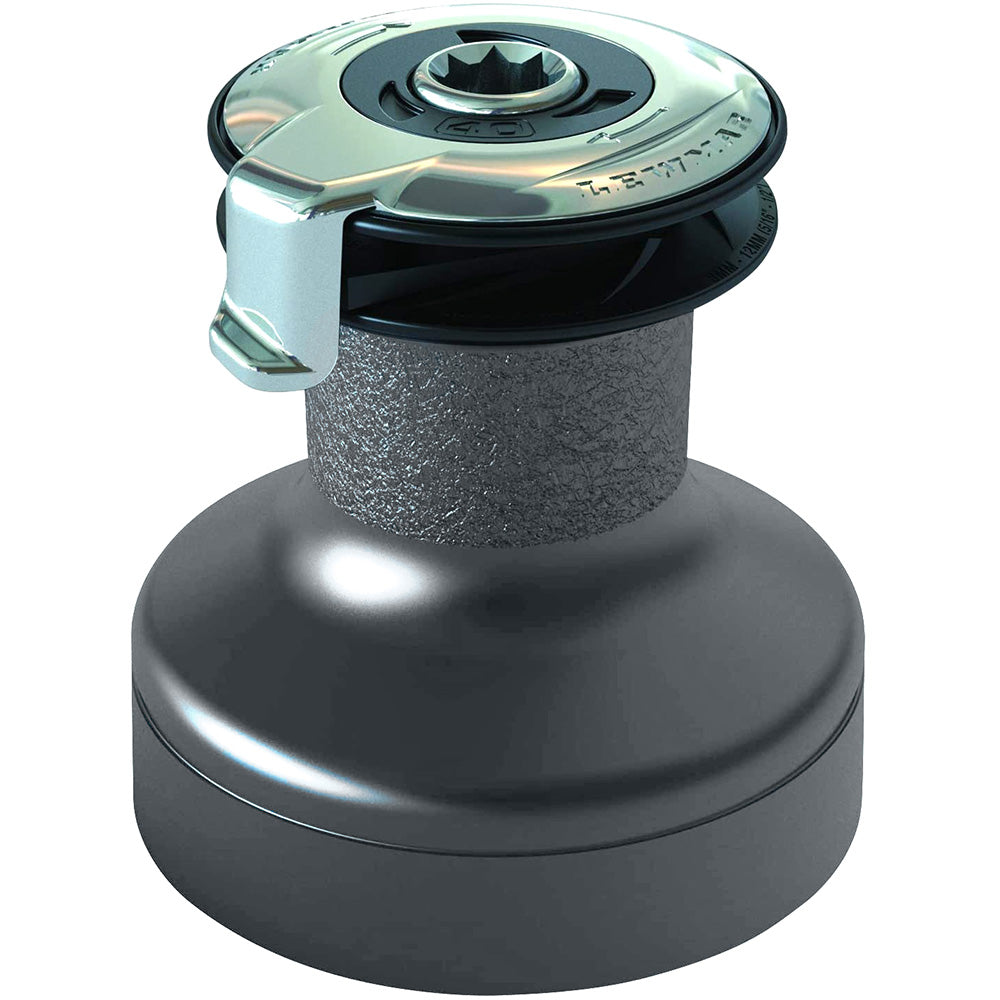

Lewmar 45ST EVO Self-Tailing Winch, 2-Speed Alloy Grey

Lewmar 45ST EVO Self-Tailing Winch, 2-Speed Alloy Grey

SKUCT-117644

$1,690.24
$1,690.24
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Master your sail handling with the Lewmar 45ST EVO Self-Tailing Winch, engineered for superior performance and ease of use on modern cruising and performance yachts. This 2-speed winch is a modern evolution of Lewmar's renowned Ocean range, drawing on over 70 years of design and manufacturing expertise to deliver exceptional reliability. Its robust alloy construction in an elegant grey finish ensures long-lasting durability in demanding marine environments. Upgrade your sailing experience with a winch designed for efficiency and safety.

In the Box:
  • Lewmar 45ST EVO Winch
  • Instruction Manual
Key Benefits:
  • Effortless Servicing: Designed for tool-free maintenance, allowing quick access for cleaning and inspection to keep performance consistent.
  • Intuitive Operation: Features user-friendly direction arrows to ensure correct line loading, enhancing safety and making sailing more enjoyable for all crew members.
  • Convertible to Electric: Ready for an optional electric conversion kit (for winches size 40 and above), offering versatile functionality and reduced effort for heavy loads.
  • Two-Speed Gearing: Provides a 1st gear for major sheet adjustments and a 2nd gear for fine-tuning and handling heavier loads with less effort.
  • Durable Construction: Crafted from high-quality aluminum alloy with a grey anodized finish, ensuring resistance to corrosion and wear.
  • Secure Line Management: Features a stainless steel top-mounted feeder arm that prevents line trap above the jaws, and Wave Spring jaws that adapt to various line diameters for taut sails.
  • Extended Warranty: Backed by a 7-year standard warranty, with an optional lifetime upgrade for long-term peace of mind.
Technical Specifications:
  • Part Number: 49545057
  • Drum Diameter: 3.42 inches (87 mm)
  • Base Diameter: 6.61 inches (168 mm)
  • Height: 6.99 inches (177.7 mm)
  • Line Entry: 3.31 inches (84 mm)
  • Line Size: 0.32 - 0.55 inches (8 - 14 mm)
  • Gear Ratio (1st Gear): 2.4:1
  • Gear Ratio (2nd Gear): 7.6:1
  • Power Ratio (1st Gear): 13.9:1
  • Power Ratio (2nd Gear): 44.8:1
  • Safe Working Load (SWL): 2646 lbs (1200 kg)
  • Weight: 15.8 lbs (7.2 kg)
  • Country of Origin: Great Britain
