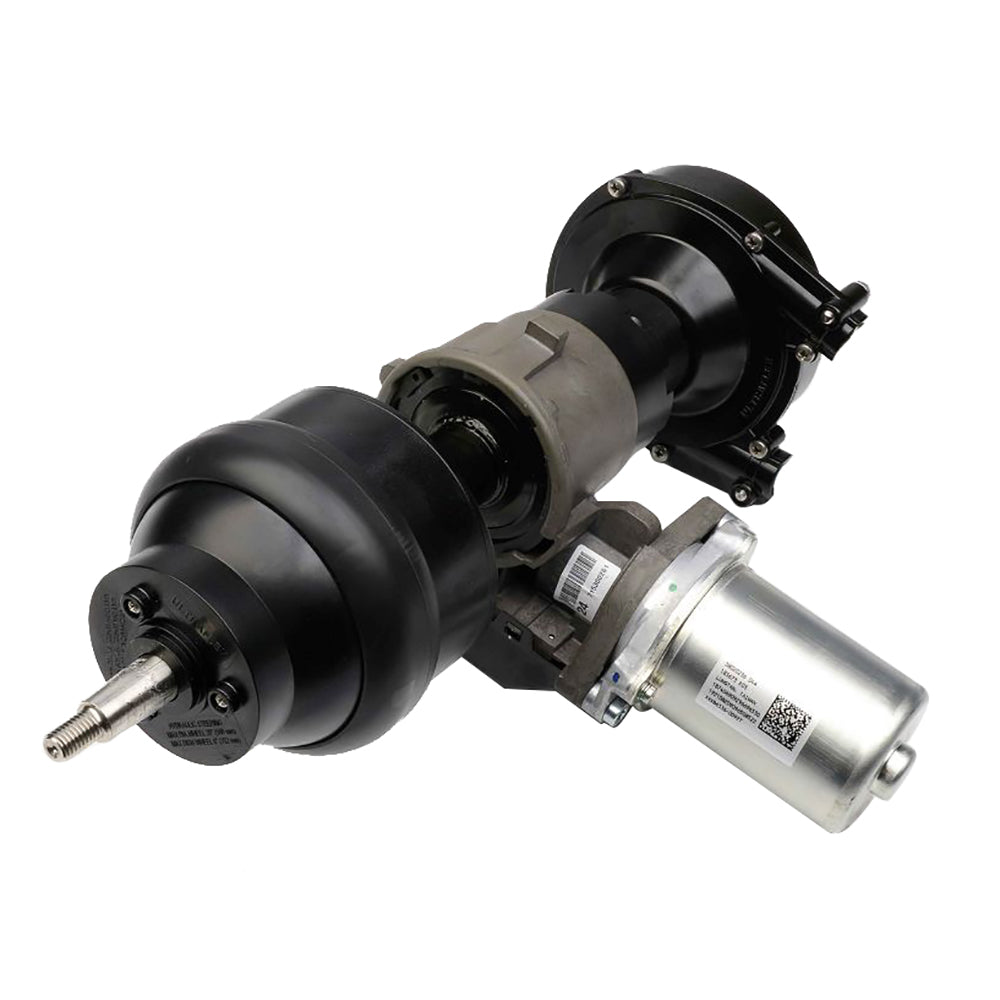

Uflex USA NaviTech Power Steer Assembly, Marine

Elevate your boating experience with the Uflex USA NaviTech™ Power Steer Assembly, engineered to bring sophisticated automotive steering technology to your vessel. Experience unprecedented performance, silent operation, and intuitive control previously only found in high-end cars. This advanced system enhances maneuverability and provides a refined, responsive feel on the water, making every journey smoother and more enjoyable.

In the Box:

• Power Assisted Steering Helm (T91NAV)
• Tilt Mechanism (X66)
• M90 Nav Steering Cable

Key Benefits:

• Automotive Steering Feel: Delivers familiar, responsive, and precise steering effort akin to performance vehicles.
• Silent Operation: Enjoy a quiet and serene ride with virtually no noise from the steering system.
• Integrated System Monitoring (ISM): Proactively alerts the user via haptic feedback in the steering wheel if cable replacement is needed, enhancing safety and predictive maintenance.
• High Assist Torque: Features 16 Nm of assist torque capability for effortless steering control.
• Customizable Performance: Programmable software allows for tuning of on-center and end-of-travel torque effort to meet specific boat builder objectives.
• Marine Application Certified: Validated to meet rigorous CE, ABYC P17, P27, and ISO 25197 standards, ensuring marine-grade reliability and safety.
• NMMA Type Acceptance: Completed NMMA Type Acceptance further confirms compliance with North American marine industry standards.
• Proven Automotive Technology: Leverages electronic power steering technology proven in leading automotive applications since 2011, with millions of units produced annually.
• Balanced Steering: Offers 100% balanced steering for consistent performance from port to starboard and vice versa.
• Extensive Field Testing: Undergone over 3 years of field testing for proven durability and reliability.

Specifications:

• Operating Voltage: 10 - 15 VDC
• Nominal Current: 8 - 15 A during steering maneuvers
• Electrical Harness: Supplied with a 10 ft electrical harness.
• Required Fuse: Requires a 40 A fuse (to be ordered separately).
• Tilt Range: Up to 48° with five locking positions for the tilt mechanism.
• Limit of Applications: Recommended for outboard engines up to 150 hp, a maximum speed of 50 mph, and without jackplates.

Upgrade your vessel's handling and embrace cutting-edge marine technology today.
