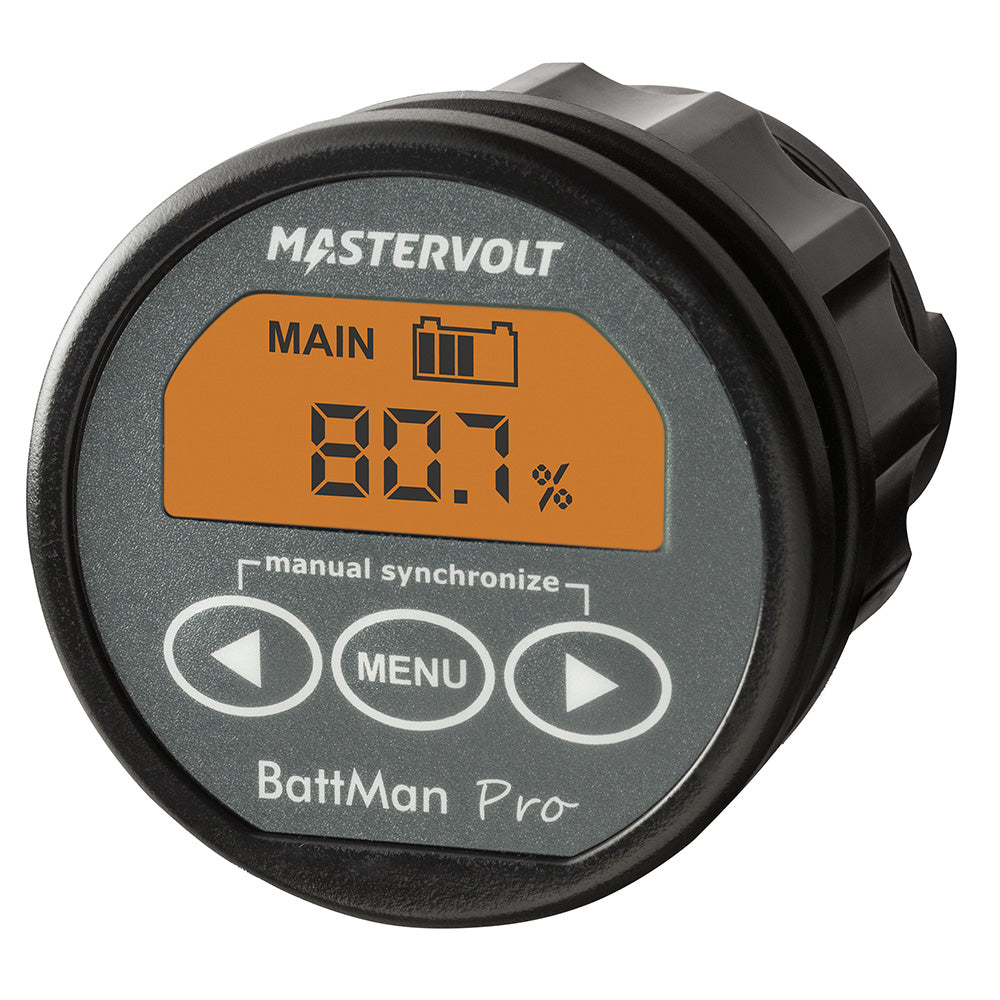

Mastervolt BattMan Pro Battery Monitor 12/24V

The Mastervolt BattMan Pro Battery Monitor is a reliable device designed to provide real-time information about the status of your battery bank. Suitable for 12V and 24V DC systems, this monitor features a splash-proof IP65 display and includes a power bar to indicate remaining battery life. It tracks voltage, current, amp-hours, and remaining capacity percentage, while also storing historical battery status events and offering a potential-free alarm contact.

Key Specifications:

• Supports up to 2 battery outlets (full service and starter voltage monitoring)
• Max Ah capacity: 9999 Ah
• Voltage range: 0-35 V
• Current measurement range: 0-500 A
• Display depth: 2.9 in. (72.5 mm); Total depth: 3.11 in. (79 mm)
• Display diameter: 2.52 in. (64 mm)
• Shunt dimensions: 3.4 x 1.8 x 1.4 in. (87 x 45 x 35 mm)
• Weight: 0.3 lb (0.15 kg)
• Includes shunt (500 A/50 mV)
• Model number: 70405070
