• Airmar B164 Bronze 1 kW Thru-Hull Transducer, 12-Degree Tilt, 50/200 kHz
1 1

Brand: Airmar

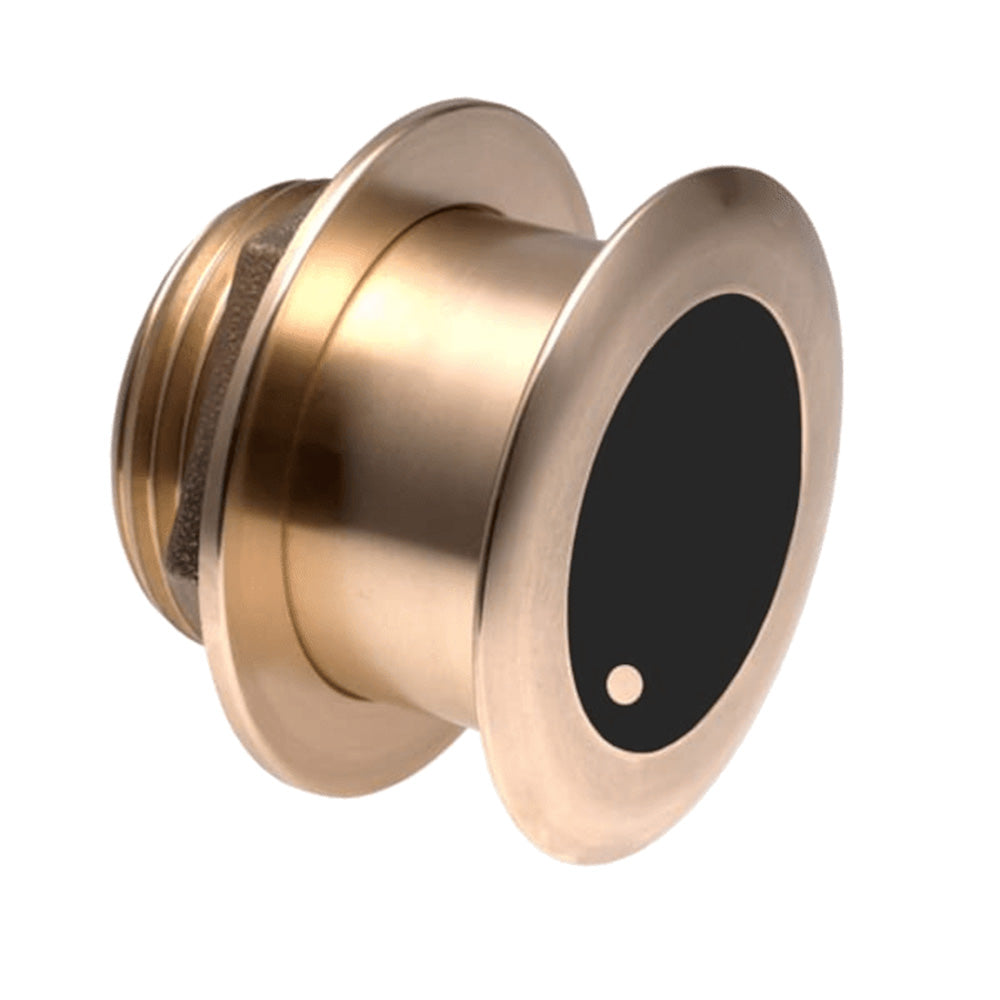

Airmar B164 Bronze 1 kW Thru-Hull Transducer, 12-Degree Tilt, 50/200 kHz

Airmar B164 Bronze 1 kW Thru-Hull Transducer, 12-Degree Tilt, 50/200 kHz

$1,266.33
$1,266.33
Sale Sold out
Shipping calculated at checkout.

Sold out

About this product

The Airmar B164 is a 1 kW thru-hull transducer designed for center-console and trailered vessels that require high-performance sonar without the need for a fairing. This bronze, flush-mount housing extends less than 0.25" below the hull, allowing it to sit safely on trailer rollers and bunks while providing accurate depth and fast-response water temperature data. The internal ceramic arrays are tilted to provide a vertical beam for maximum energy return directly below the boat.

  • Power rating: 1 kW
  • Frequency: Dual-frequency 50/200 kHz
  • Beamwidth: 22° at 50 kHz, 6° at 200 kHz
  • Depth range: Up to 1800' at 50 kHz, 800' at 244 m at 200 kHz
  • Mounting style: Tilted element thru-hull for 8° to 15° deadrise angles
  • Compatibility: Works with 600 W or 1 kW echo sounders
  • Housing material: Bronze (suitable for fiberglass or wood hulls)
  • Includes Xducer ID technology
  • Requires a Mix & Match cable (sold separately)
  • Hole size: 3-3/4"
  • Weight: 6 lbs

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-119918
Model / MPN
B164-12-MM
Package dimensions (H × W × L)
8" X 11" X 12"
Package weight
9.6 lb

Specifications

Cable Length (Feet)
6.5'
Chirp
No
Imaging
Standard
Mounting Style
Thru-Hull
Speed Included
No
Temperature
Yes
Type
Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilte
