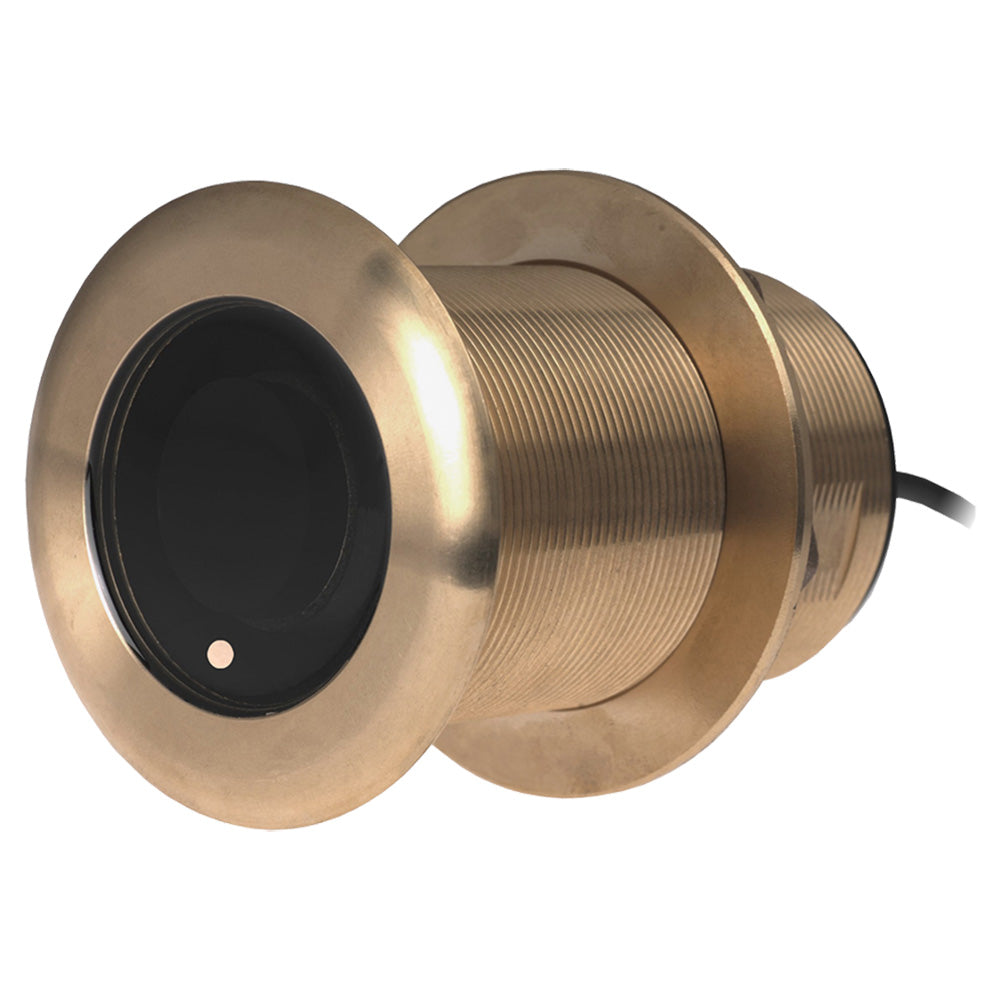

Airmar B60 600W 12-Degree Tilted Element Thru-Hull Transducer

The Airmar B60 is a 600W dual-frequency thru-hull transducer designed to deliver precise depth and water temperature readings. Featuring Airmar's Tilted Element technology, the internal ceramic element is fixed at a 12° angle to compensate for hull deadrise, allowing for a near-flush installation that maximizes echo returns without affecting vessel performance.

Key Features:

• 50/200 kHz dual-frequency operation for versatile depth performance.
• 12° tilted element corrects for deadrise angles up to 24°.
• Low-profile bronze housing sits just 5 mm (3/16") outside the hull.
• Suitable for fiberglass or wood hulls on boats up to 8 m (26').
• Fast-response temperature sensor included.

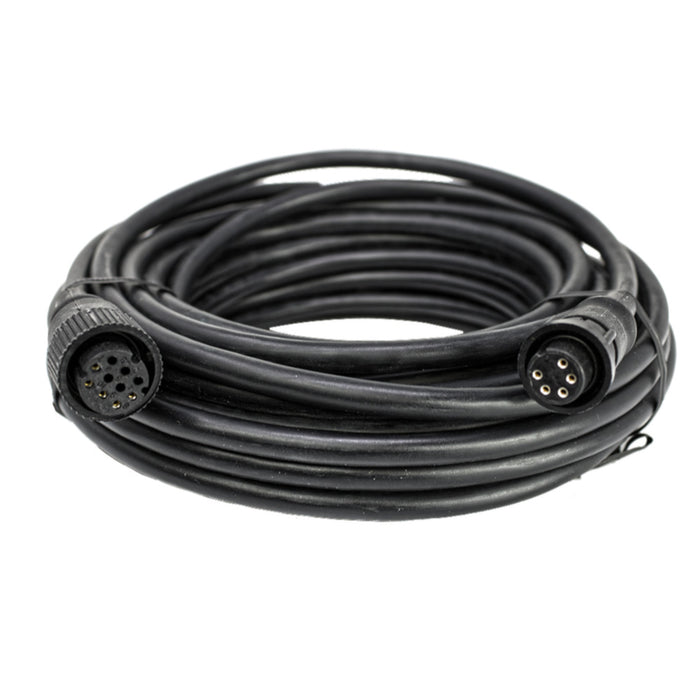

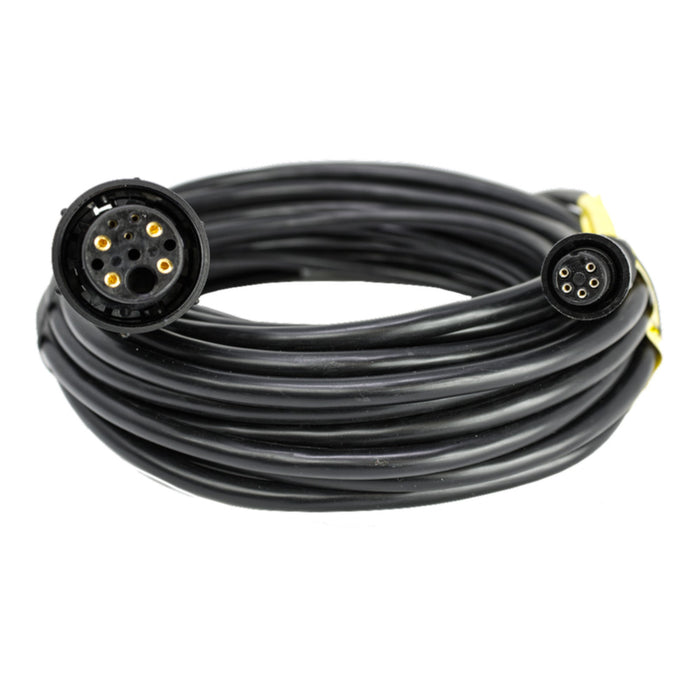

• Requires a Mix & Match cable for connection to compatible marine electronics.

Technical Specifications:

• Power Rating: 600W
• Frequency Beamwidths: 45° at 50 kHz, 12° at 200 kHz
• Maximum Depth: 366 m (1200') at 50 kHz, 206 m (700') at 200 kHz
• Mounting Hole Diameter: 60 mm (2-3/8")
• Usable Shaft Length: 68.5 mm (2.70")
• Housing Material: Bronze
• Weight: 1.4 kg (3 lbs.)
• Manufacturer Part Number: B60-12-MM
