Brand: Airmar

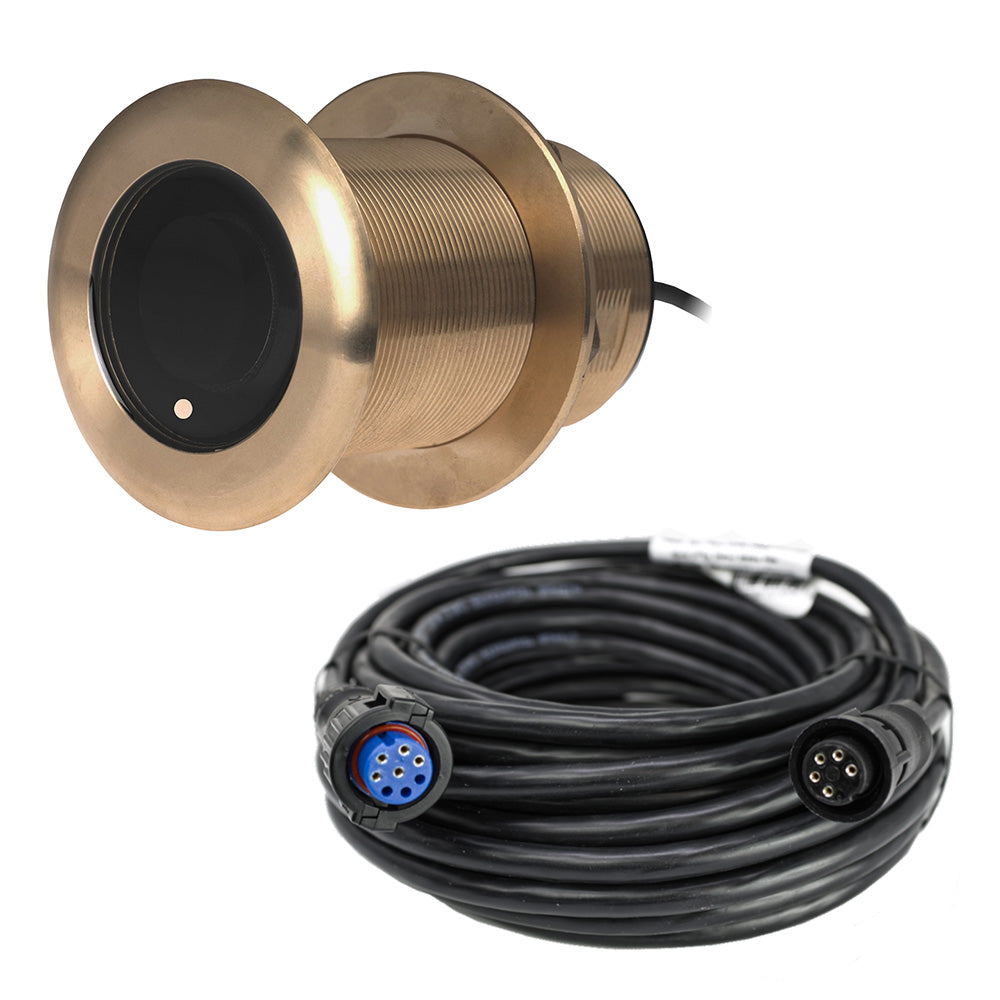

Airmar B60 20-Degree Bronze Tilted-Element Thru-Hull Transducer, 600 W, 8-Pin for Garmin
Airmar B60 20-Degree Bronze Tilted-Element Thru-Hull Transducer, 600 W, 8-Pin for Garmin
10+ available
About this product
Airmar B60 is a 600 W bronze tilted-element thru-hull transducer for Garmin systems, combining dual-frequency depth sensing with water temperature measurement.
- Manufacturer part number: B60-20-8G
- 20-degree tilted element for hull deadrise angles from 16 to 24 degrees
- Conventional dual frequency: 50 kHz with a 45-degree beamwidth and 200 kHz with a 12-degree beamwidth
- Depth performance up to 366 m (1,200 ft.) at low frequency and 206 m (700 ft.) at high frequency
- 600 W power rating
- Bronze housing for fiberglass or wood hulls
- Depth and fast-response water temperature sensing
- Low-profile housing extends 5 mm (3/16 in.) outside the hull
- 60 mm (2-3/8 in.) hole size and 68.5 mm (2.70 in.) usable shaft length
- 8-pin connection; cable length: 26 ft.
- Temperature sensing included; speed sensing not included
- Non-retractable housing; urethane acoustic window
- Maximum vessel length: up to 8 m (26 ft.)
- Weight: 1.4 kg (3 lbs.)
- Common uses: leisure boating, yachting, and fishing
- Chirp: No; imaging: Standard
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-119263
- Model / MPN
- B60-20-8G
- Package dimensions (H × W × L)
- 4" X 6" X 8"
- Package weight
- 4.23 lb
Specifications
- Cable Length (Feet)
- 26'
- Chirp
- No
- Imaging
- Standard
- Mounting Style
- Thru-Hull
- Pins
- 8
- Speed Included
- No
- Temperature
- Yes
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
