Brand: Analytic Systems

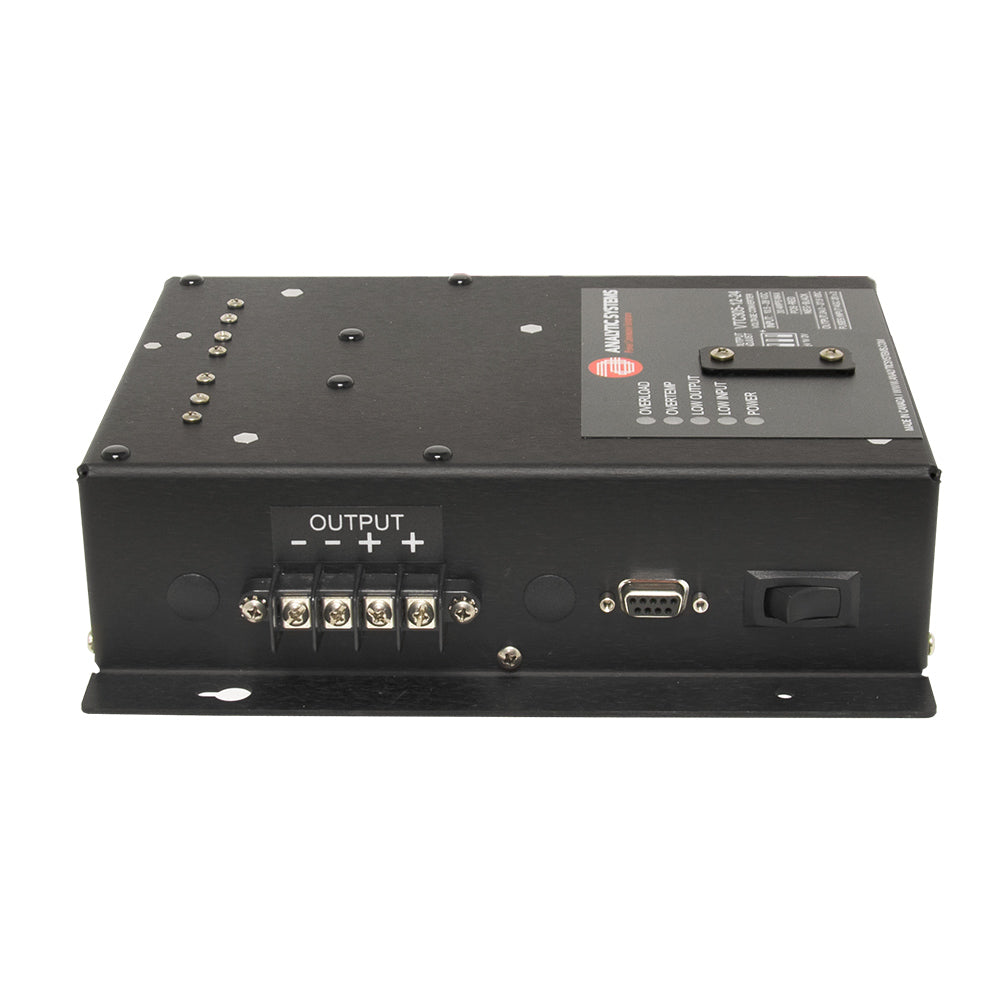

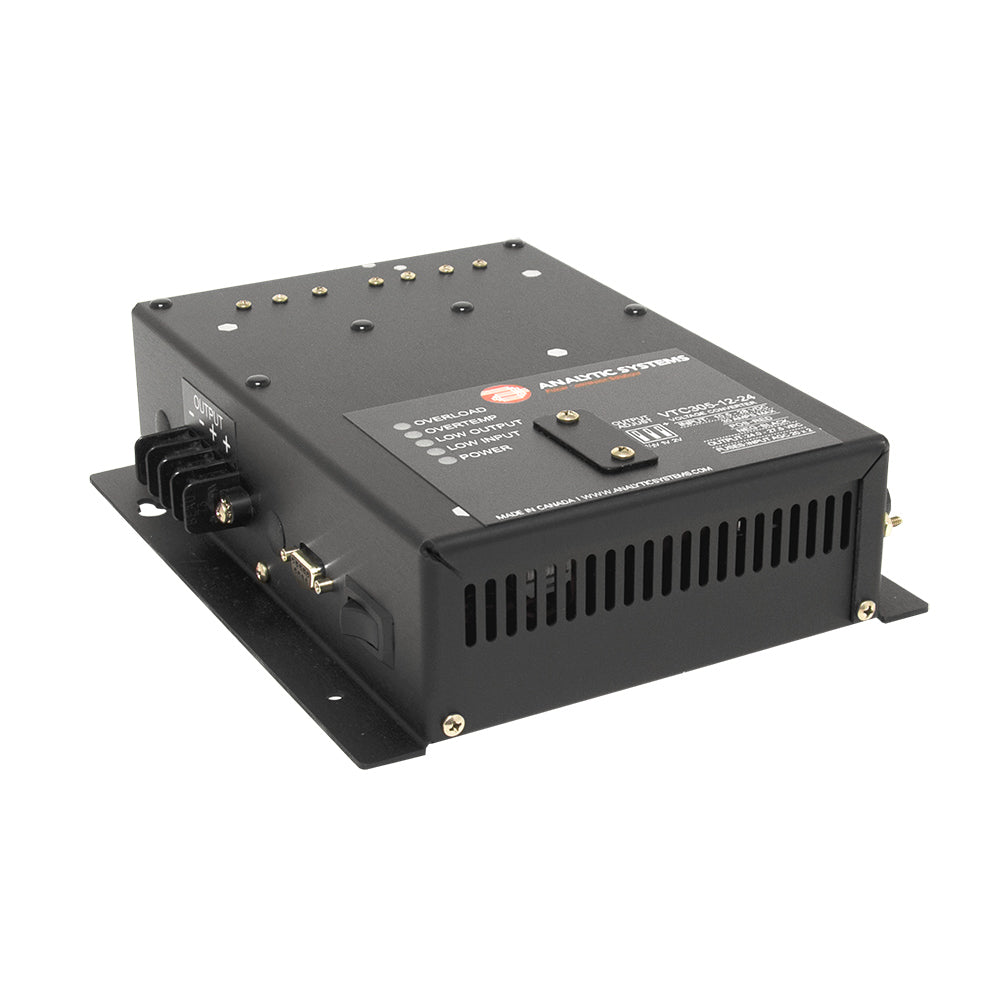

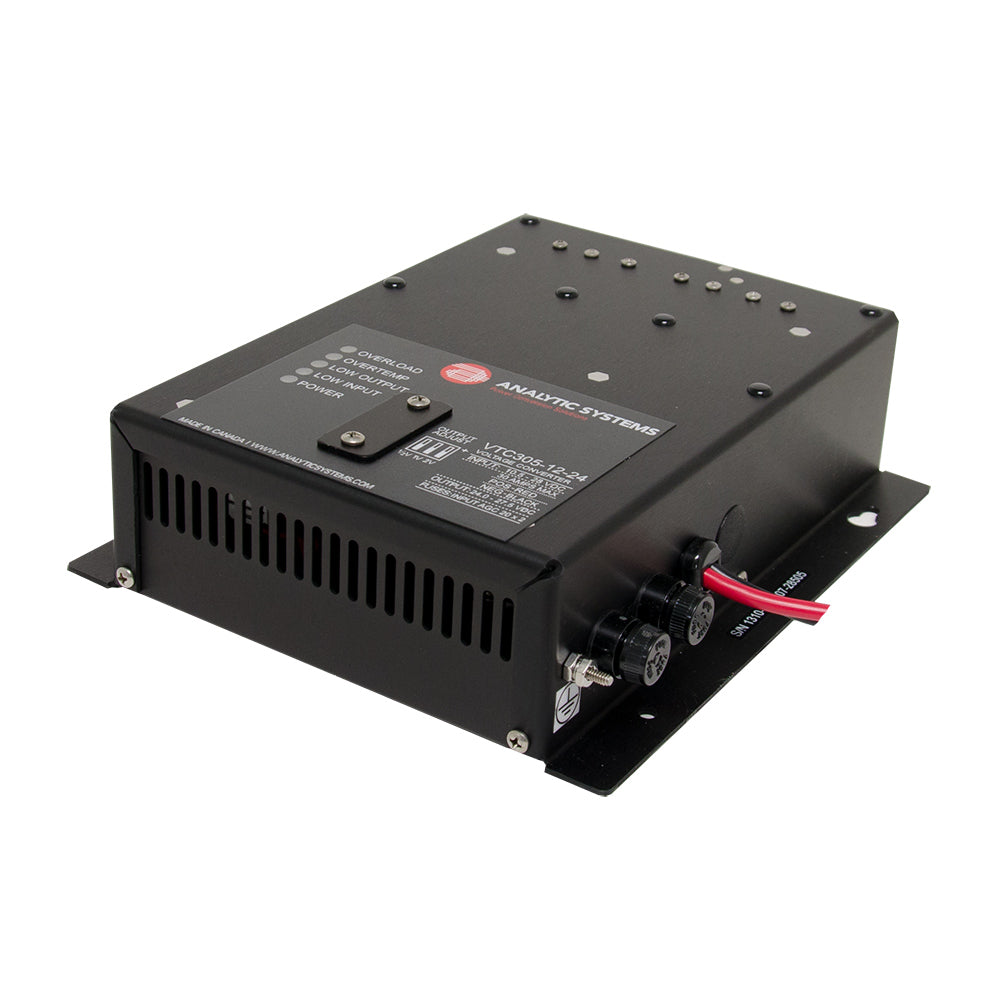

Analytic Systems VTC305-12-24 Non-Isolated DC-DC Converter, 13A, 24V Output
Analytic Systems VTC305-12-24 Non-Isolated DC-DC Converter, 13A, 24V Output
Sold out
About this product
The Analytic Systems VTC305-12-24 is a non-isolated DC-DC converter designed to step up 12 VDC battery power to a range of 13.5 to 27.5 VDC, or to stabilize existing 12 or 24 VDC power systems. This unit is built for demanding marine, automotive, and aeronautical environments, offering reliable power regulation with integrated safety protections.
Key Features:
- Output: 13A, 24V (adjustable via 3-position DIP switch).
- Input Voltage: 11-15 VDC.
- Safety protections include reverse input protection, low input/output voltage alarms, over-temperature shutdown, and output overvoltage crowbar.
- Pass-through functionality with LC filtering and Schottky diode protection if input voltage exceeds the output setting.
- Construction: Open frame with heat sink bars; lead-free and RoHS compliant.
- Warranty: Three-year parts and labor.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-107785
- Model / MPN
- VTC305-12-24
- Package dimensions (H × W × L)
- 7" X 11" X 12"
- Package weight
- 4.85 lb
- Country of origin
- CANADA
Specifications
- Charger Input - Voltage
- 12v
- Charger Output - Amps
- 13a
- Charger Output Voltage
- 24v
- Type
- Analytic Systems Non Iso DC/DC Converter 13A, 24V Out, 11-15
