Brand: Analytic Systems

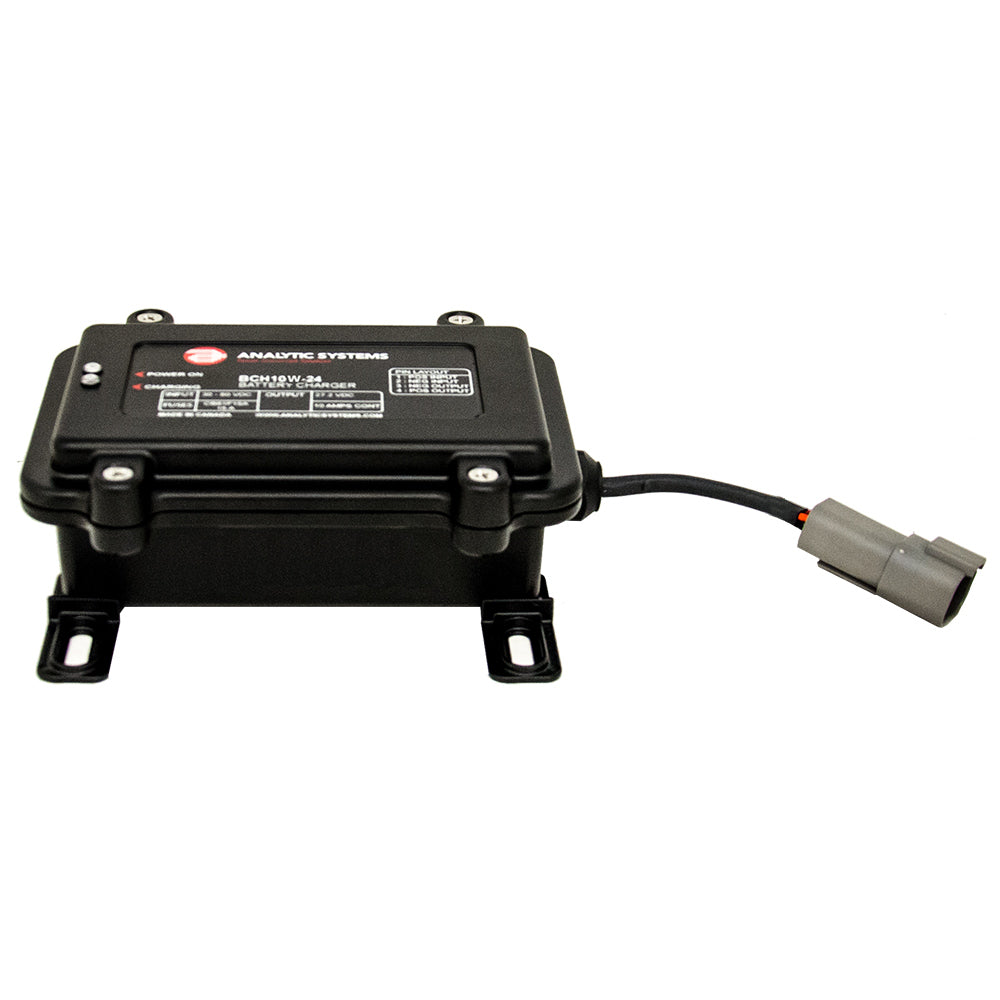

Analytic Systems BCH10W-24 Waterproof DC Battery Charger, 24V Output
Analytic Systems BCH10W-24 Waterproof DC Battery Charger, 24V Output
Last one
The Analytic Systems BCH10W-24 is a ruggedized DC battery charger designed to deliver 10 amps of output at 24 volts from an input range of 30 to 80 volts DC. This unit features an IP66-rated, watertight, and EMC-shielded enclosure, making it suitable for demanding marine, industrial, automotive, and heavy equipment environments.
Key Features and Specifications:
- Model: BCH10W-24
- Input range: 30 to 80V DC
- Output: 24V DC at 10A
- Enclosure: IP66-rated, O-ring sealed, and EMC gasketed
- Efficiency: Greater than 91%
- Connectivity: Deutsch DT04-4P connector on a pigtail cable
- Protection: Reverse input, reverse battery connection, and output over-voltage protection
- Status Indicators: LED lights for Output ON and Charging
- Operating temperature range: -40 to +55°C
- Two-year warranty on parts and labor
Product facts
- CT SKU
- CT-107788
- Model / MPN
- BCH10W-24
- Package dimensions
- 5" X 8" X 9"
- Package weight
- 2.1 lb
- Specifications
- Charger Input - Voltage = 30-80v\nCharger Output - Amps = 10a\nCharger Output Voltage = 24v\nPortable = No
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
