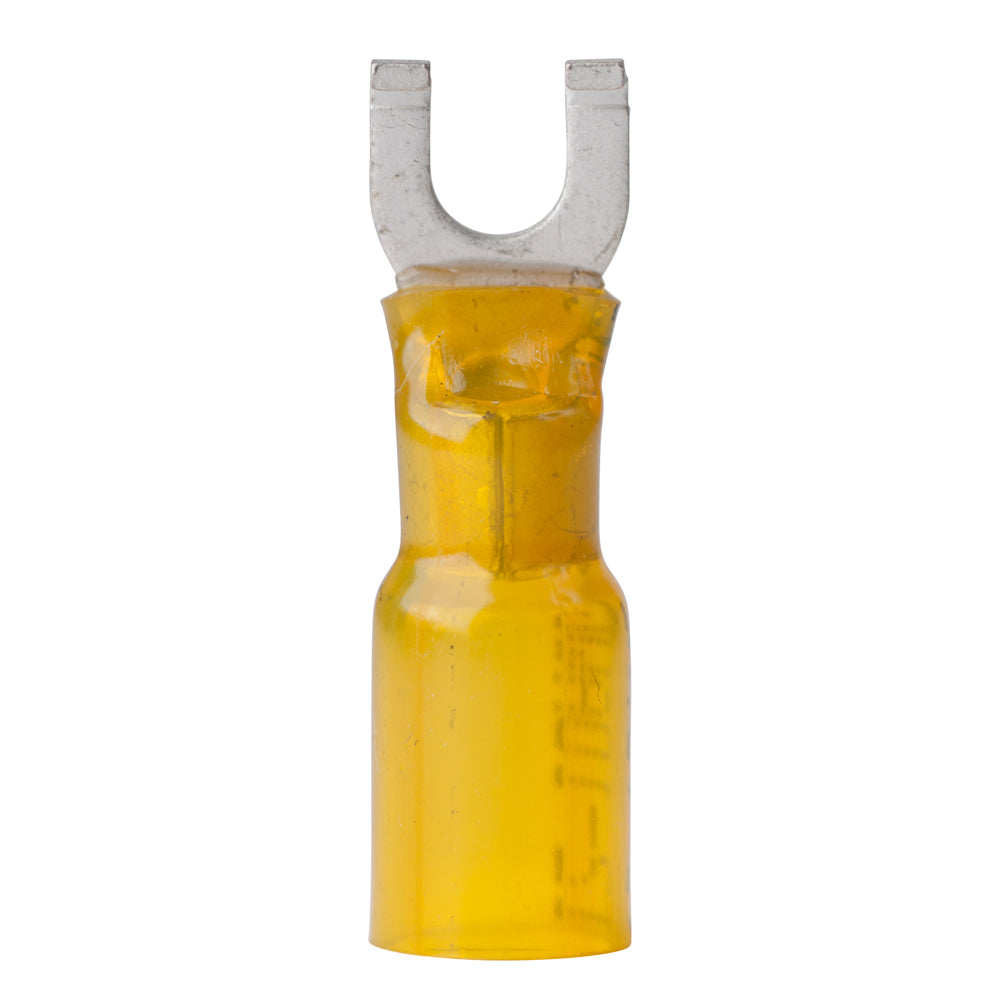

Ancor 12-10 Gauge #8 Heat Shrink Spade Terminals, 100-Pack
Ancor 12-10 Gauge #8 Heat Shrink Spade Terminals, 100-Pack
Sold out
These Ancor spade terminals are designed for reliable electrical connections in demanding marine environments. Each terminal is constructed from pure tinned copper for maximum current flow and corrosion resistance, featuring a brazed seam for increased strength.
- Wire gauge: 12-10 AWG (3-5 mm)
- Stud size: #8 (4 mm)
- Package quantity: 100
- Heat shrink tubing: Cross-linked polyolefin with heat-activated adhesive lining
- Insulation material: Nylon
- Shrink ratio: 3:1
- Shrink temperature: 257°F (125°C)
- Operating temperature range: -40°C to 110°C
- Certifications: UL Listed and CSA Recognized
The heat-activated adhesive lining provides a protective seal against salt water, oil, acids, and sunlight while offering essential strain relief. Regulatory note: This product contains chemicals, including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer and reproductive harm.
Product facts
- CT SKU
- CT-102124
- Model / MPN
- 315299
- UPC / GTIN
- 091887318524
- Package dimensions
- 1" X 3" X 8"
- Package weight
- 0.5 lb
- Specifications
- Gauge = 12-10 AWG\nType = Spade connectors\nPackage Qty = 100\nHeat Shrink = Yes
