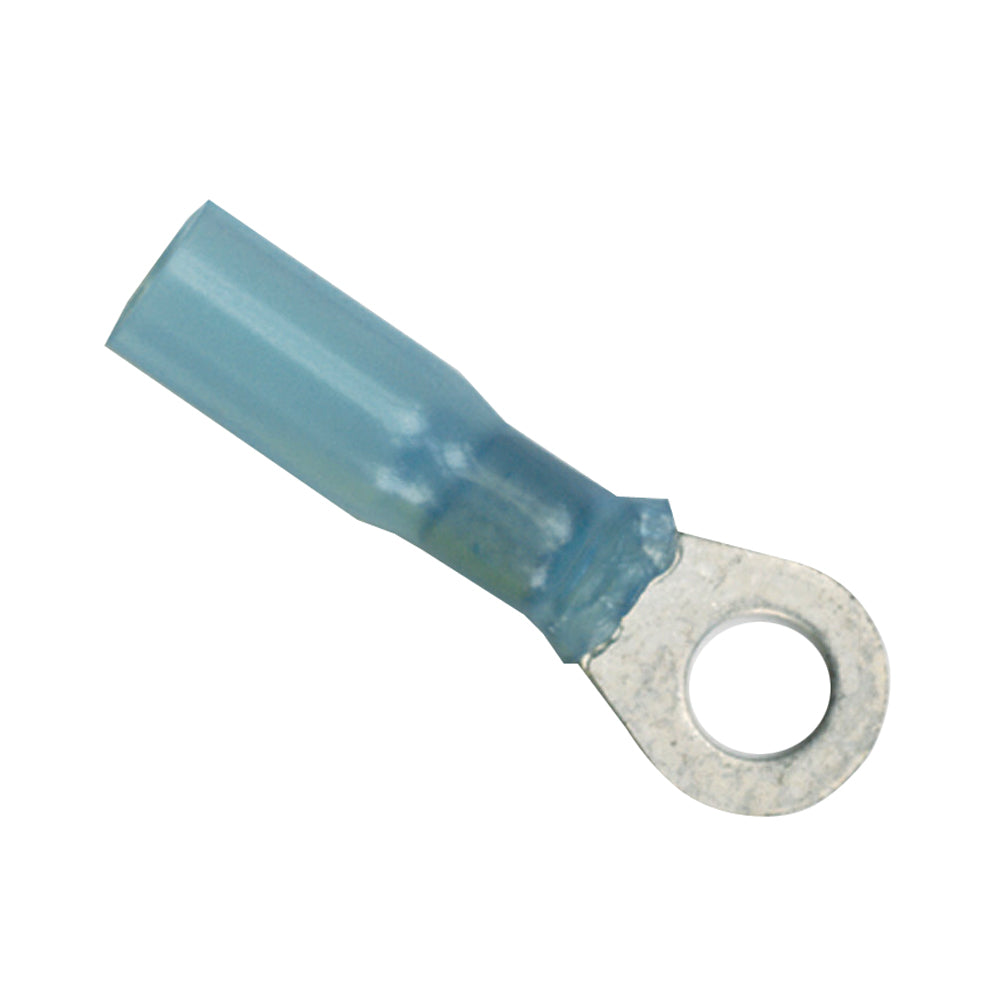

Ancor Marine Grade Heat Shrink Ring Terminals, 16-14 Gauge, 5/16", 100-Pack

Ensure robust and waterproof electrical connections with Ancor Marine Grade Heat Shrink Ring Terminals. Engineered for superior performance in demanding marine, automotive, and heavy-duty electrical systems, these terminals feature heat-activated adhesive that creates an impervious, watertight seal, providing ultimate vibration and strain relief. Trust Ancor for secure, long-lasting power connections.

In the Box:

• 100x Ancor 16-14 Gauge - 5/16" Heat Shrink Ring Terminals

Key Benefits & Specifications:

• Optimized Conductivity: Made from pure, tinned copper for maximum current flow and exceptional corrosion resistance in harsh environments.
• Superior Durability: Features cross-linked polyolefin tubing, which is significantly stronger and more fire-resistant than standard PVC, preventing burning.
• Marine-Grade Insulation: Nylon insulator offers enhanced resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, ensuring reliability in demanding conditions.
• Secure Seal: Heat-activated adhesive lining creates an impervious, watertight seal, protecting connections from salt water, oil, acids, and sunlight.
• High Performance: Achieves a 1/3 original size shrink ratio when heated to 257°F (125°C).
• Wide Temperature Range: Operates reliably in temperatures from -40°C to 110°C.
• Maximum Strength: Designed with a brazed seam to withstand extreme stress and vibration.
• Certified Safety: UL Listed and CSA Recognized for peace of mind.
• Easy Identification: Features a silver end with a blue boot for quick and simple gauge identification.

Compatibility:

• Designed for 16-14 AWG wire range.
• Compatible with 5/16" screw or stud sizes.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
