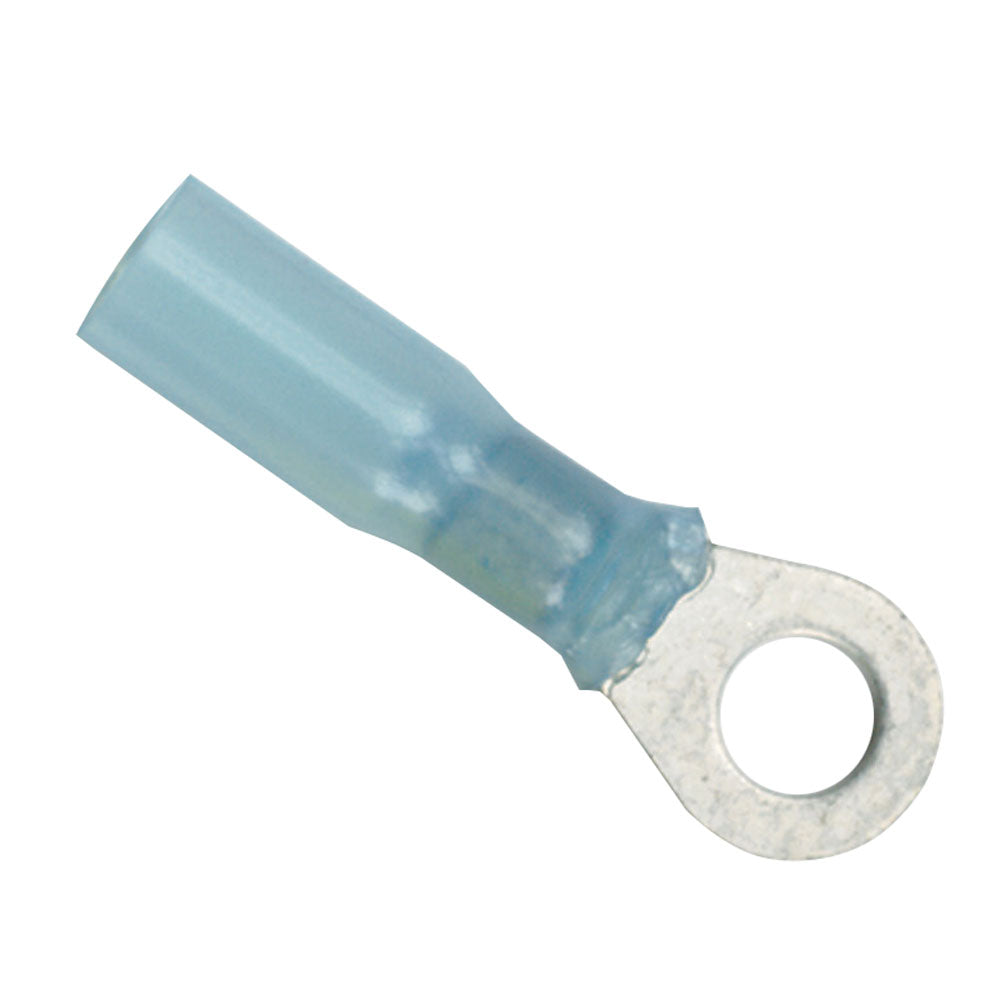

Ancor Heat Shrink Ring Terminals, 16-14 AWG #8, 100-Pack

Ensure robust and waterproof electrical connections in the most demanding environments with Ancor Heat Shrink Ring Terminals. Engineered specifically for marine-grade applications, these terminals provide superior protection against salt water, oil, acids, and sunlight, while delivering maximum current flow and vibration resistance. Upgrade your electrical system for unmatched peace of mind.

In the Box:

• 100 Ancor 16-14 Gauge #8 Heat Shrink Ring Terminals

Key Features & Benefits:

• Optimized Conductivity: Constructed from pure tinned copper, ensuring maximum current flow and exceptional corrosion resistance for long-lasting performance.
• Superior Strength: Features a brazed seam design that offers maximum mechanical strength, preventing breakage and ensuring reliable connections.
• Watertight Seal: Equipped with a heat-activated adhesive lining that melts and flows to create an impervious seal against saltwater, oil, acids, and sunlight, effectively preventing corrosion and strain relief.
• Durable Insulation: Utilizes cross-linked polyolefin tubing, which is significantly stronger than standard PVC, resisting burning and offering superior protection against environmental factors.
• Marine-Grade Reliability: Features marine-grade nylon insulation, preferred by experts, providing robust resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, ensuring easy crimping without splitting.
• Certified Performance: UL Listed and CSA Recognized (UL 486A/C) to guarantee compliance with stringent safety and performance standards.
• High Shrink Ratio: Achieves a 1/3 original size shrink ratio, providing a tight, secure fit.
• Wide Temperature Range: Operates effectively in temperatures ranging from -40°C to 110°C, with a shrinking temperature of 125°C (257°F), suitable for diverse conditions.

Compatibility & Pairings:

• Designed for 16-14 AWG (American Wire Gauge) wires.
• Compatible with #8 screw size connections.
