Brand: Ancor

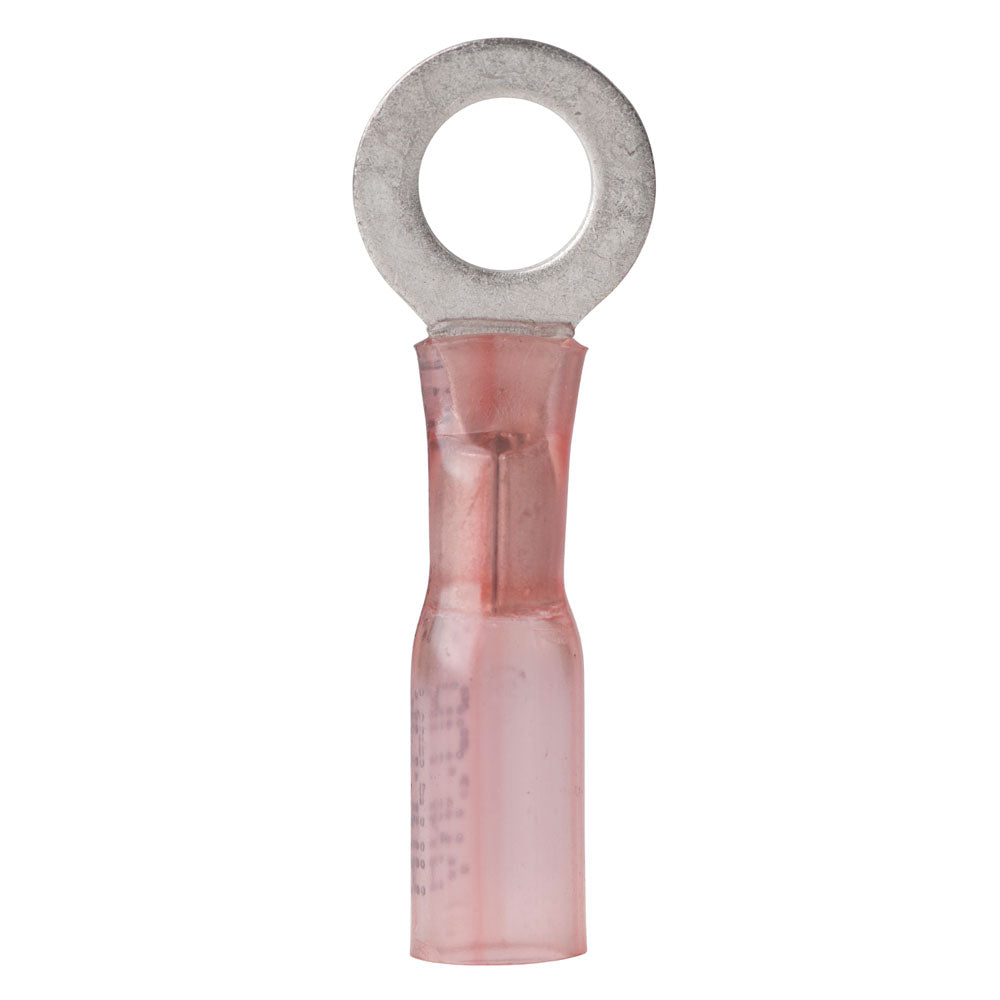

Ancor 22-18 AWG #10 Heat-Shrink Ring Terminals, 3-Pack
Ancor 22-18 AWG #10 Heat-Shrink Ring Terminals, 3-Pack
10 available
About this product
Ancor #10 heat-shrink ring terminals are made for 22-18 AWG wire and provide a sealed connection for marine and vehicle electrical applications.
- Type: Ring terminals
- Wire range: 22-18 AWG
- Post size: #10
- Quantity: 3
- Cross-linked polyolefin tubing with heat-activated adhesive lining helps seal against salt water, oil, acids, and sunlight while providing strain relief.
- Nylon insulation resists sunlight, water, oil, chemicals, vibration, and cut-through damage.
- Tinned pure copper construction offers corrosion resistance and current flow; the seam is brazed for strength.
- Shrink ratio: 3:1; shrinks at 257 deg F/125 deg C.
- Operating temperature range: 40 deg C to 110 deg C.
- UL Listed and CSA Recognized.
- Manufacturer part number: 310303
- UPC: 091887318302
- Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. See P65Warnings.ca.gov for more information.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-103798
- Model / MPN
- 310303
- UPC / GTIN
- 091887318302
- Package dimensions (H × W × L)
- 1" X 2" X 4"
- Package weight
- 0.02 lb
- Country of origin
- UNITED STATES
Specifications
- Gauge
- 22-18 AWG
- Heat Shrink
- Yes
- Type
- Ring Terminals
- Post Size
- #10
- Package Qty
- 3
