Ancor 22-18 AWG Heat Shrink Ring Terminals, #8 Stud, 25-Pack
Ancor 22-18 AWG Heat Shrink Ring Terminals, #8 Stud, 25-Pack
Sold out
About this product

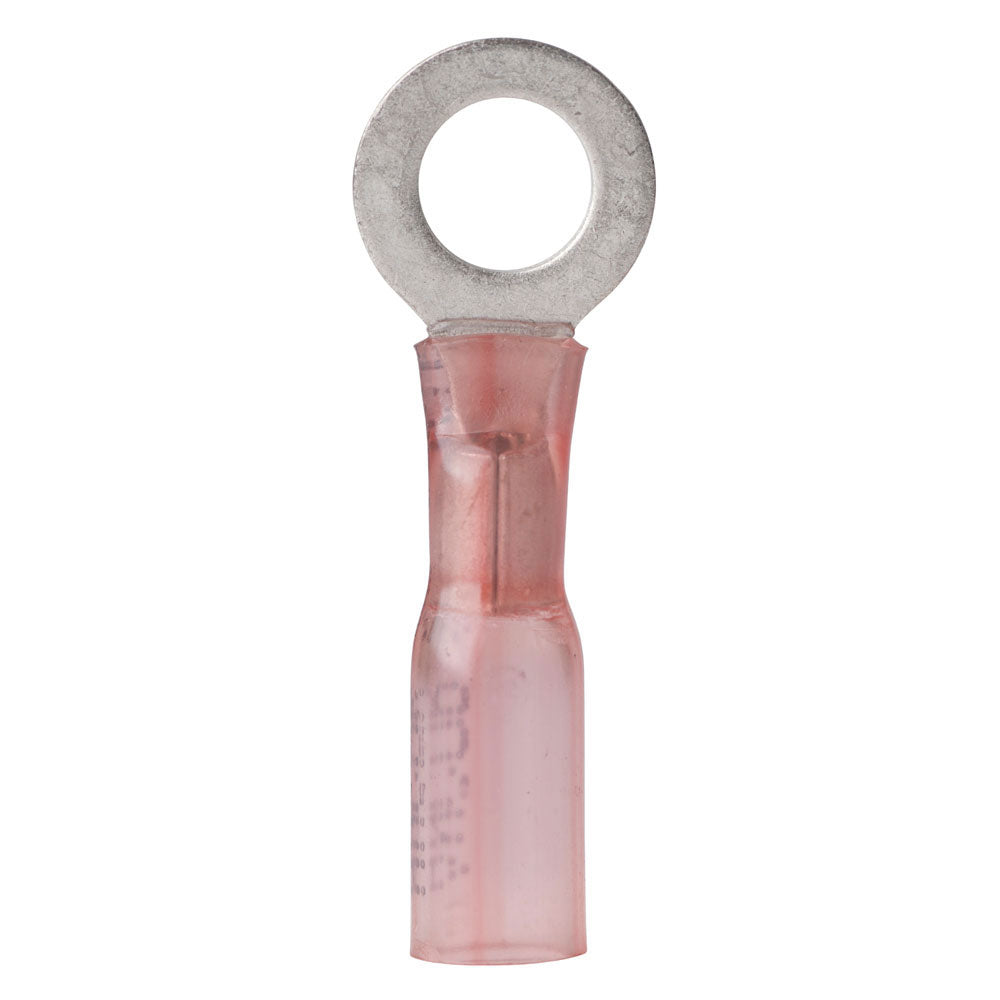

These Ancor heat shrink ring terminals are designed for reliable electrical connections in demanding marine environments. Each terminal is constructed from tinned pure copper for maximum current flow and corrosion resistance, featuring a brazed seam for added strength.
- Wire gauge: 22-18 AWG (0.3-0.8 mm)
- Stud size: #8
- Quantity: 25 terminals per package
- Cross-linked polyolefin tubing is stronger than PVC and provides a heat-activated adhesive seal against saltwater, oil, acids, and UV exposure
- Nylon insulation protects against vibration, chemicals, and cut-through damage
- Shrinks to 1/3 of its original size at 257°F (125°C)
- Operating temperature range: -40°C to 110°C
- UL Listed and CSA Recognized
- Regulatory note: This product contains di(2-ethylhexyl)phthalate (DEHP), a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-103812
- Model / MPN
- 310225
- UPC / GTIN
- 091887316278
- Package dimensions (H × W × L)
- 1" X 3" X 5"
- Package weight
- 0.07 lb
- Country of origin
- UNITED STATES
Specifications
- Gauge
- 22-18 AWG
- Heat Shrink
- Yes
- Type
- Ring Terminals
- Post Size
- #8
- Package Qty
- 25
