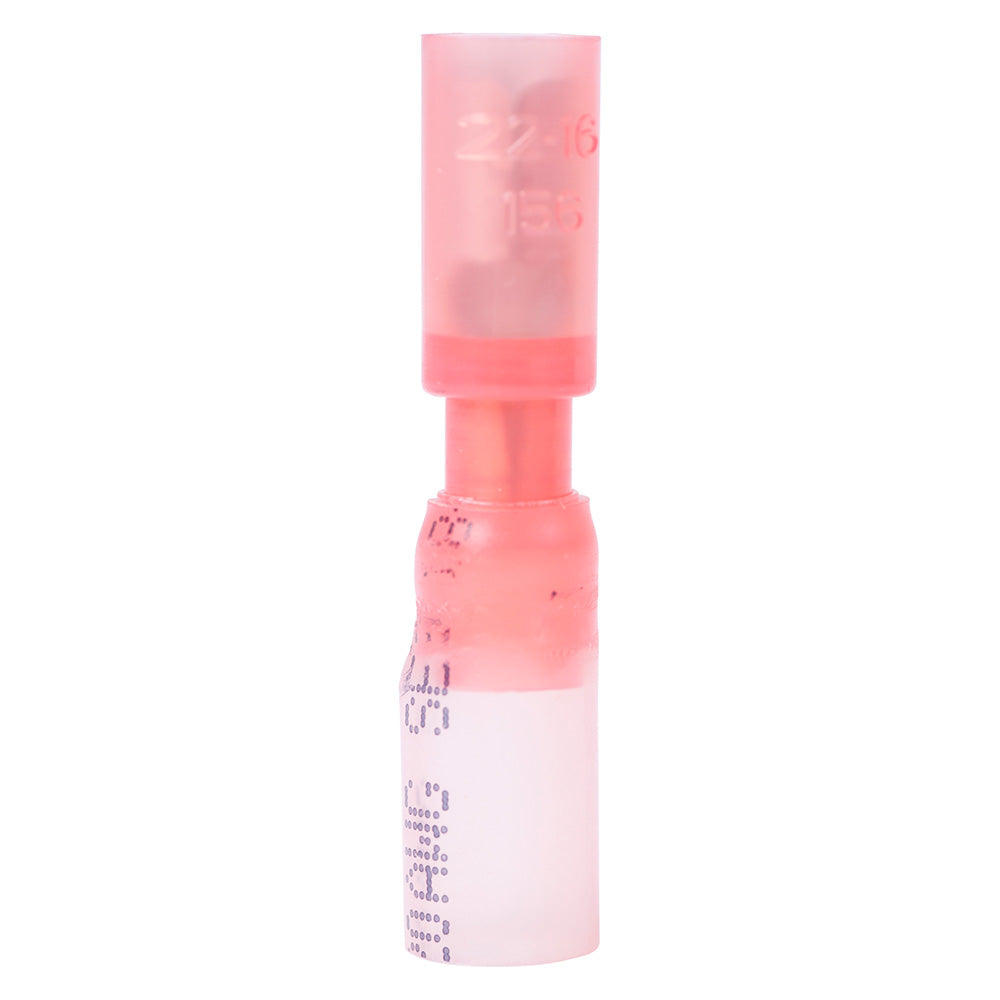

Ancor Heat Shrink Female Snap Plugs, 22-18 AWG, 25-Pack – UL Listed

Achieve superior electrical connections in the most demanding environments with Ancor Heat Shrink Female Snap Plugs. Engineered for marine and automotive applications, these connectors feature heat-activated adhesive that creates an impenetrable, watertight seal, safeguarding your electrical system from moisture, vibration, and corrosion. Trust in Ancor's commitment to quality for durable, long-lasting performance. Upgrade your wiring connections today.

In the Box:

• 25 Ancor Heat Shrink Female Snap Plugs

Key Benefits & Features:

• Watertight Seal: Heat-activated adhesive built into the sleeve ensures a complete, impervious seal against salt water, oil, acids, and sunlight, while providing ultimate vibration and strain relief.
• Superior Conductivity: Constructed from tinned pure copper to deliver maximum current flow with minimal resistance and exceptional corrosion resistance in harsh conditions.
• Enhanced Durability: Features a brazed seam for maximum strength, ensuring connections withstand rigorous use and demanding environments.
• Marine-Grade Insulation: Nylon insulator offers robust resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, preferred by experts for marine applications.
• Advanced Tubing: Cross-linked polyolefin tubing is significantly stronger than PVC and will not burn, providing superior protection and safety.
• High Shrink Ratio: Shrinks to 1/3 of its original size at 257°F (125°C) for a tight, secure fit.
• Broad Operating Temperature: Performs reliably across a wide operating temperature range from 40°C to 110°C.
• Certified Safety: UL Listed and CSA Recognized, guaranteeing high standards of safety and reliability for your electrical system.
• Optimized Wire Range: Specifically designed for 22-18 AWG wire, ensuring a precise and secure connection.

Recommended Pairings: For optimal installation, use with an Ancor heat gun and a quality crimping tool.
