Brand: Ancor

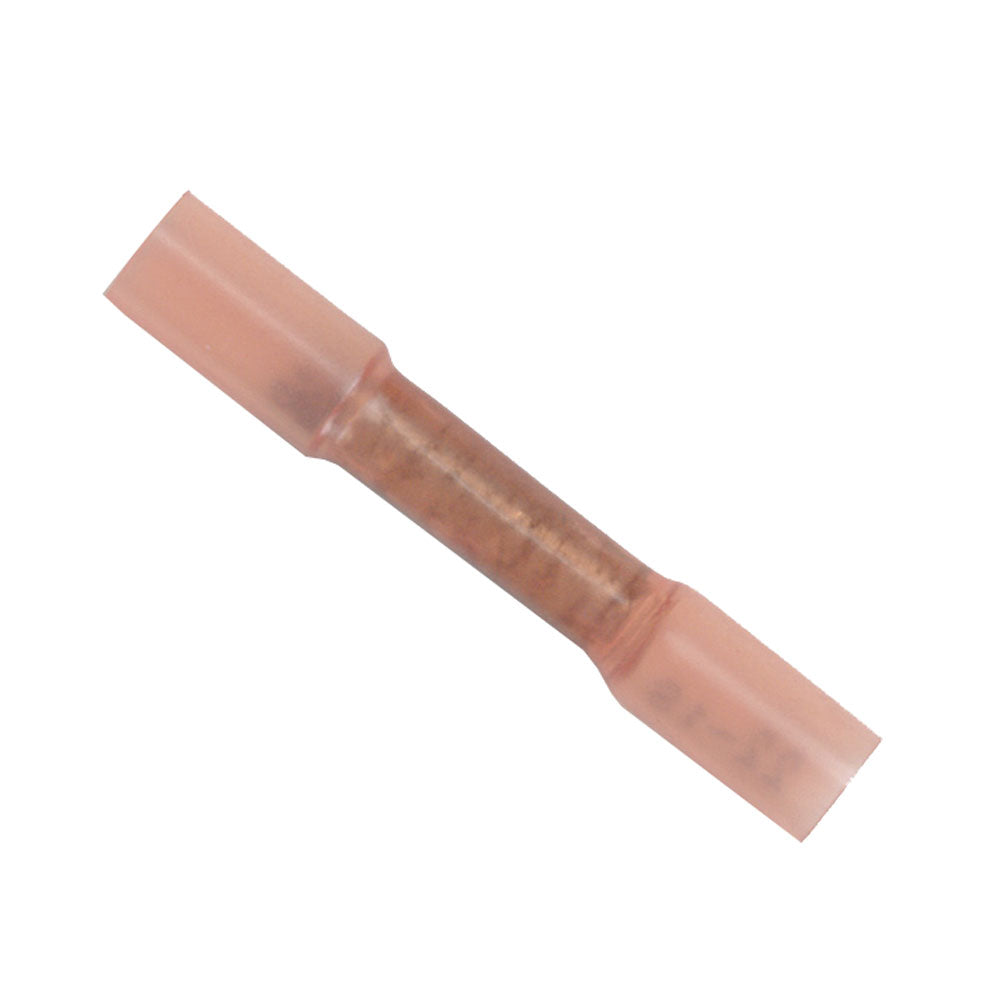

Ancor 22-18 AWG Heat Shrink Butt Connectors, 25-Pack
Ancor 22-18 AWG Heat Shrink Butt Connectors, 25-Pack
4 available
These Ancor heat shrink butt connectors are designed for marine electrical applications, providing a secure, water-tight seal and excellent vibration and strain relief. Constructed from pure copper with a tinned finish, these connectors offer maximum current flow and corrosion resistance.
- Wire range: 22-18 AWG (0.3 - 0.8 mm)
- Package quantity: 25
- Cross-linked polyolefin tubing offers superior strength and heat resistance compared to PVC
- Heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and UV rays
- Nylon insulator provides resistance to chemicals, vibration, and cut-through damage
- Brazed seam design for enhanced strength
- Shrink ratio: 3:1
- Shrink temperature: 257 deg. F (125 deg. C)
- Operating temperature range: -40 deg. C to 110 deg. C
- UL Listed and CSA Recognized
- Regulatory note: This product contains chemicals, including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer and reproductive harm.
Product facts
- CT SKU
- CT-103768
- Model / MPN
- 309025
- UPC / GTIN
- 091887303421
- Package dimensions
- 1" X 4" X 4"
- Package weight
- 0.08 lb
- Specifications
- Gauge = 22-18 AWG\nHeat Shrink = Yes\nType = Butt Connectors\nPackage Qty = 25
