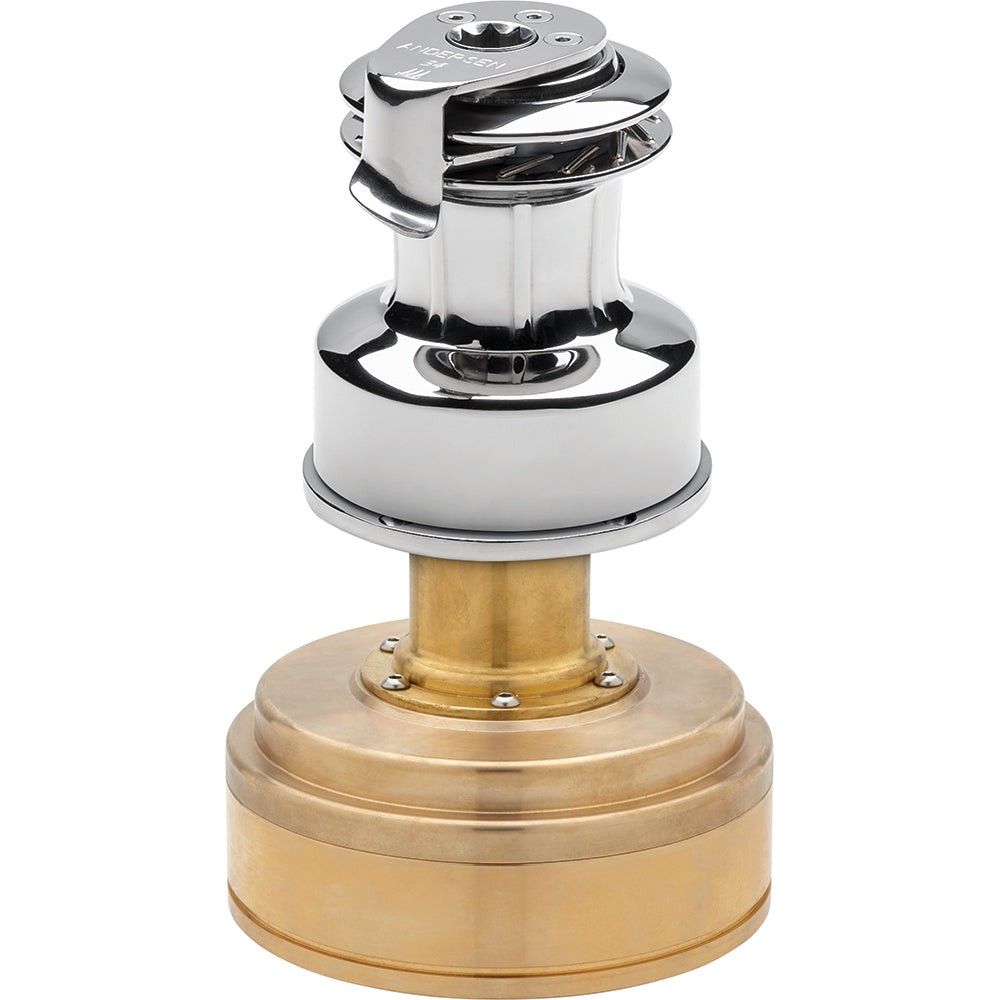

Andersen 34ST Compact Below Deck Electric Winch, 12V

The Andersen 34ST Compact Below Deck Electric Winch provides effortless sail hoisting and trimming with the convenience of a 12V variable-speed motor. Designed for seamless integration, this unit features a brushless DC motor and a low-profile planetary gearbox housed in a compact, all-in-one assembly that eliminates the need for an external control box.

Key Features:

• Variable speed operation based on push-button pressure for smooth, quiet control.
• Stainless steel Power Rib drum ensures high grip and extended line life.
• Self-tailing device automatically accommodates lines ranging from 5/16 in. to 9/16 in. (8-14 mm).
• Integrated overload protection and thermal cutout for system safety.
• IP67-rated illuminated push button with a hinged safety cover and status-code diagnostic feedback.
• Simple electrical installation with direct connection to motor terminals.

Specifications:

• Drum Diameter: 2-3/4 in. (70 mm)
• Base Diameter: 4-15/16 in. (125 mm)
• Height: 6-3/16 in. (157 mm)
• Line Entry Height: 2-7/8 in. (73 mm)
• Maximum Deck Thickness: 2-1/8 in. (54 mm)
• Motor Dimensions: 7-1/16 in. depth; 7-11/16 in. overall height
• Weight: 37.5 lbs. (17 kg)
• Part Number: RA2034014100
