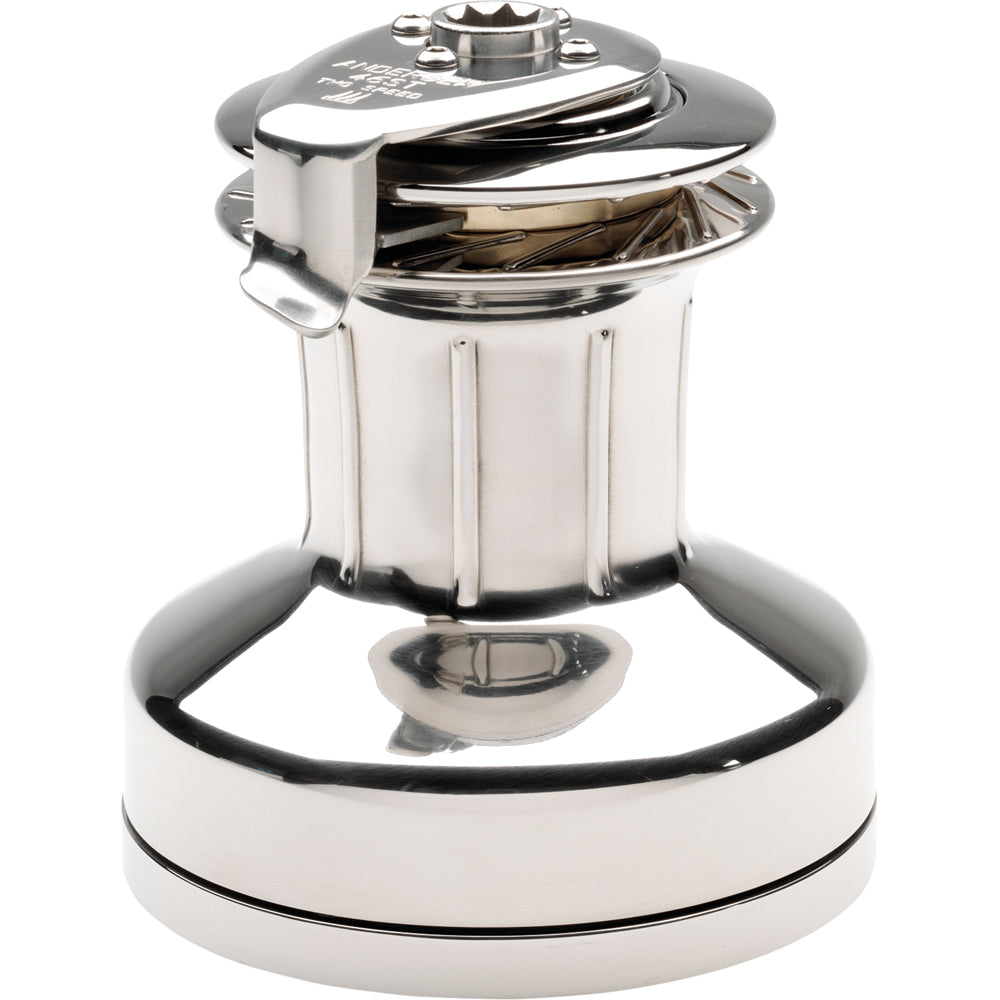

Andersen 46 ST FS 2-Speed Self-Tailing Manual Winch, Full Stainless Steel

The Andersen 46 ST FS is a 2-speed, self-tailing manual winch featuring a full stainless steel construction for high durability and a polished, reflective finish. Designed for performance and longevity, this winch incorporates the signature Power Rib drum, which uses vertical ribs to provide a secure grip on the line with minimal wear on ropes compared to abrasive finishes.

Key Features and Specifications:

• Model: 46 ST FS
• Material: Grade 316L stainless steel drum, grade 329 duplex stainless steel drive shafts, and aluminum bronze center stem.
• Self-Tailing: Stainless steel jaws automatically adjust to accommodate line sizes from 8-14mm (1/8 - 11/16 in.).
• Rotatable Arm: Self-tailing arm rotates 360 degrees for flexible positioning.
• Power Ratios: 15.7:1 (1st speed) and 47.1:1 (2nd speed).
• Gear Ratios: 2.8:1 (1st speed) and 8.4:1 (2nd speed).
• Drum Diameter: 75mm (3-1/2 in.).
• Base Diameter: 152mm (7-1/16 in.).
• Height: 174mm (8-1/4 in.).
• Line Entry Height: 71mm (3-9/16 in.).
• Weight: 4.9kg (17.2 lbs.).

Each unit features high-efficiency stainless steel roller and ball bearings to minimize friction under load. Maintenance is straightforward, typically required every two years under normal conditions. Manufacturer Part Number: RA2046010000.
