• ARCO Marine Zeus 24V 4kW LTO Alternator, Isolated Ground, SAE J1171 Certified
  • ARCO Marine Zeus 24V 4kW LTO Alternator, Isolated Ground, SAE J1171 Certified
1 2

Brand: ARCO Marine

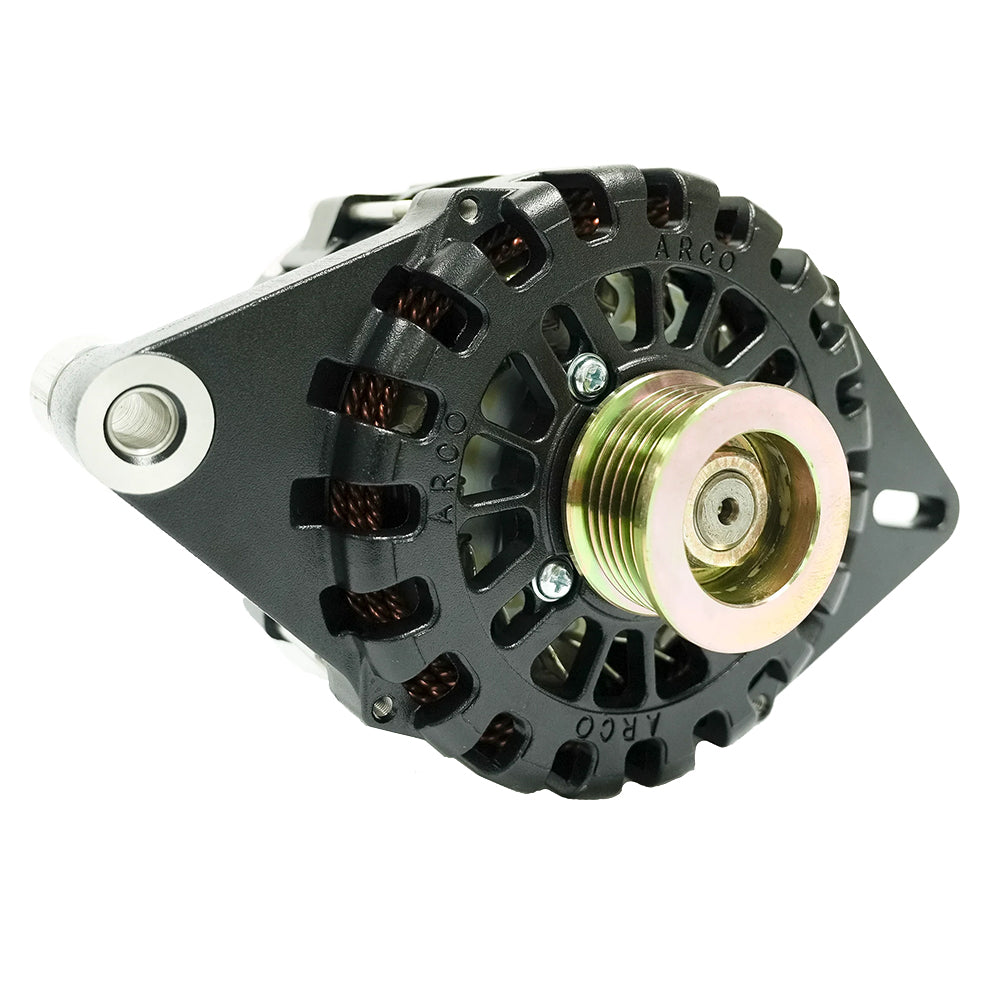

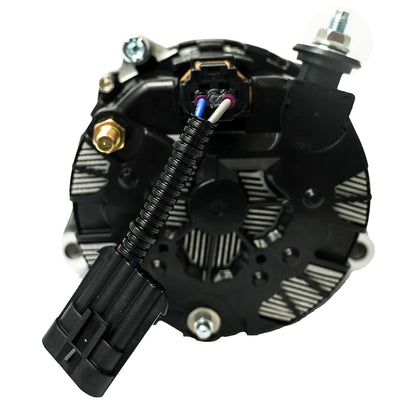

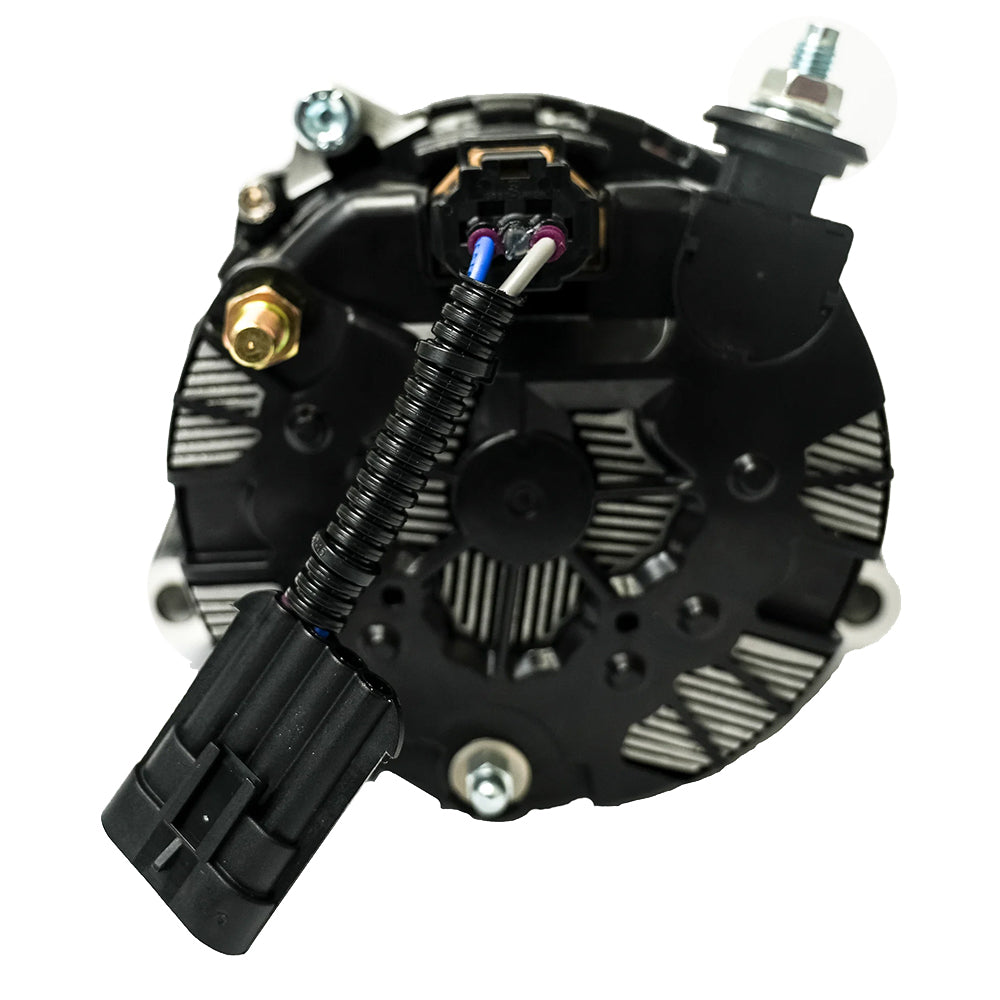

ARCO Marine Zeus 24V 4kW Low Turn On Alternator, Isolated Ground

ARCO Marine Zeus 24V 4kW Low Turn On Alternator, Isolated Ground

$1,427.80
$1,427.80
Sale Sold out
Shipping calculated at checkout.

Sold out

About this product

The ARCO Marine Zeus 24V 4kW Low Turn On (LTO) alternator is engineered for high-output power generation in marine, RV, military, and commercial applications. By utilizing a native 24V rotor and field current rather than a 12V design, this alternator provides increased efficiency and runs at cooler operating temperatures to help extend product lifespan.

Key Features and Specifications:

  • Mounting: 1"-2" single foot, designed to replace common domestic styles like Motorola and Prestolite.
  • Performance: Designed for rapid battery bank charging; delivers up to 3,960 watts at 9,000 RPM.
  • Cooling Technology: Includes heat-shedding E-Coat/Cerakote finish, dual cooling fans, and an externally mounted rectifier.
  • Technical Specs: 24V voltage, 16 rotor poles, and 138mm stator.
  • Operating Parameters: Cut-in at 1,072 alternator RPM; 100°C (212°F) max continuous operating temperature.
  • Compliance: SAE J1171 certified and proudly made in the U.S.A.
  • Included Hardware: M17 x 1.5 x 24mm nut and 18mm ID x 29mm OD washer.

This unit requires an external regulator for operation. For optimal performance, especially when charging lithium battery banks, use with the ARCO Zeus Bluetooth Alternator Regulator.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-118054
Model / MPN
4405
UPC / GTIN
634707023552
Package dimensions (H × W × L)
9" X 10" X 10"
Package weight
16.24 lb
