Brand: ARCO Marine

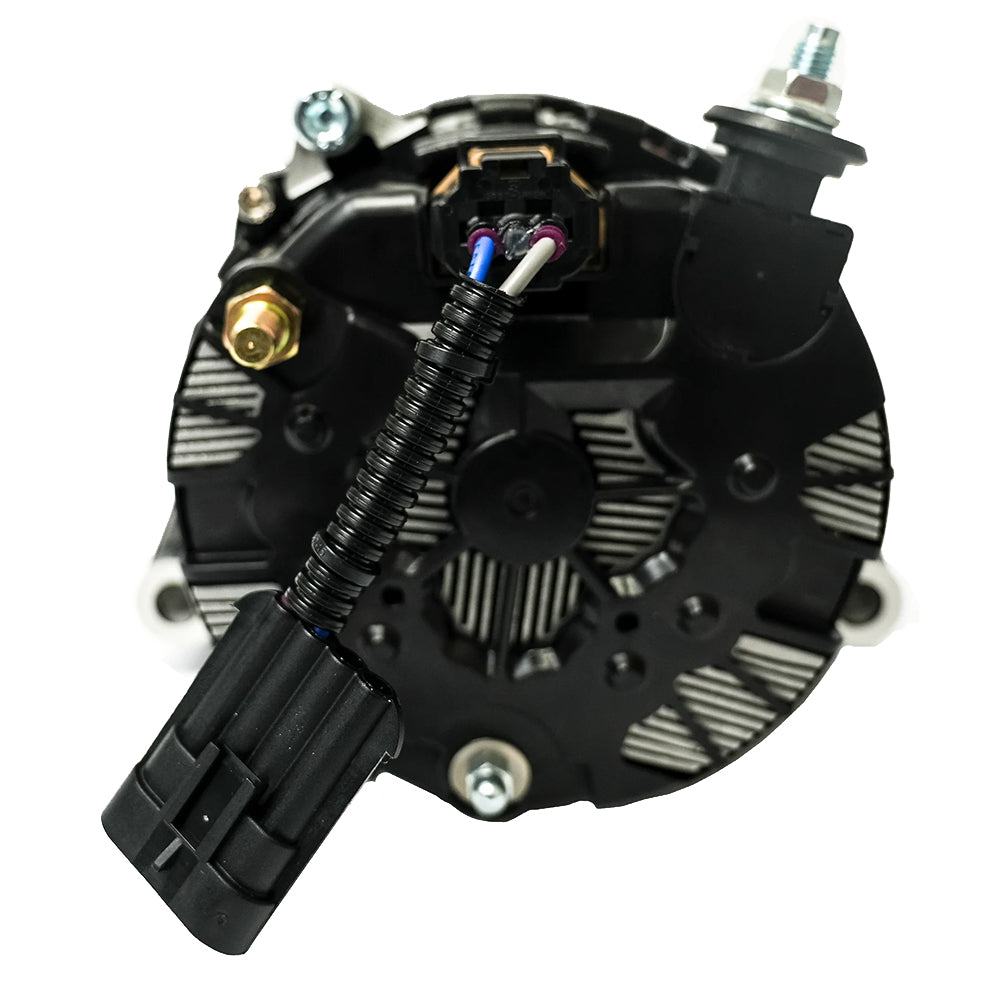

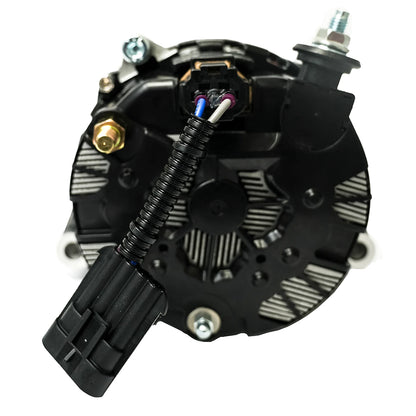

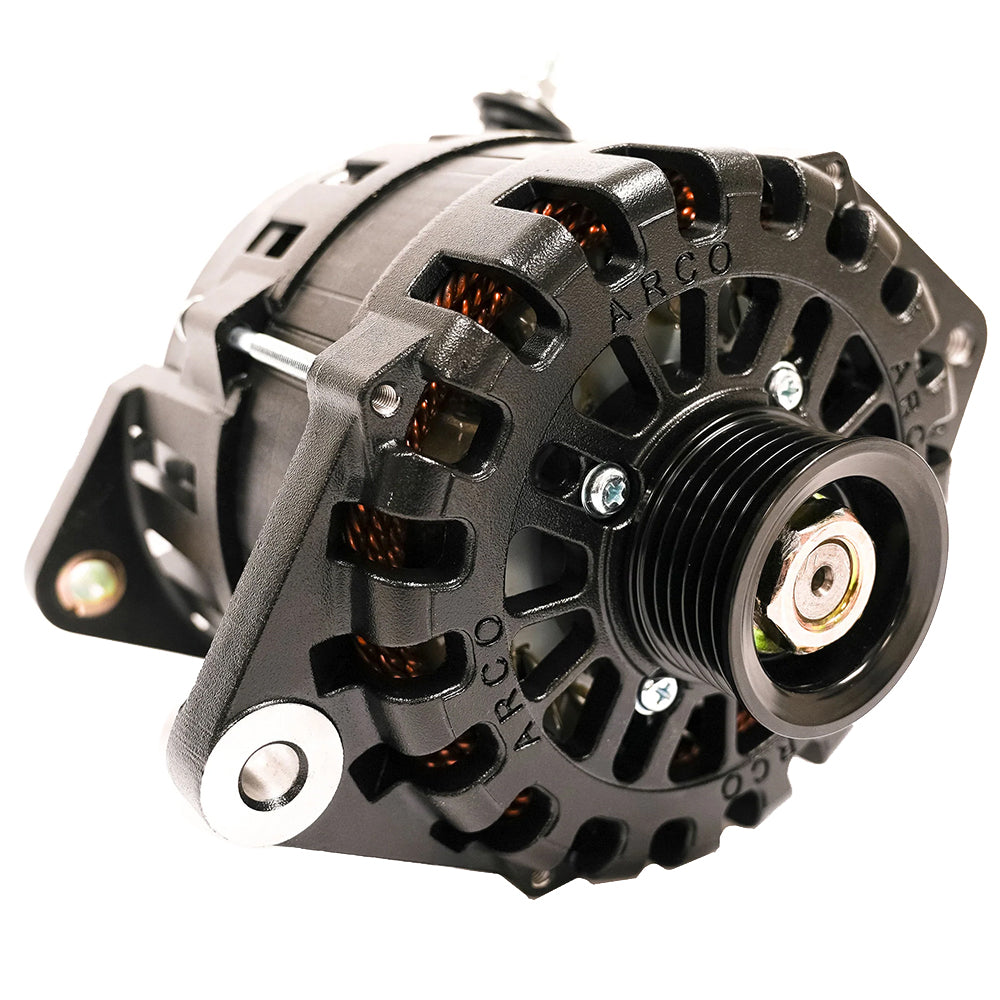

ARCO Marine Zeus 24V 4kW Low Turn On Alternator, Isolated Ground

ARCO Marine Zeus 24V 4kW Low Turn On Alternator, Isolated Ground

$1,427.80
$1,427.80
Sale Sold out
Shipping calculated at checkout.

Sold out

About this product

The ARCO Marine Zeus 24V 4kW Low Turn On (LTO) Alternator is engineered for high energy production in marine, RV, military, and commercial applications. Utilizing a native 24V rotor and field current, this alternator runs cooler and more efficiently than 12V-based designs, supporting rapid charging for large battery banks and reducing reliance on onboard generators.

Key Features:

  • Designed for Yanmar Common Rail engines (JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, 4JH110) introduced after 2013
  • Isolated ground configuration
  • Heat-shedding E-coat/Cerakote finish, dual cooling fans, and exterior-mounted rectifier for thermal management
  • SAE J1171 certified and made in the U.S.A.
  • Requires external regulation (optimized for use with ARCO Zeus Bluetooth regulators)

Technical Specifications:

  • Voltage: 24V
  • Weight: 15.89 lbs
  • Cut-in RPM: 1,072 alternator RPM
  • Max Continuous Operating Temperature: 212°F (100°C)
  • Stator Size: 138mm
  • Rotor Poles: 16
  • Pulley: 49K6 (6-groove, 49mm) included with mounting hardware
  • Battery Post: M8 side-mount
  • Model: 4402

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-118051
Model / MPN
4402
UPC / GTIN
634707418846
Package dimensions (H × W × L)
9" X 10" X 10"
Package weight
16.35 lb

Specifications

Type
ARCO Marine Zeus 24V 4kW Low Turn On (LTO) 3.15 Alternator w
