• ARCO Marine Zeus 24V 7kW Alternator – SAE J1171 Certified, Made in USA
  • ARCO Marine Zeus 24V 7kW Alternator – SAE J1171 Certified, Made in USA
1 2

Brand: ARCO Marine

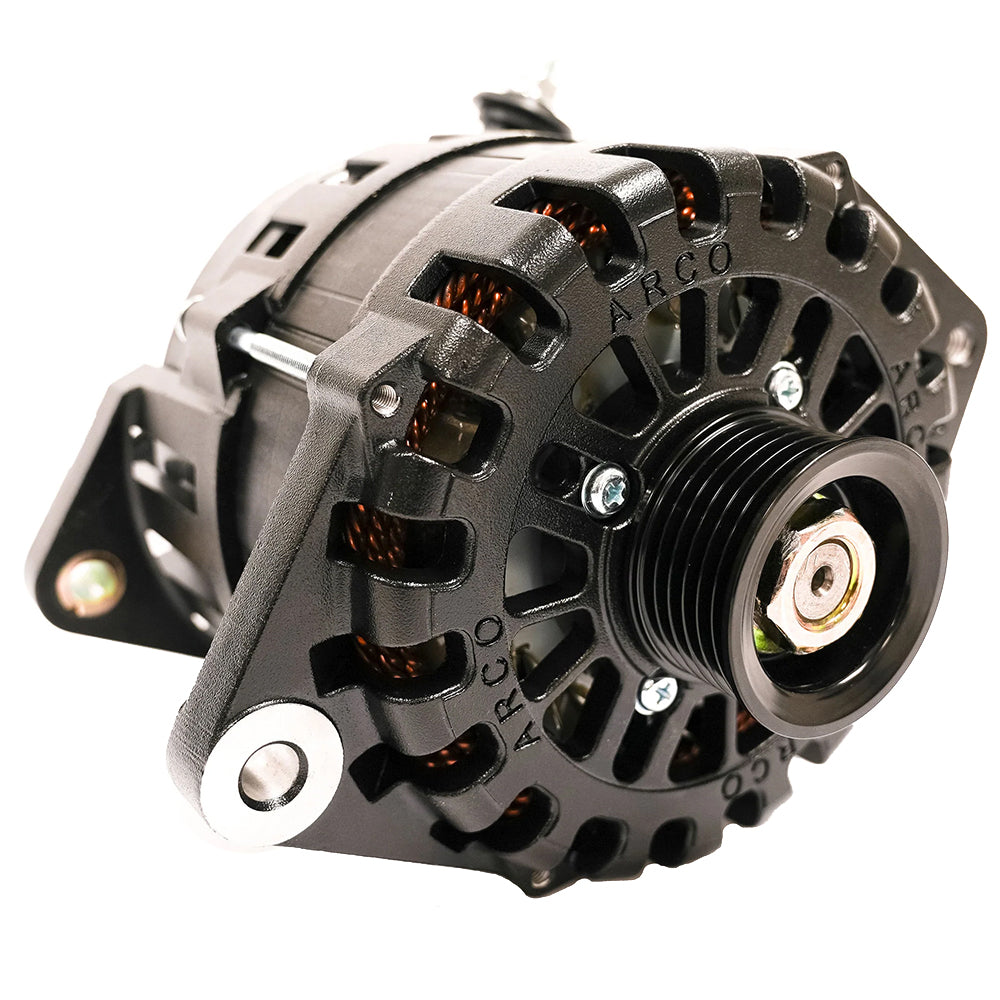

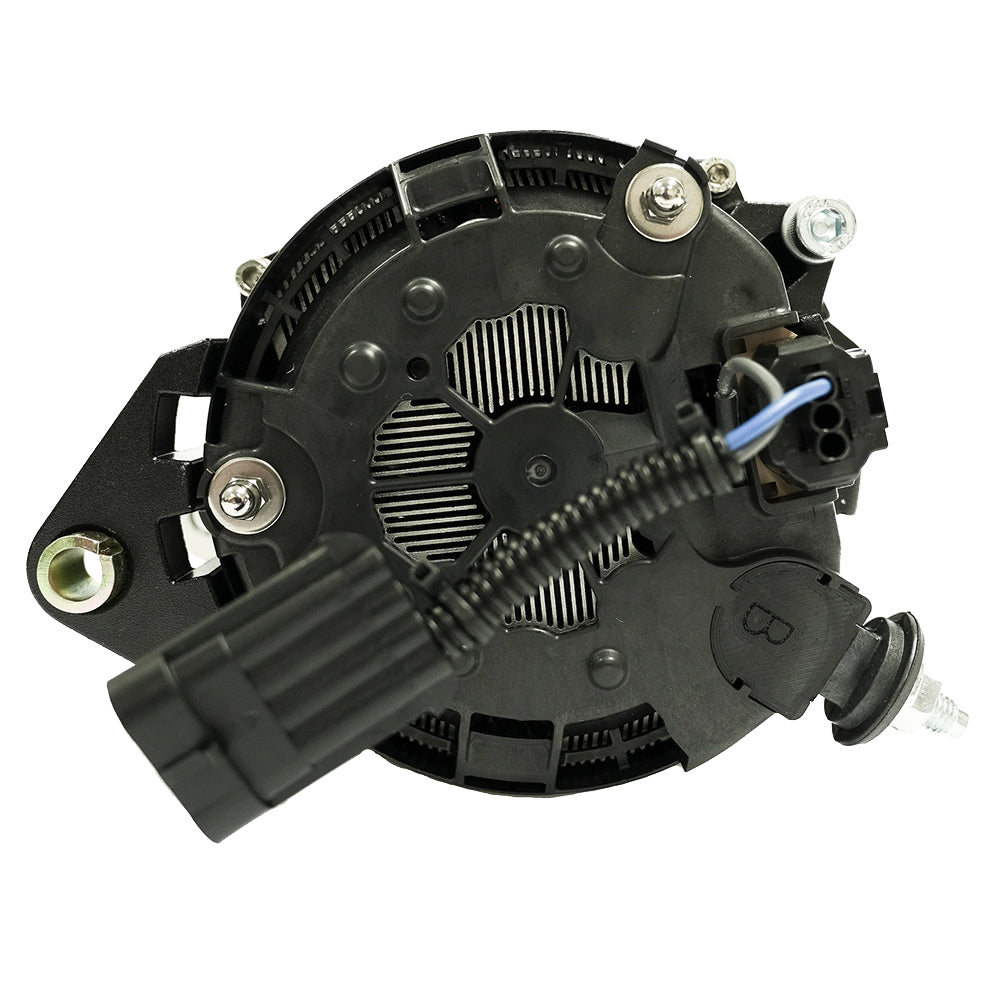

ARCO Marine Zeus 24V 7kW Alternator, 3.15 in. J180 Mount

ARCO Marine Zeus 24V 7kW Alternator, 3.15 in. J180 Mount

$1,427.80
$1,427.80
Sale Sold out
Shipping calculated at checkout.

Sold out

About this product

The ARCO Marine Zeus 24V 7kW Alternator is engineered for high-energy production in marine, RV, military, and commercial applications. Utilizing a native 24V rotor and field current, this unit operates cooler than designs using 12V components to support increased performance and a longer service life. It features a 3.15” J180 saddle-style mount, making it compatible with many small-case alternators, such as those found in Yanmar engines.

Key Features and Specifications:

  • Output: 284 Amps at 9,000 RPM (cold); 220 Amps at 6,000 RPM (hot).
  • Mounting: 3.15” J180 saddle style.
  • Voltage: 24V with external regulation required.
  • Cooling: Dual fans, rectifier mounted on exterior, and heat-shedding E-Coat finish.
  • Design: 16-rotor poles with 138mm stator size.
  • Weight: 15.89 lbs.
  • Certification: SAE J1171 certified.
  • Includes: M17 x 1.5 x 24mm mounting nut and washer.
  • Origin: Made in the U.S.A.

For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator. Note that this unit is designed for external regulation only.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-118060
Model / MPN
4501
UPC / GTIN
612461536419
Package dimensions (H × W × L)
9" X 10" X 10"
Package weight
16.4 lb

Specifications

Type
ARCO Marine Zeus 24V 7kW 3.15 Alternator w/Isolated Ground

Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
