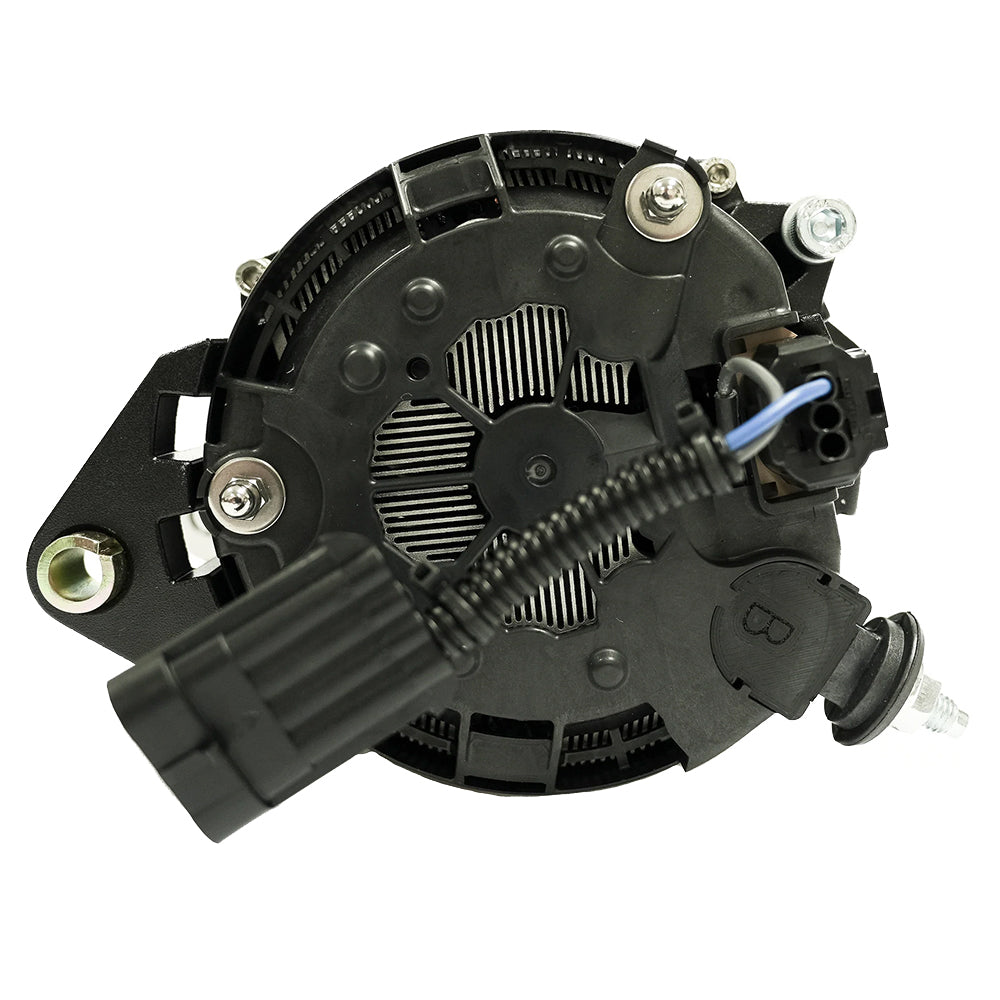

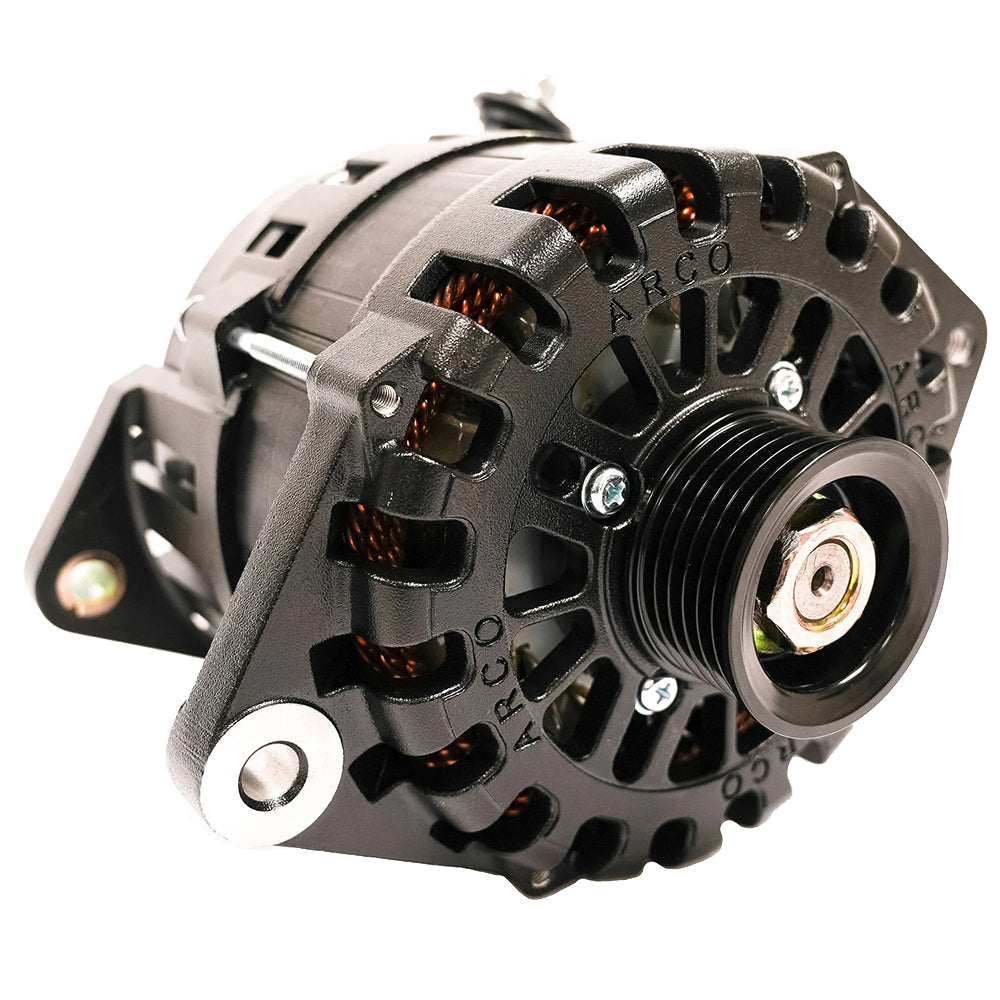

• ARCO Marine Zeus 24V 7kW Alternator, Isolated Ground for Common Rail
  • ARCO Marine Zeus 24V 7kW Alternator, Isolated Ground for Common Rail
1 2

Brand: ARCO Marine

ARCO Marine Zeus 24V 7kW Isolated Ground Alternator (4502)

ARCO Marine Zeus 24V 7kW Isolated Ground Alternator (4502)

$1,427.80
$1,427.80
Sale Sold out
Shipping calculated at checkout.

Last one

About this product

The ARCO Marine Zeus 24V 7kW Alternator with isolated ground is engineered for high-energy production in marine, RV, military, and commercial applications. This performance-focused unit features a native 24V rotor and field current, allowing it to run cooler and more efficiently than 12V-based competitors while providing sustained power for large battery banks.

  • Engineered for longevity: Utilizes dual cooling fans, a heat-shedding E-Coat finish, and an externally mounted rectifier to maintain performance at operating temperatures up to 100°C (212°F).
  • Certified performance: SAE J1171 certified and proudly made in the U.S.A.
  • Technical specifications: Frame size: Large; Rotor poles: 16; Stator size: 138mm; Cut-in RPM: 1,962; Weight: 15.89 lbs.
  • Compatibility: Designed for Yanmar common rail engines introduced after 2013 (JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, 4JH110).
  • Included hardware: Comes with a 49K6 6-groove pulley, M17 x 1.5 x 24mm nut, and 18mm ID x 29mm OD washer.

This alternator requires an external regulator; for maximum performance or lithium battery charging, the use of the ARCO Zeus Bluetooth Alternator Regulator is recommended.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-118062
Model / MPN
4502
UPC / GTIN
612461588531
Package dimensions (H × W × L)
9" X 9" X 10"
Package weight
16.35 lb

Specifications

Type
ARCO Marine Zeus 24V 7kW 3.15 Alternator w/Isolated Ground (

Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
