Brand: ARCO Marine

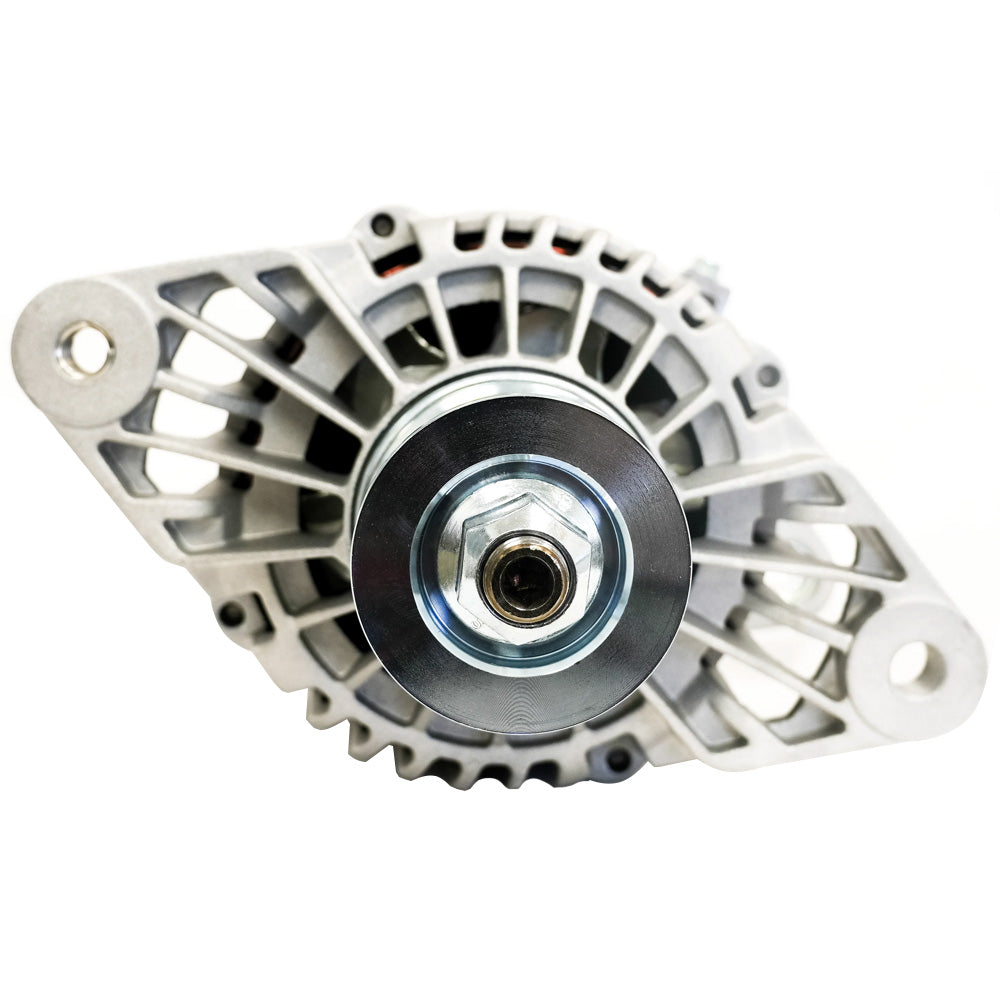

ARCO Marine Zeus 24V 3500W High Output Alternator, J180 Mount
ARCO Marine Zeus 24V 3500W High Output Alternator, J180 Mount
Sold out
About this product
The ARCO Marine Zeus High Output Alternator is engineered for demanding marine and diesel applications, providing reliable power production and rapid battery bank charging. This heavy-duty, 24V unit features dual internal cooling fans to maintain efficient operating temperatures during extended duty cycles, allowing for consistent performance and reduced reliance on auxiliary generators.
Key Features and Specifications:
- Voltage: 24V
- Max Cold Output: 132 Amps
- Sustained Hot Output: 104 Amps at 6,000 RPM; 89 Amps at 3,000 RPM
- Mounting Style: J180
- External regulation is required (terminal block and P-Type harness included)
- Rotor Poles: 12
- Avalanche Diodes: 50 Amps
- Cut-In RPM: 1,288
- Maximum Alternator RPM: 10,000
- Rear Battery Post: M8 Thread
- Standard Pulley: K8 59 mm
- Shaft Diameter: 7/8 in. (22.22 mm)
- Max Continuous Operating Temperature: 125°C
- Weight: 18.7 lbs. (8.5 kg)
- Manufacturer Part Number: 4412
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-166558
- Model / MPN
- 4412
- UPC / GTIN
- 604670326004
- Package dimensions (H × W × L)
- 10" X 10" X 10"
- Package weight
- 20.6 lb
Specifications
- Type
- ARCO Marine Zeus A115/3500W 24V HD Hight Output Alternator -
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
