Brand: ARCO Marine

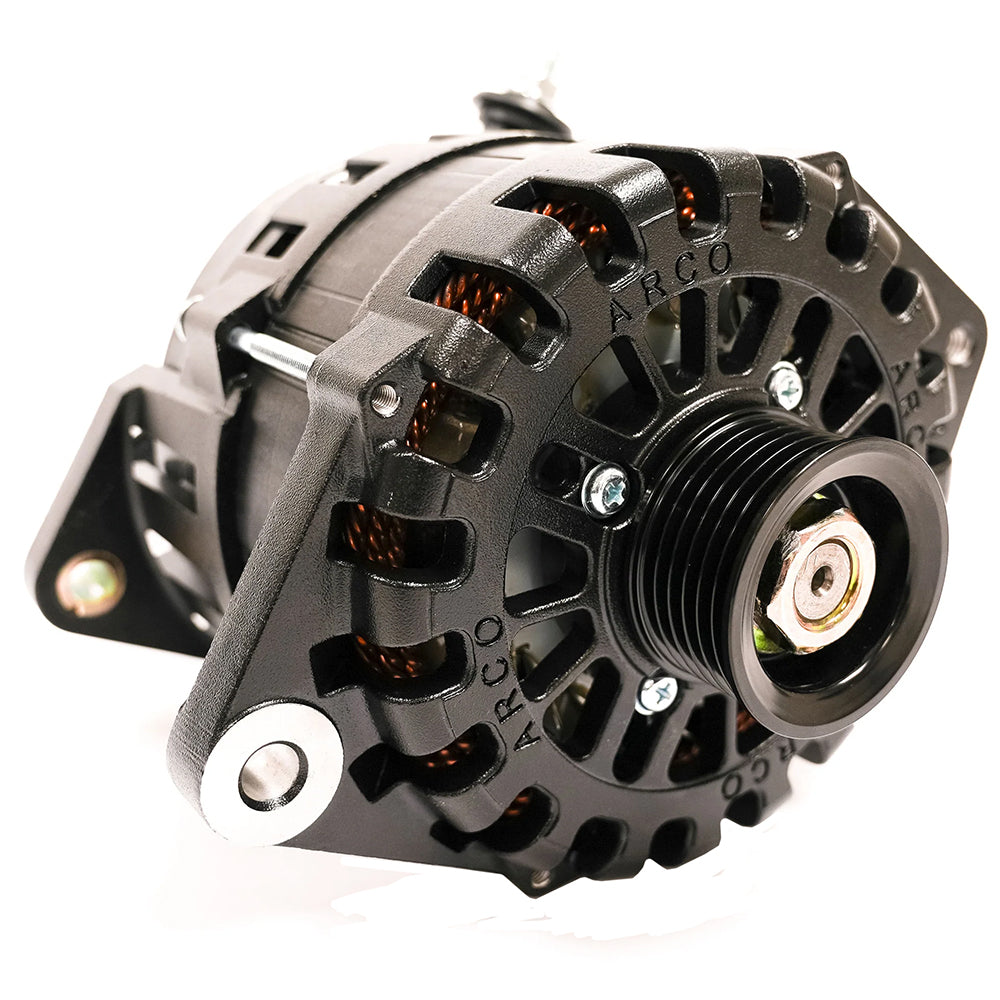

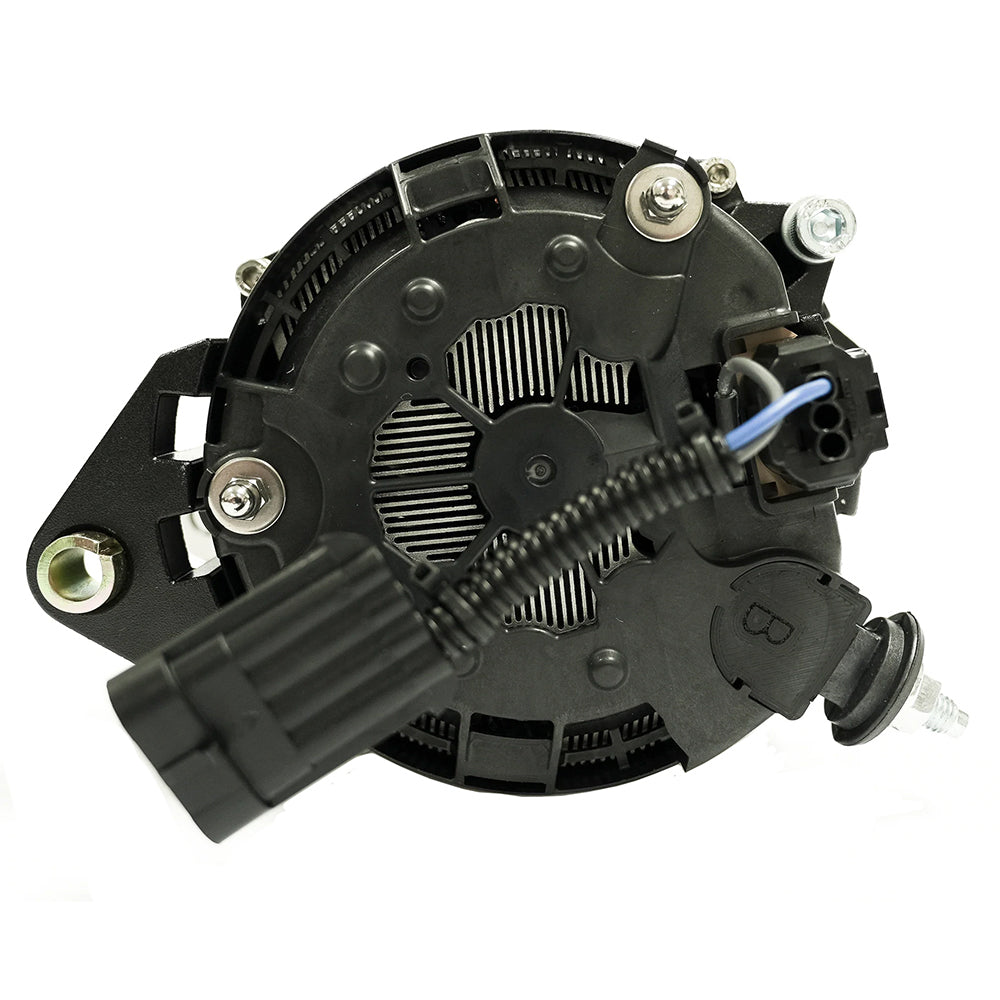

ARCO Marine Zeus A225S 12V 254A Alternator with Isolated Ground
ARCO Marine Zeus A225S 12V 254A Alternator with Isolated Ground
Sold out
About this product
The ARCO Marine Zeus A225S is a high-output 12V alternator designed for marine, RV, military, and commercial applications. Engineered for rapid charging of large battery banks, this unit features a 3.15" saddle-style mount and is compatible with small case styles like Hitachi, Lucas, and Mitsubishi, including most Yanmar engine configurations.
Key Features:
- High Output: Capable of 254 Amps maximum cold output at 9,000 RPM, with 157 Amps sustained idle output.
- Thermal Efficiency: Operates 8-20% cooler than standard alternators through the use of heat-shedding E-Coat/Cerakote finish, an externally mounted rectifier, and dual cooling fans.
- Reliability: SAE J1171 certified and constructed with OEM components.
- Versatile Regulation: Internally regulated with an adapter available for optional external regulation. Optimized for compatibility with the ARCO Zeus Bluetooth Alternator Regulator.
- Specifications: 16 rotor poles, 130mm stator, and 12 lb weight. Includes 49K6 6-groove pulley and M17 mounting hardware.
- Made in the U.S.A.
Note: Replacing a standard single "V" belt with a serpentine belt system is required for proper operation. This unit features an isolated ground and a terminal block.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-118038
- Model / MPN
- 4011
- UPC / GTIN
- 695845892578
- Package dimensions (H × W × L)
- 9" X 10" X 10"
- Package weight
- 14.0 lb
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
