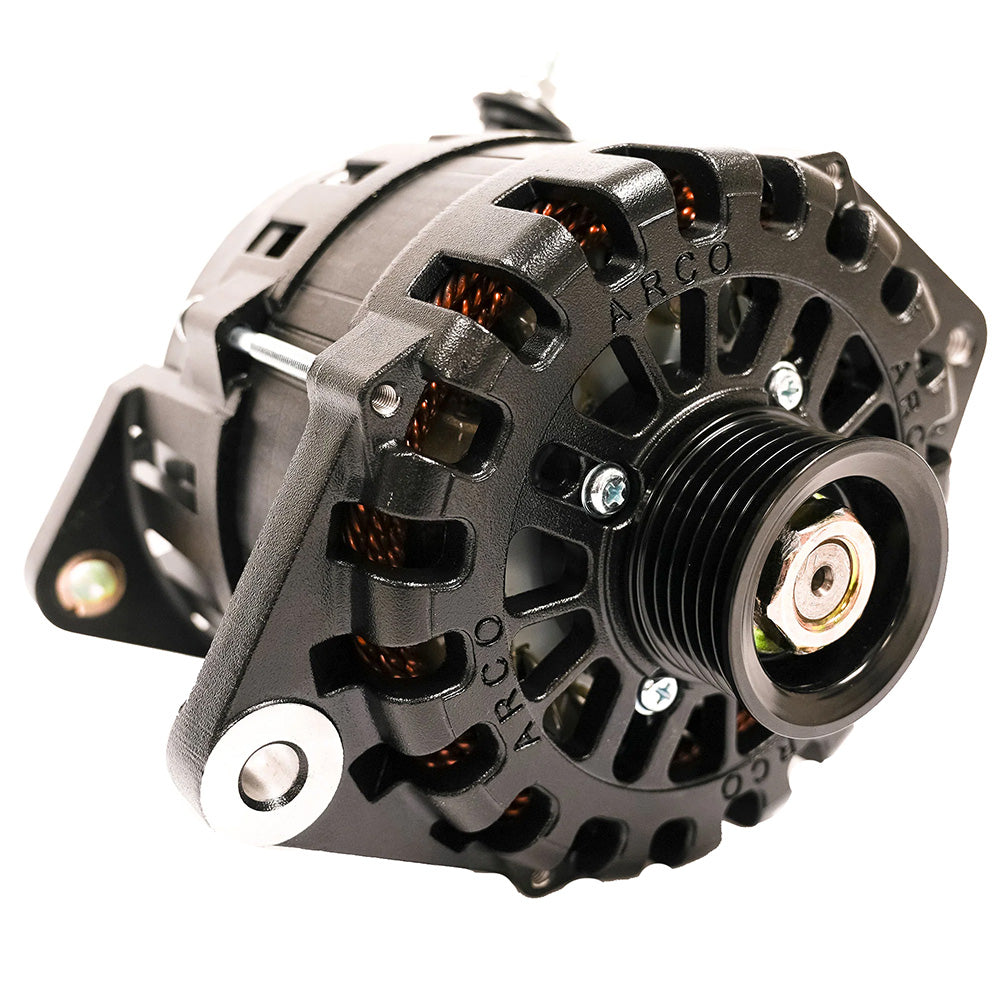

ARCO Marine Zeus A225S J-180 3.15 in. Alternator with Terminal Block
ARCO Marine Zeus A225S J-180 3.15 in. Alternator with Terminal Block
Sold out
About this product
The ARCO Marine Zeus A225S is a high-output 12V alternator engineered for marine, RV, military, and commercial applications. Designed for efficient energy production, it features advanced heat-shedding coatings, dual cooling fans, and an externally mounted rectifier to maintain lower operating temperatures for sustained high-amperage output, including optimized performance at idle speeds.
Key Features:
- High power output, capable of 254A max output at 9,000 RPM
- Engineered with heat-shedding E-coat and Cerakote finish
- SAE J1171 certified
- Compatible with ARCO Zeus Bluetooth regulators for lithium battery charging
- Made in the U.S.A.
Technical Specifications:
- Voltage: 12V
- Field Type: P
- Regulation: External only
- Mounting Style: 3.15 in. J-180 saddle mount
- Weight: 12 lbs.
- Stator Size: 130mm
- Pulley: 49K6 6-groove, 49mm (includes M17 hardware)
- Operating Range: 1,061 to 19,000 RPM
- Battery Post: Side-mount M8 threaded post
This unit is designed to replace most small-case alternators using a 3.15 in. J-180 saddle mount, including many Yanmar applications. Please note that this alternator requires an external regulator.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-117907
- Model / MPN
- 4010
- UPC / GTIN
- 695845653315
- Package dimensions (H × W × L)
- 10" X 10" X 10"
- Package weight
- 13.9 lb
Specifications
- Type
- ARCO Marine Zeus A225S J-180 3.15" Alternator w/Terminal Blo
