Brand: ARCO Marine

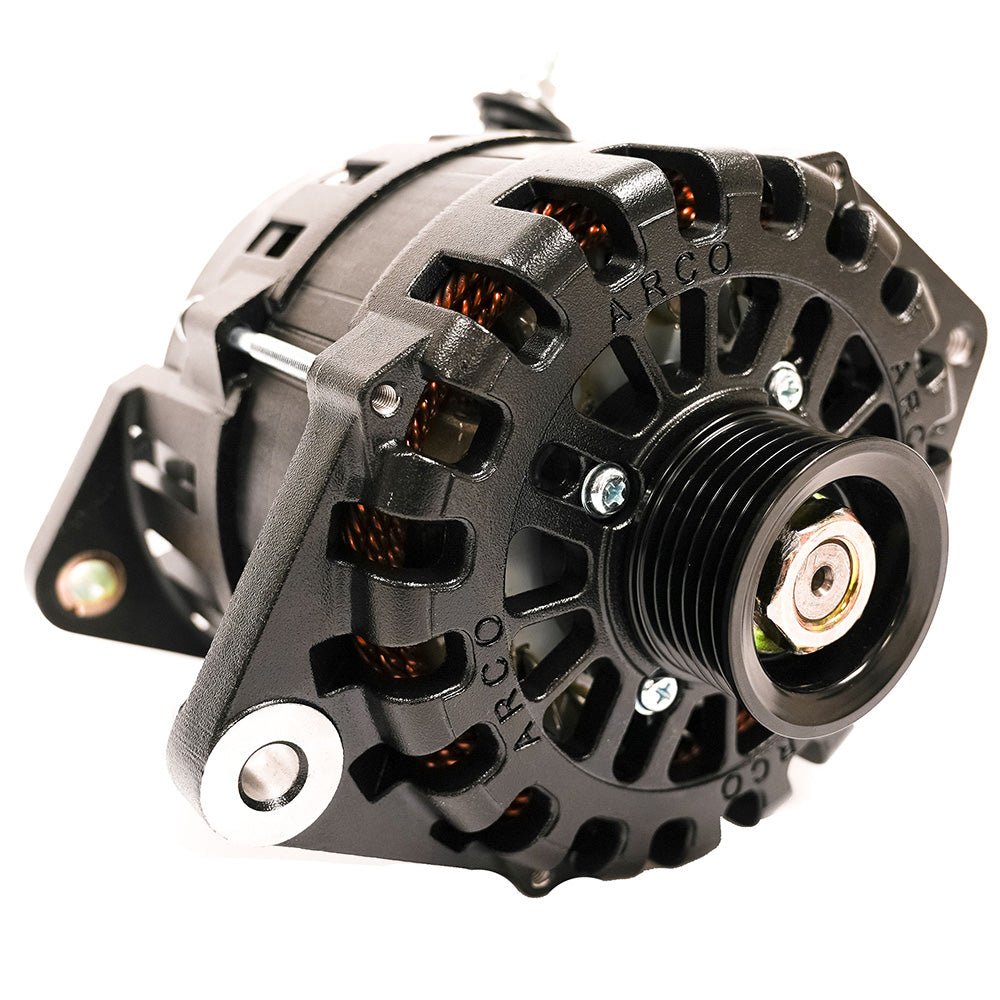

ARCO Marine Zeus A275L 12V 311A Single Foot Alternator, 1"-2"
ARCO Marine Zeus A275L 12V 311A Single Foot Alternator, 1"-2"
Sold out
About this product
The ARCO Marine Zeus A275L is a high-output 12V alternator engineered for marine, RV, military, and commercial applications. Designed for rapid charging of large battery banks, it delivers a maximum cold output of 311 Amps and maintains 198 Amps of sustained output at idle. This unit features advanced thermal management, including dual cooling fans, a heat-shedding Cerakote and E-Coat finish, and an externally mounted rectifier to ensure cooler operation and consistent performance.
Key Features:
- Fits most domestic styles with a 1" or 2" single mounting foot, such as Motorola and Prestolite configurations
- Optimized for performance at low idle speeds
- Runs 8-20% cooler than standard alternators to support sustained high-amperage output
- Supports both internal and external regulation (adapter required for external)
- SAE J1171 certified and made in the U.S.A.
- Max operating temperature: 110°C (230°F)
- Includes M17 x 1.5 pulley hardware
Technical Specifications:
- Voltage: 12V
- Max Output: 311 Amps (Cold, 9,000 RPM)
- Sustained Output: 227 Amps (Hot, 6,000 RPM)
- Weight: 14.9 lbs
- Pulley: 49K6 (6-groove, 49mm)
- Shaft: 17mm diameter
- Battery Post: Side-mount M8 thread
- Manufacturer Part Number: 4029
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-117899
- Model / MPN
- 4029
- UPC / GTIN
- 695845934155
- Package dimensions (H × W × L)
- 10" X 10" X 10"
- Package weight
- 16.42 lb
Specifications
- Type
- ARCO Marine Zeus A275L 1"-2" Single Foot Alternator w/Regula
