Brand: ARCO Marine

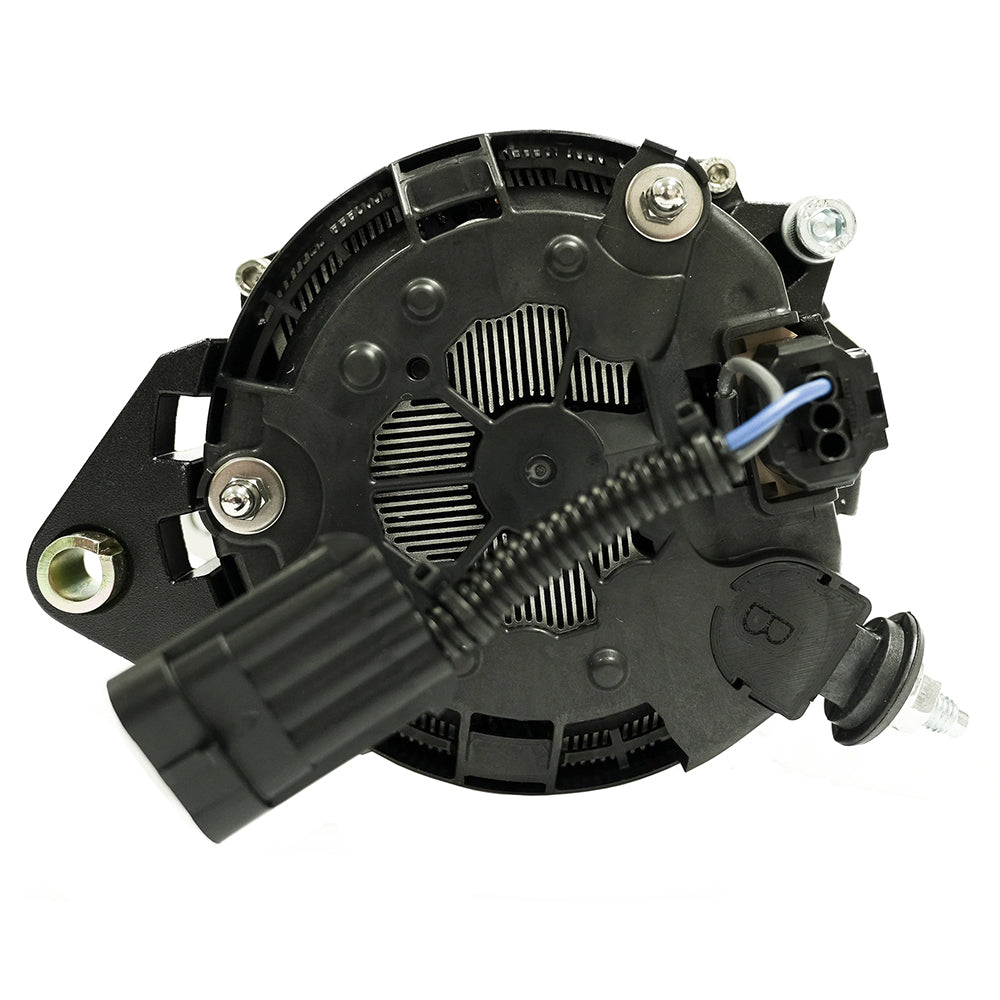

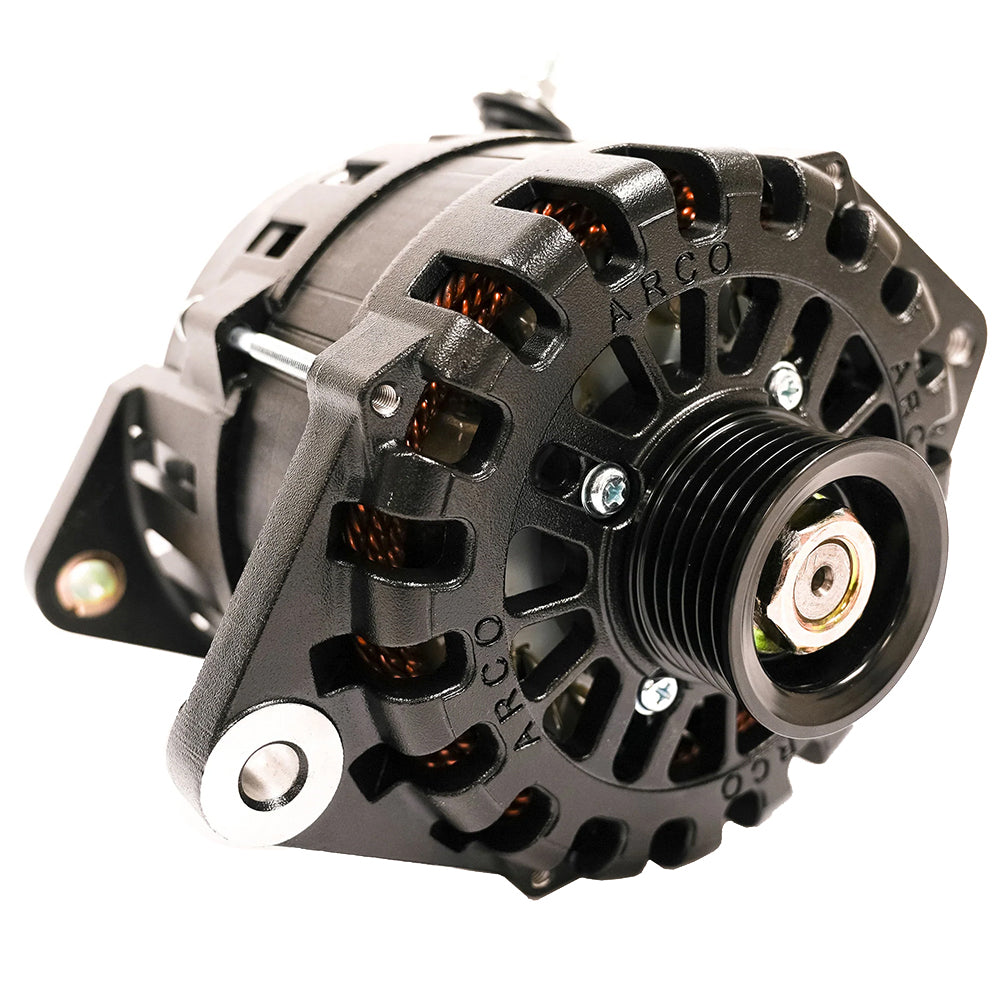

ARCO Marine Zeus A275L 3.15 in. Alternator with Isolated Ground and Terminal Block
ARCO Marine Zeus A275L 3.15 in. Alternator with Isolated Ground and Terminal Block
Sold out
About this product
The ARCO Marine Zeus A275L 3.15 in. alternator is designed for high-energy production across marine, RV, military, and commercial applications. This unit is built to charge large battery banks efficiently, featuring dual cooling fans, heat-shedding E-coat or Cerakote finishes, and an exterior-mounted rectifier for cooler operating temperatures.
Key Features:
- Optimized performance at idle speeds
- SAE J1171 certified
- Made in the U.S.A.
- Compatible with the ARCO Zeus Bluetooth Alternator Regulator for lithium charging
- Dual cooling fans and exterior rectifier design
Technical Specifications:
- Voltage: 12V
- Max Output: 311 Amps (Cold, 9,000 RPM)
- Sustained Idle Output: 198 Amps (Hot, 3,000 RPM)
- Regulation: Internal with adapter for external regulation
- Weight: 14.9 lbs
- Mount: 3.15 in. saddle style
- Pulley: 49K6 (6-groove, 49mm)
- Max Continuous Operating Temperature: 230°F
Fitment Note: This alternator replaces most small case styles using a 3.15 in. saddle mount, such as those found on Hitachi, Lucas, Mitsubishi, and most Yanmar systems. Installation requires upgrading standard single V-belts to a serpentine system.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-118029
- Model / MPN
- 4019
- UPC / GTIN
- 695845960956
- Package dimensions (H × W × L)
- 10" X 10" X 10"
- Package weight
- 16.25 lb
