• ARCO Marine Zeus A275L J-180 4" Alternator, 12V 311A Max – Made in USA
1 1

Brand: ARCO Marine

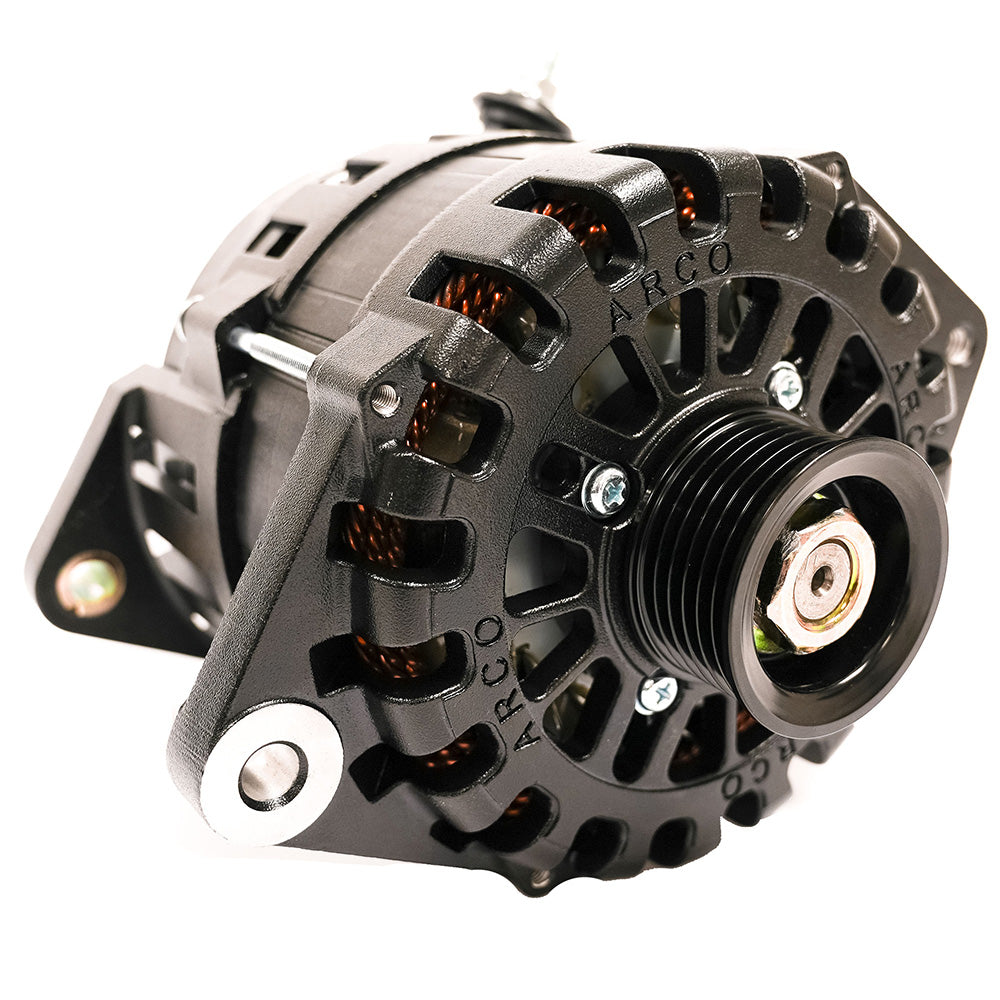

ARCO Marine Zeus A275L J-180 4 in. Alternator with Terminal Block

ARCO Marine Zeus A275L J-180 4 in. Alternator with Terminal Block

$1,044.72
$1,044.72
Sale Sold out
Shipping calculated at checkout.

3 available

About this product

The ARCO Marine Zeus A275L J-180 4 in. Alternator is engineered for high-energy production across marine, RV, military, and commercial applications. Designed to charge large battery banks efficiently, this unit features heat-shedding Cerakote and E-Coat finishes, dual cooling fans, and advanced thermal management to operate 8 to 20% cooler than standard alternators. Optimized for high performance at idle, this unit helps reduce generator dependency.

Key Features and Specifications:

  • Voltage: 12v
  • Maximum output (Cold, 9,000 RPM): 311 Amps
  • Sustained cruising output (Hot, 6,000 RPM): 227 Amps
  • Sustained idle output (Hot, 3,000 RPM): 198 Amps
  • Mounting: J-180 4 in. saddle-style (replaces most Volvo Penta alternators)
  • Regulation: External only (includes terminal block and P-Type harness; requires external regulator such as ARCO Zeus Bluetooth)
  • Operating Temperature: Up to 110°C (230°F)
  • Standard Pulley: 49K6 (6-groove, 49mm)
  • Weight: 14.9 lbs
  • SAE J1171 certified
  • Made in the U.S.A.

Each unit includes pulley mounting hardware (M17 x 1.5 x 24mm nut and 18mm ID x 29mm OD washer). Requires an external regulator for operation.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-117890
Model / MPN
4022
UPC / GTIN
695845717048
Package dimensions (H × W × L)
9" X 10" X 10"
Package weight
16.55 lb

Specifications

Type
ARCO Marine Zeus A275L J-180 4" Alternator w/Terminal Block

Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
