Brand: ARCO Marine

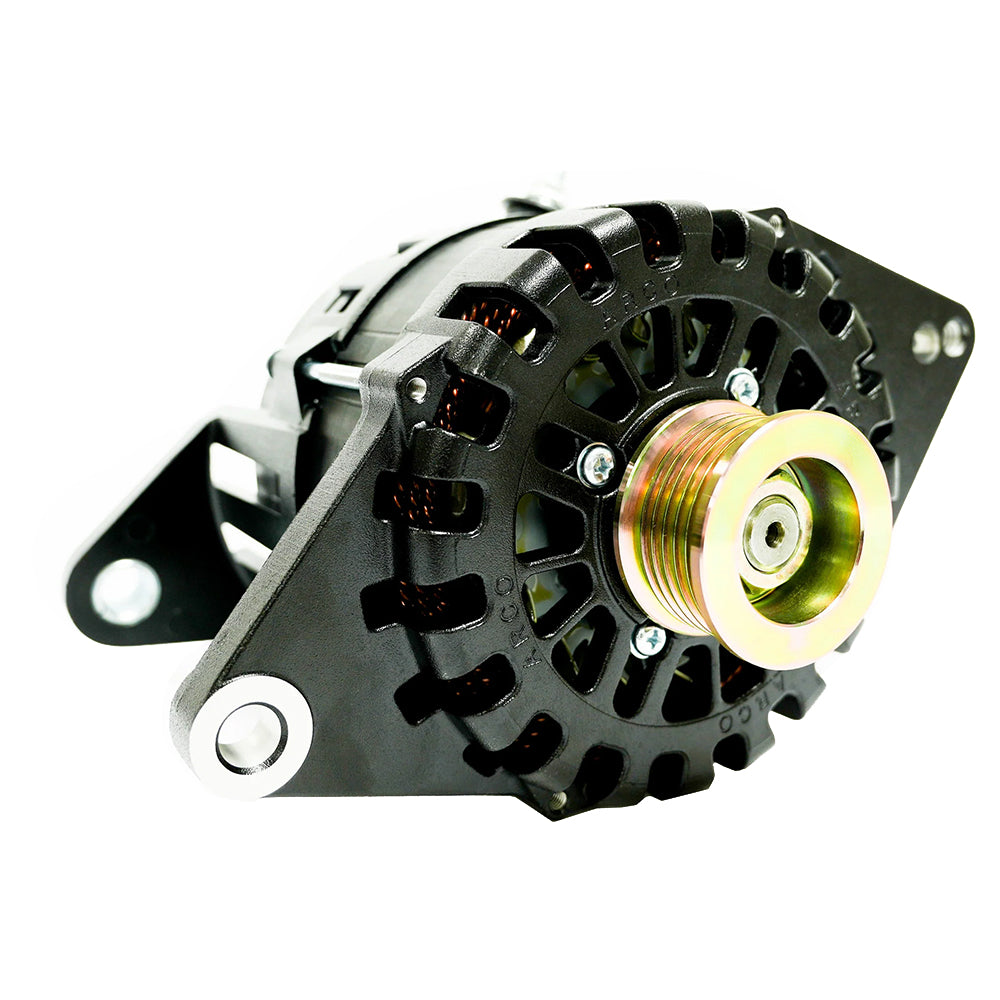

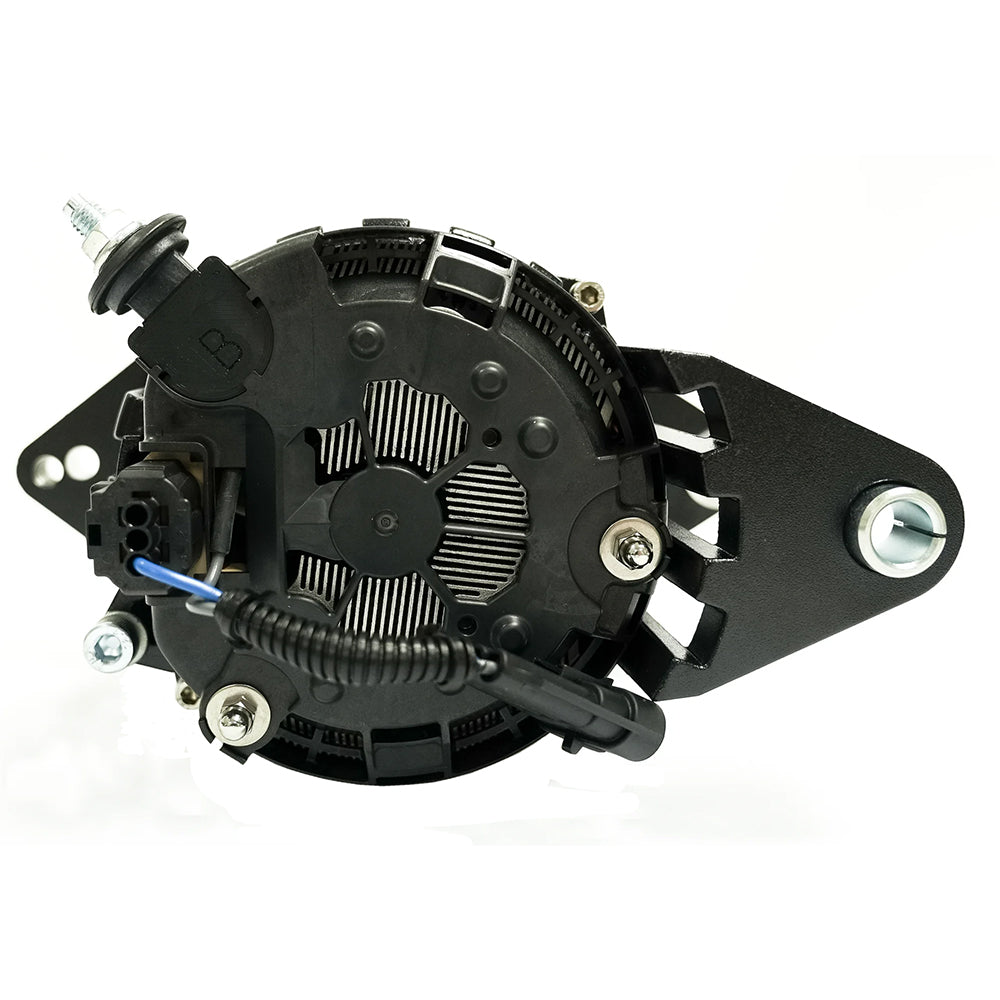

ARCO Marine Zeus A275L J180 4 in. Alternator with Isolated Ground and Terminal Block (4023)
ARCO Marine Zeus A275L J180 4 in. Alternator with Isolated Ground and Terminal Block (4023)
Sold out
About this product
The ARCO Marine Zeus A275L is a high-output 12V alternator engineered for marine, RV, military, and commercial applications. This unit features a 4-inch J180 saddle-style mount, making it a suitable replacement for most Volvo Penta alternators. Designed for maximum efficiency and cooling, it utilizes a specialized E-coat/Cerakote finish and dual cooling fans to maintain performance even at idle speeds.
Key Features:
- Output: 311 Amps (cold) at 9,000 RPM; 198 Amps (hot) at 3,000 RPM idle
- Isolated ground design with external rectifier placement for cooler operation
- Internal voltage regulation with adapter option for external regulation
- SAE J1171 certified and made in the U.S.A.
- Frame size: Large, 14.9 lbs.
- Default output voltage: 14.1V
- Includes M8 side-mount battery post and 6-groove 49mm pulley hardware
- Max continuous operating temperature: 230°F (110°C)
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-117922
- Model / MPN
- 4023
- UPC / GTIN
- 695845769955
- Package dimensions (H × W × L)
- 9" X 10" X 10"
- Package weight
- 16.6 lb
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
