Brand: ARCO Marine

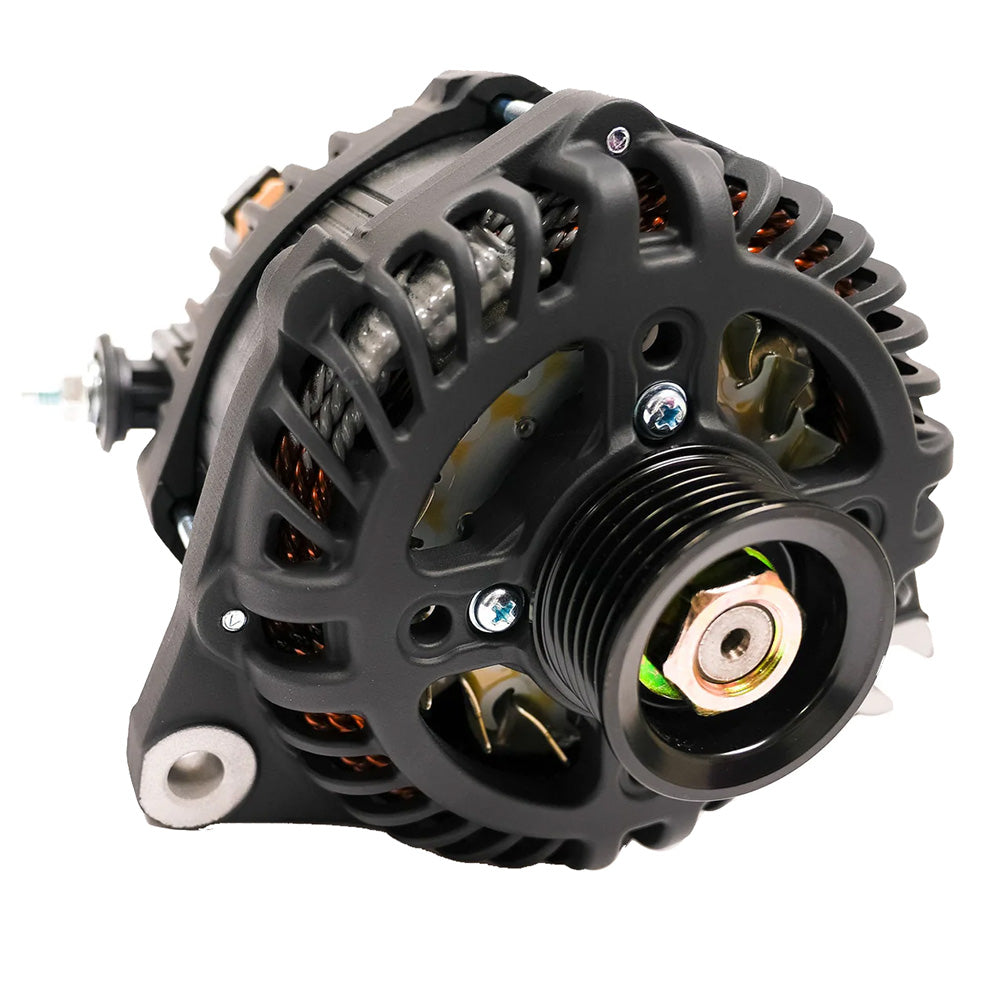

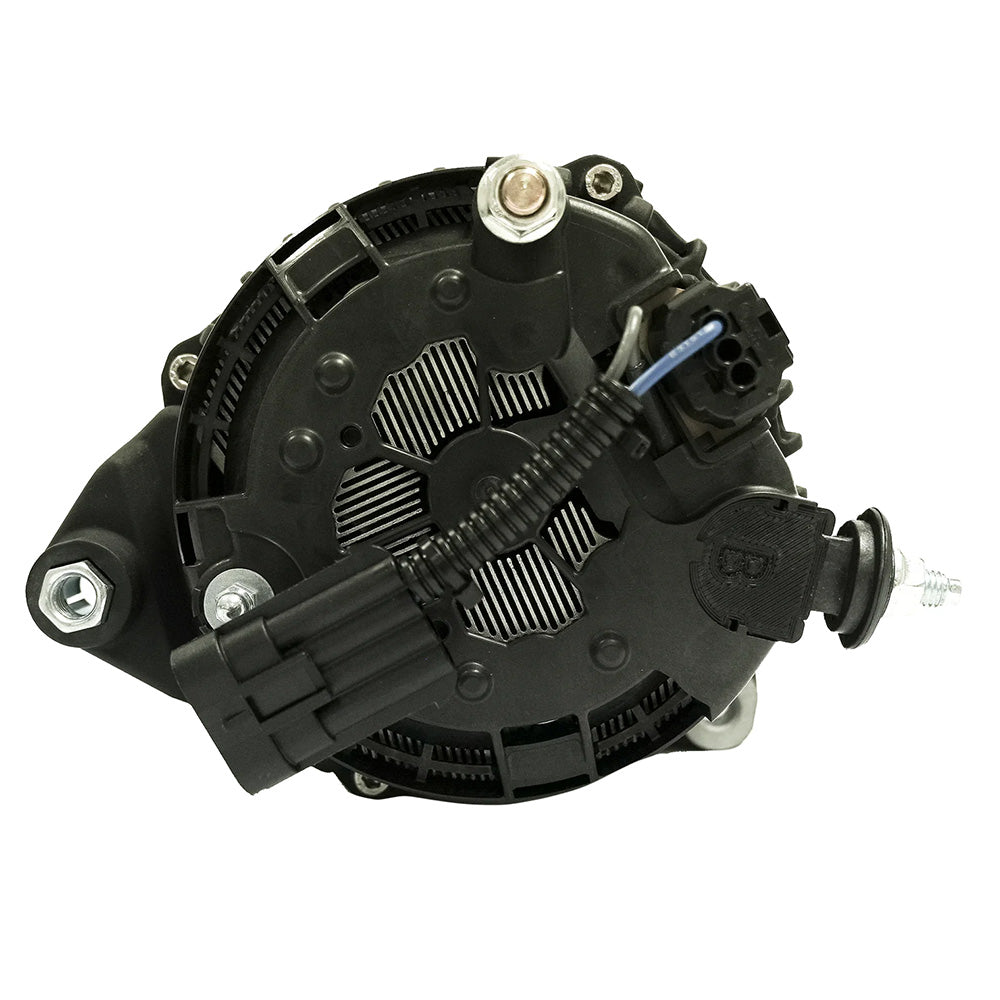

ARCO Marine Zeus A275L Transit Alternator, 12V
ARCO Marine Zeus A275L Transit Alternator, 12V
Sold out
About this product
The ARCO Marine Zeus A275L is a high-output, 12V transit alternator engineered for marine, RV, military, and commercial applications. Designed for rapid charging of large battery banks, this unit provides high amperage output and is optimized for peak performance even at idle speeds. Its construction includes dual cooling fans, a heat-shedding Cerakote or E-coat finish, and an externally mounted rectifier to ensure lower operating temperatures and sustained power production.
Key Features:
- Output: 311 Amps max (cold, 9,000 RPM); 198 Amps sustained idle (hot, 3,000 RPM)
- Compatible with 2015-2022 Ford Transit 3.5L and 3.7L gas engines
- SAE J1171 certified
- Features internal/external (IE) or external only (EX) regulation capability
- Includes 6-groove, 49mm pulley and mounting hardware
- Weight: 14.9 lbs
- Proudly made in the U.S.A.
For maximum performance or lithium battery charging, use of the ARCO Zeus Bluetooth Alternator Regulator is recommended. This model is not intended for use with Mercedes Sprinter vans; please refer to the ARCO N62 for that application.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-118551
- Model / MPN
- 4032
- UPC / GTIN
- 612461468703
- Package dimensions (H × W × L)
- 9" X 9" X 10"
- Package weight
- 16.21 lb
Specifications
- Type
- ARCO Marine Zeus A275L Transit Alternator w/Terminal Block
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
