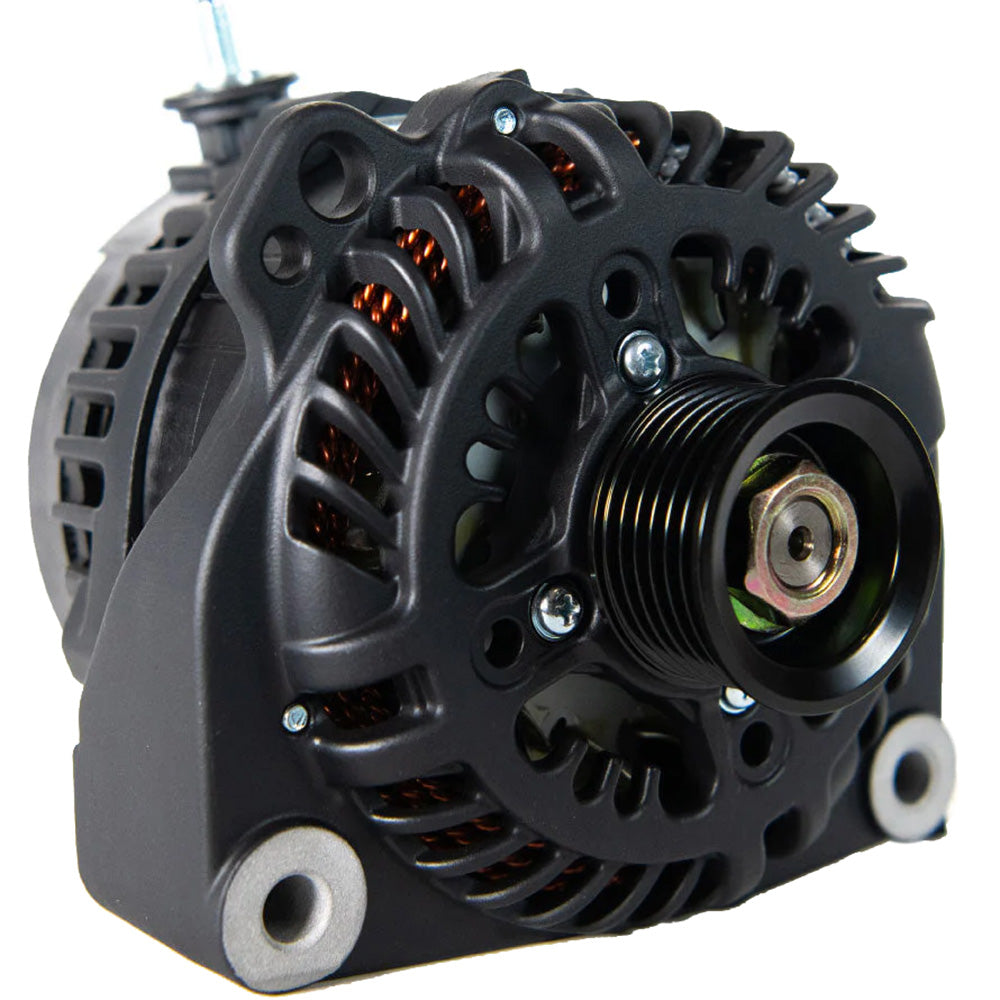

ARCO Marine Zeus A275L Vortec Alternator, 12V
ARCO Marine Zeus A275L Vortec Alternator, 12V
Sold out
About this product
The ARCO Marine Zeus A275L is a high-output 12V alternator engineered for marine, RV, military, and commercial applications. Optimized for performance at idle speeds, this unit features advanced E-Coat/Cerakote finishes to manage heat, allowing for cooler operation and sustained high amperage output.
Key Features:
- Designed to charge large battery banks efficiently, reducing the need for a separate generator.
- Operates 8% to 20% cooler than standard alternators through heat-shedding coatings, an externally mounted rectifier, and dual cooling fans.
- Regulation: External regulation required (includes terminal block and P-Type harness; compatible with ARCO Zeus Bluetooth regulators).
- Construction: 16 rotor poles, 138mm stator, and durable E-Coat/Cerakote finish.
- Performance: Max output of 311 Amps (cold, 9,000 RPM) and sustained idle output of 198 Amps (hot, 3,000 RPM).
- Compliance: SAE J1171 certified.
- Manufacturing: Made in the U.S.A.
Mounting and Compatibility:
- Designed to replace Mando-type alternators with Vortec/GM pad mounting feet, commonly found on GM-block marine engines including Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, and 5.7GXiL.
- Pulley details: Includes 49K6 6-groove pulley, 17mm shaft, and mounting hardware.
- Weight: 14.9 lbs.
- Manufacturer Part Number: 4033.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-117904
- Model / MPN
- 4033
- UPC / GTIN
- 695845547775
- Package dimensions (H × W × L)
- 10" X 10" X 11"
- Package weight
- 16.5 lb
Specifications
- Type
- ARCO Marine Zeus A275L Vortec Alternator w/Terminal Block
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
