Brand: ARCO Marine

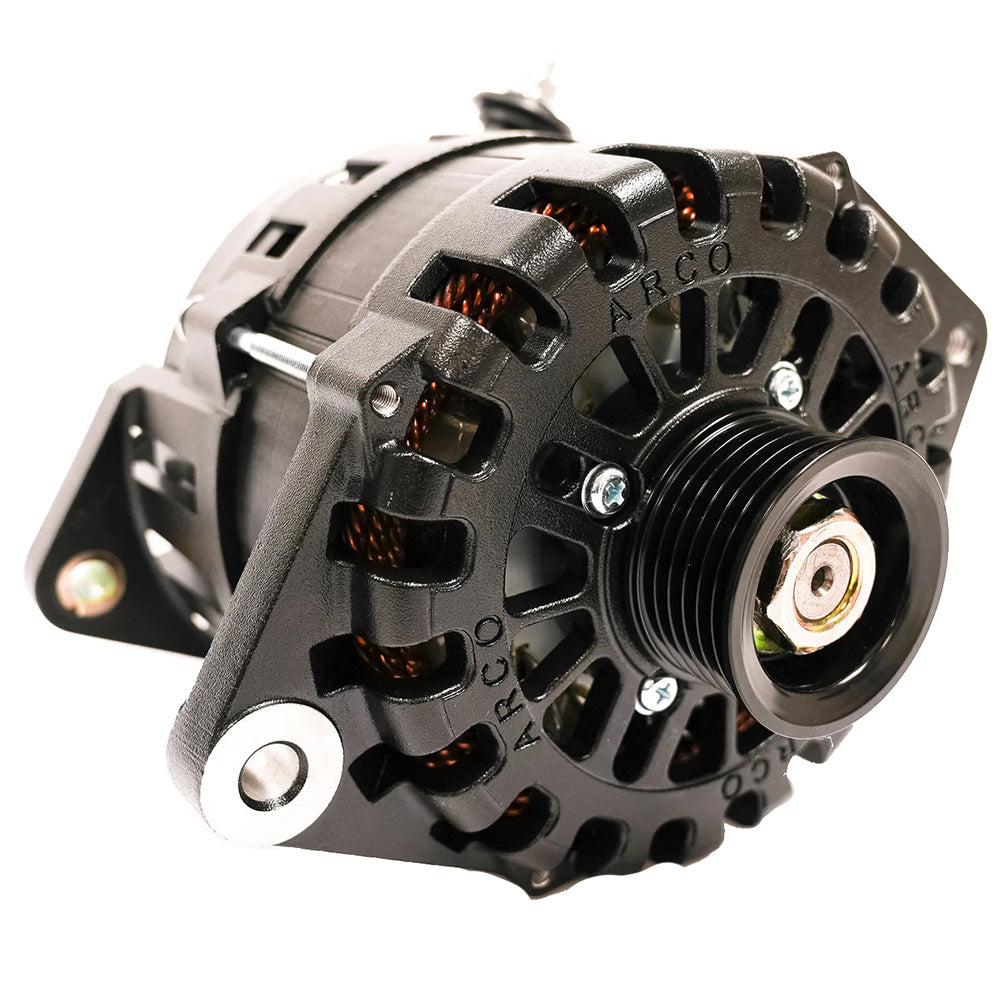

ARCO Marine Zeus A8000-48V 8kW Alternator with Isolated Ground
ARCO Marine Zeus A8000-48V 8kW Alternator with Isolated Ground
2 available
About this product
The ARCO Marine Zeus A8000-48V 8kW alternator is engineered for high energy production in marine, RV, military, and commercial applications. Designed for efficient performance at lower RPMs, this unit features a native 48V rotor to maintain cooler operating temperatures and extended lifespan. It is SAE J1171 certified and proudly made in the U.S.A.
Key Features:
- Output optimized for idle speeds and rapid charging of large battery banks.
- Isolated ground configuration for reliable common rail engine compatibility.
- External regulation required for maximum performance and lithium battery charging.

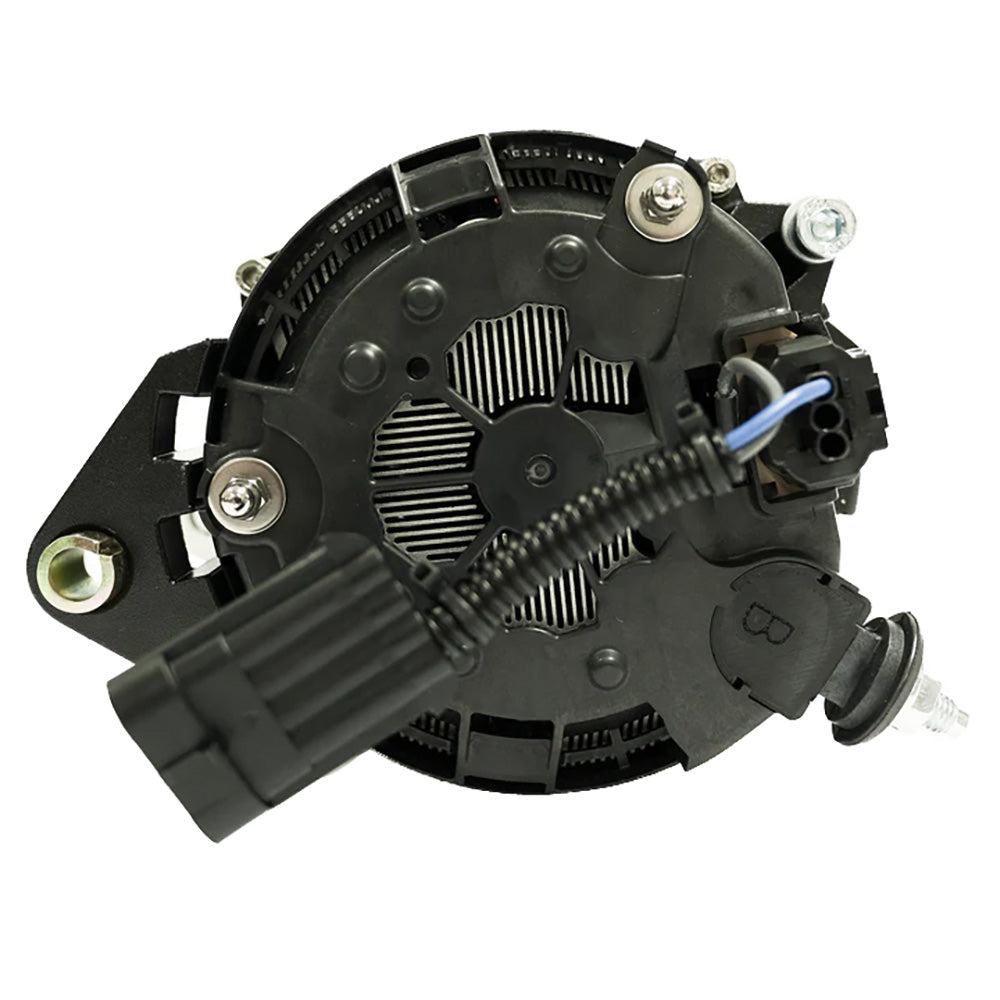

- Equipped with dual cooling fans, heat-shedding E-Coat/Cerakote finish, and external rectifier mounting for thermal efficiency.
- Includes 49K6 6-groove pulley and mounting hardware (M17 x 1.5 nut with washer).
- Compatible with Yanmar Common Rail engines introduced after 2013, including JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, and 4JH110 models.
Technical Specifications:
- Voltage: 48V
- Field Type: P

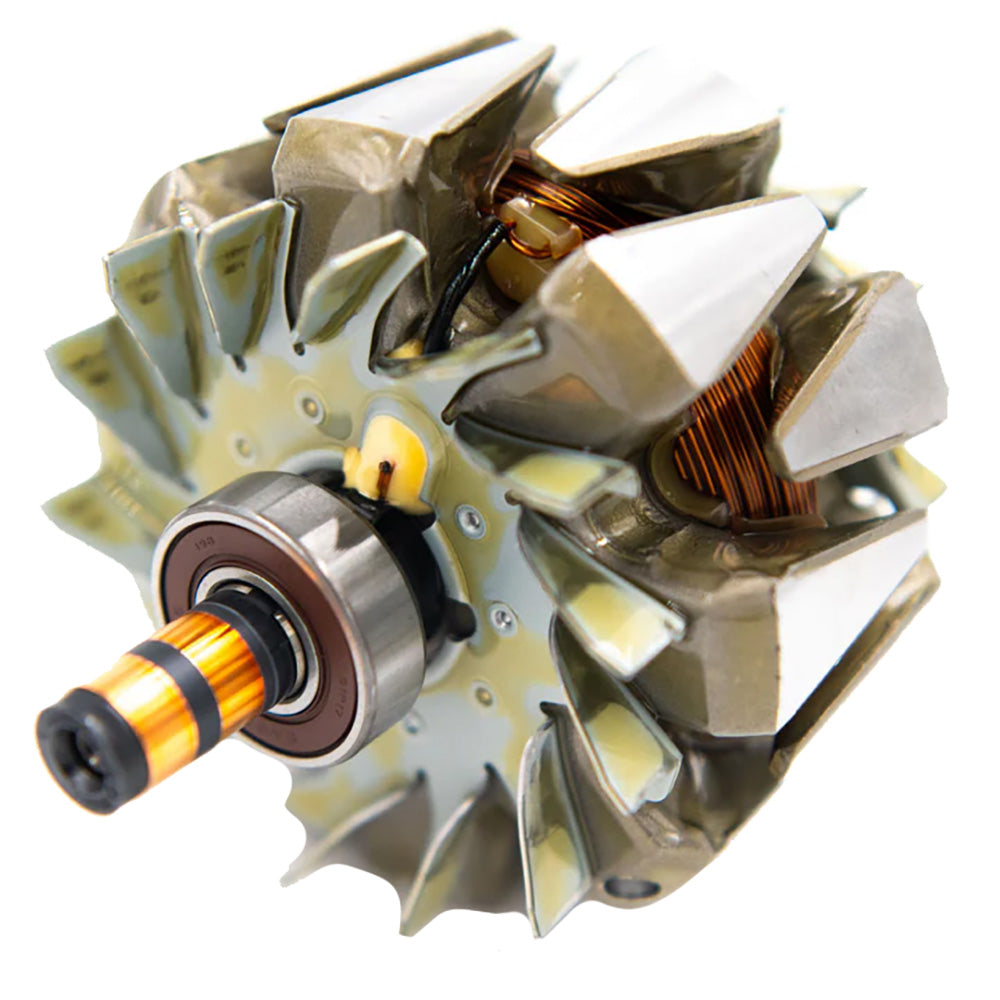

- Rotor Poles: 16

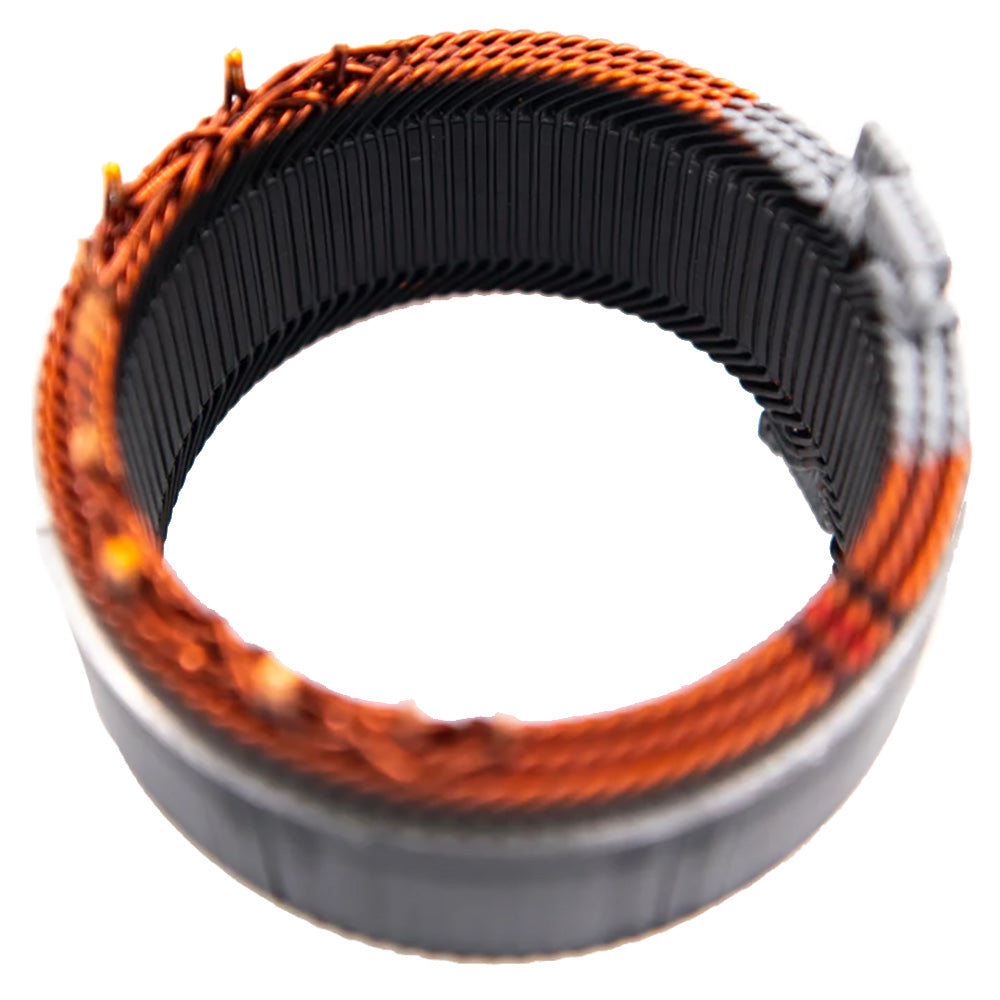

- Stator Size: 138mm
- Weight: 15.89 lbs (7.2 kg)
- Cut-In RPM: 1,920 Alternator RPM
- Max Alternator RPM: 19,000
- Max Continuous Operating Temperature: 100°C (212°F)
- Battery Post: M8 side mount
- Manufacturer Part Number: 4602
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-118242
- Model / MPN
- 4602
- UPC / GTIN
- 612461748201
- Package dimensions (H × W × L)
- 9" X 10" X 10"
- Package weight
- 16.3 lb
Specifications
- Type
- ARCO Marine Zeus A8000-48V 8kW 3.15 Alternator w/Isolated Gr
