Brand: ARCO Marine

ARCO Marine Zeus A8000-48V 8kW Ford Transit Alternator, 48V, MPN 4610

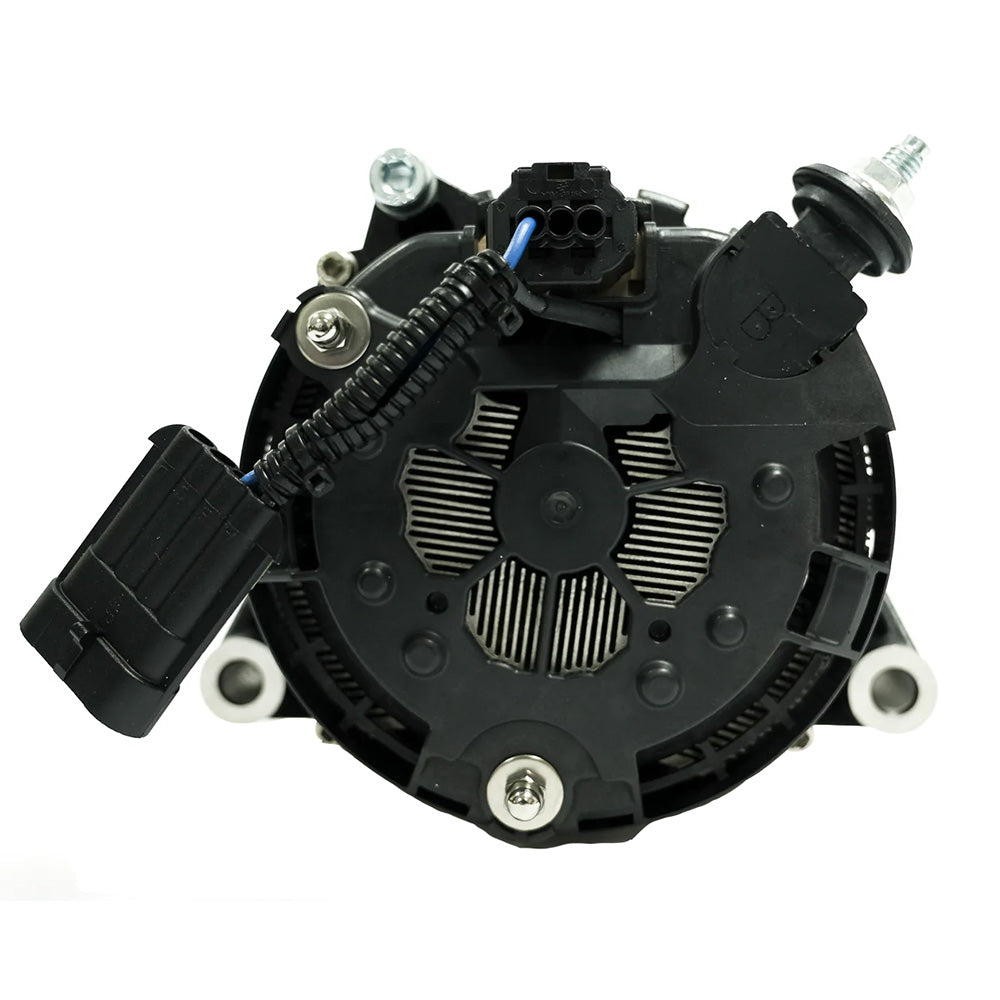

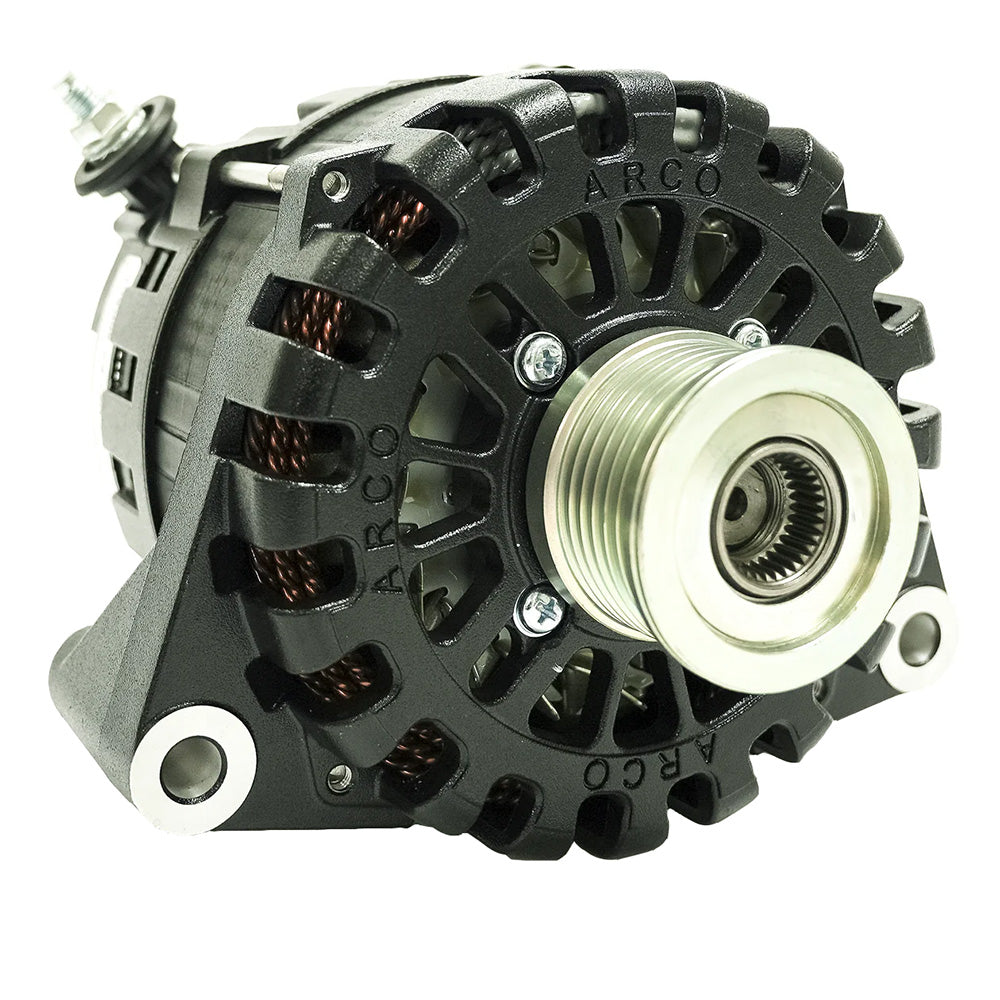

ARCO Marine Zeus A8000-48V 8kW Ford Transit Alternator, 48V, MPN 4610

Regular price $2,268.87
Regular price Sale price $2,268.87
Sale Sold out
Shipping calculated at checkout.

2 available

About this product

The ARCO Marine Zeus A8000-48V is a 48V alternator with isolated ground and a standard 49K6 six-groove pulley. It is intended for marine, RV, military, and commercial applications.

  • MPN: 4610; GTIN: 604670338199
  • Black E-coat finish, 15.89 lb. weight, and 19,000 RPM maximum alternator speed
  • External regulation only; P-type field; 16 rotor poles; 138 mm stator
  • Cut-in speed: 1,920 alternator RPM
  • Maximum output: 180 A / 9,360 W at 9,000 RPM, cold, at 53.5V
  • Sustained cruising output: 138 A / 7,383 W at 6,000 RPM, hot, at 53.5V
  • Sustained idle output: 78 A / 4,173 W at 2,500 RPM, hot, at 53.5V
  • Maximum continuous operating temperature: 100 deg C / 212 deg F
  • M8 side-mount battery post; pulley mount has a 17 mm diameter shaft, 25 mm long, threaded M17 x 1.5
  • Includes M17 x 1.5 x 24 mm pulley nut and washer with 18 mm ID x 29 mm OD
  • Cooling features include dual fans and an externally located rectifier; the alternator is optimized for performance at idle speeds

For maximum performance or lithium battery charging, ARCO recommends using the Zeus Bluetooth Alternator Regulator.

Quantity
  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-166682
Model / MPN
4610
UPC / GTIN
604670338199
Package dimensions (H × W × L)
10" X 10" X 10"
Package weight
16.0 lb

Specifications

Maximum cold output power at 53.5V and 9,000 alternator RPM
9,630 Watts

Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
