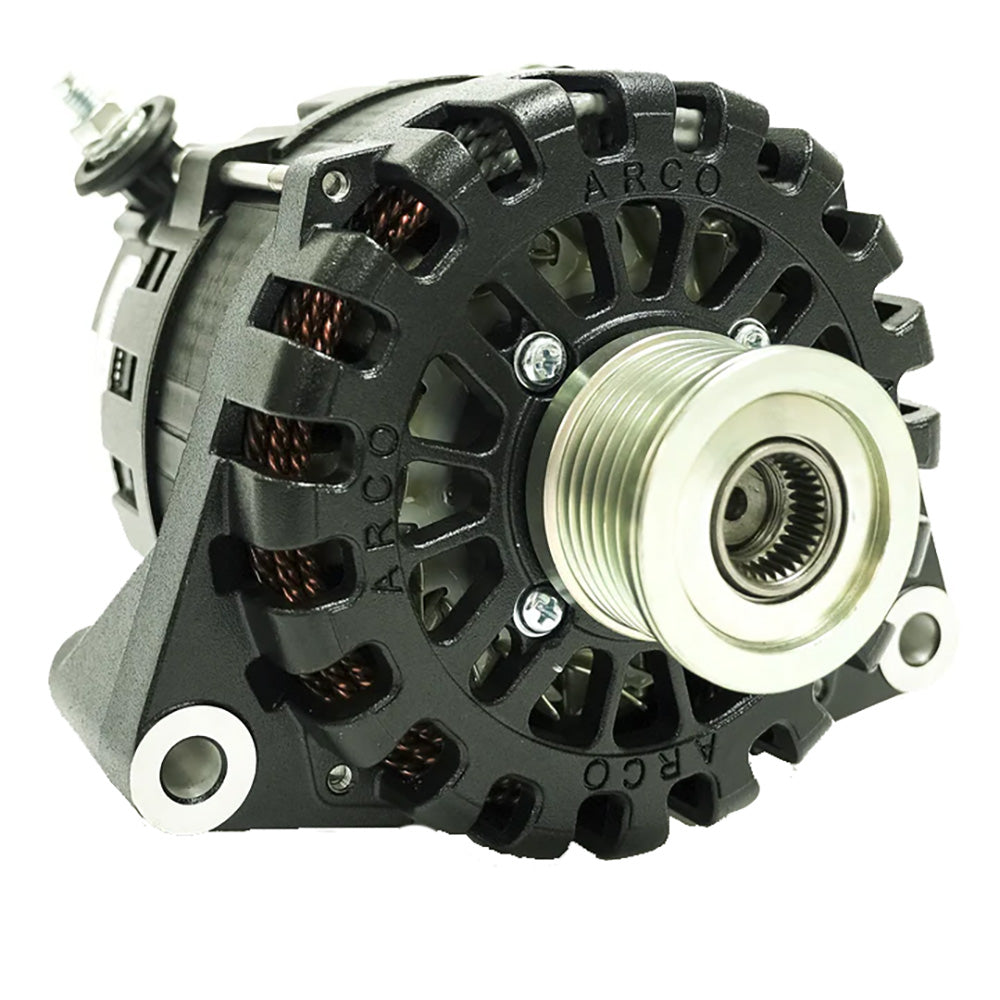

ARCO Marine Zeus 8kW 48V N62 Alternator with Clutch Pulley

The ARCO Marine Zeus A8000-48V is an 8kW N62 alternator designed for high energy production in marine, RV, military, and commercial applications. Engineered for performance at low engine RPMs, this unit utilizes a native 48V rotor to operate cooler and more efficiently than 12V-based competitors, contributing to a longer service life. It features a clutch pulley and advanced heat-shedding construction, including dual cooling fans and exterior-mounted rectifiers.

Key Features:

• Native 48V design for improved output and cooler operation.
• Optimized for rapid charging of large battery banks.
• Heat-shedding E-Coat/Cerakote finish and dual cooling fans.
• Rectifier positioned on the housing exterior for thermal management.
• SAE J1171 certified for marine safety.
• Proudly made in the USA.
• Replaces the factory dual alternator in Mercedes Sprinter vehicles with the N62 option, including various RV models from Roadtrek, Thor, and Winnebago.

Technical Specifications:

• Voltage: 48V
• Frame Size: Large
• Weight: 15.89 lbs (7.2 kg)
• Field Type: P
• Regulation: External Only
• Max Operating Temperature: 100°C (212°F)
• Max Alternator RPM: 19,000
• Cut-In RPM: 1,920 Alternator RPM
• Included Hardware: M17 x 1.5 x 24mm nut and 18mm ID x 29mm OD washer
• Manufacturer Part Number: 4604
