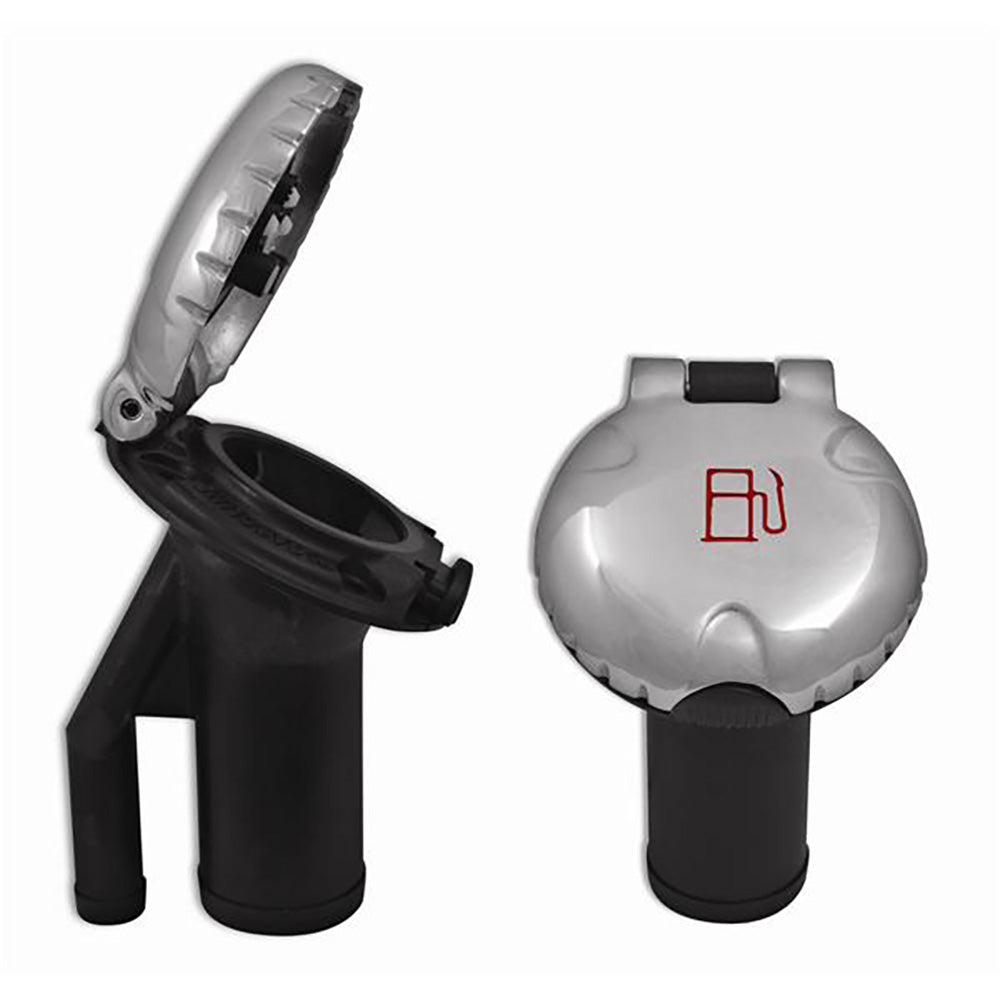

Attwood Marine Angled Pressure Relief Deck Fill, 1.5" Stainless Steel Cap

Ensure secure and compliant fueling for your vessel with the Attwood Marine Angled Pressure Relief Deck Fill. This essential component for pressure relief systems features an angled body and scalloped stainless steel cap, expertly designed to manage fuel system pressure and emissions. Its robust construction and advanced valve technology provide peace of mind, preventing water intrusion and supporting high-flow refueling. Upgrade your boat's fuel system with Attwood's industry-leading safety and performance.

Key Benefits & Features:

• Advanced Pressure Relief: Equipped with dual 1 psi diurnal emission control and overpressure relief safety valves built directly into the cap, ensuring safe pressure management.
• Optimal Fuel Flow: Triple high-flow vacuum valves guarantee maximum make-up airflow with minimal vacuum restriction, compatible with high horsepower applications.
• Water Intrusion Prevention: Engineered and rigorously tested to prevent water from entering the fuel system, safeguarding your engine.
• High-Speed Refueling: Supports automatic nozzle shutoff for fuel flow rates between 4-18 gallons per minute, ensuring efficient tank filling without spit-back.
• Durable Construction: Features a resilient stainless steel cap and body, offering long-lasting performance in marine environments.
• Universal Compatibility: Designed to fit 1-1/2 inch fill hoses and 5/8 inch vent hoses, and is compatible with both gas and diesel applications.
• Certified Compliance: EPA and CARB Certified, meeting ABYC, USCG, EPA diurnal emission standards, CARB 13 CCR 2235, and ISO 13331 nozzle mating and retention standards.
• Ethanol Fuel Ready: Fully compatible with Ethanol blended fuels, offering versatility for modern marine engines.
• Integrated Safety: Includes an integrated flame/spark arrestor and a hinged cap with an audible click to meet EPA requirements.

Recommended Pairings: This deck fill is an essential component of Attwood's VaporTec and SecureStop integrated fuel systems, and is compatible with standard Jerry Cans and marine refueling nozzles.
