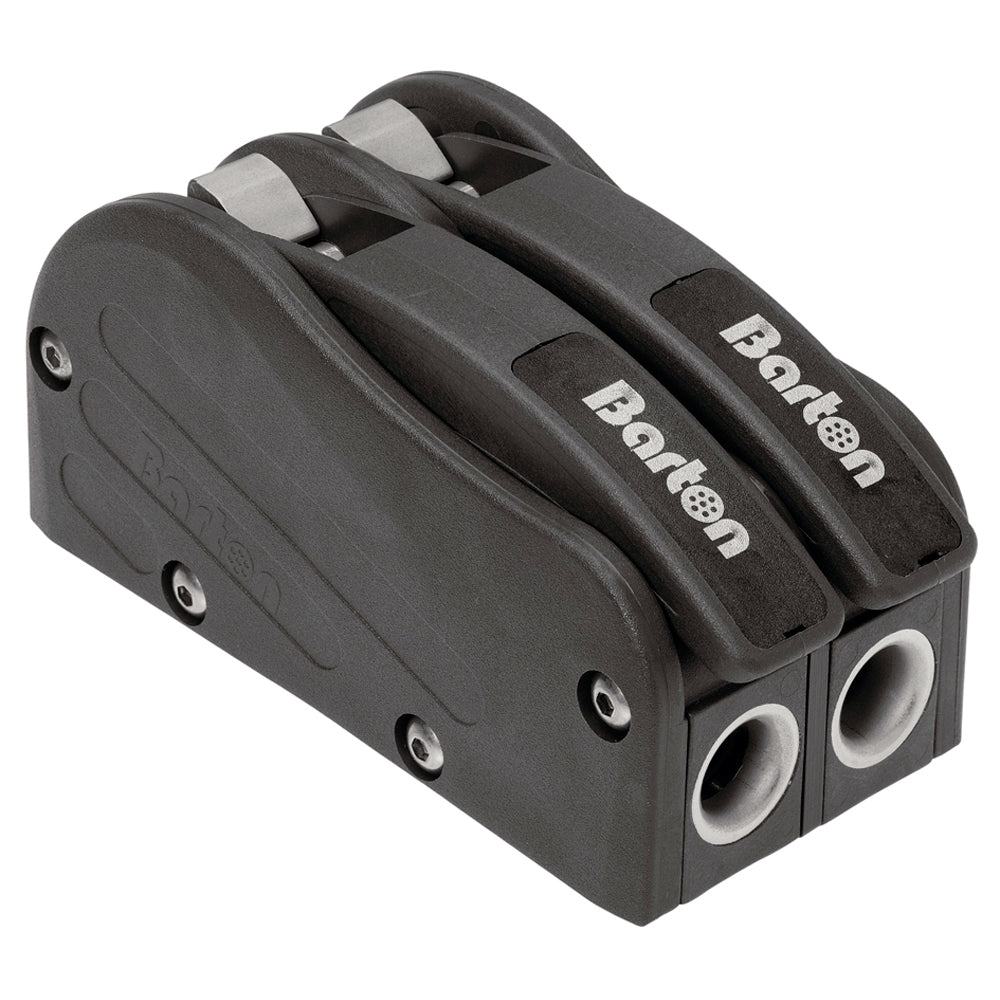

Barton Marine DO 550 Double Rope Clutch

The Barton Marine DO 550 Double Rope Clutch is designed for both cruising and racing yachts, offering a reliable, high-performance solution for line management. This unit features a precise, true clutch mechanism that allows for line adjustment while in the closed position, along with easy, positive release even under load. Its bolt-together construction ensures ease of service and part replacement.

• Durable Construction: Built with high-grade, impact-resistant plastics and Spectro anodized aluminum cams and bases for wear resistance.
• Line Protection: Stainless steel fairleads at both entry and exit points prevent wear on the lines and the clutch.
• Customizable: Includes a removable top handle insert to accommodate colored labels for quick function identification.
• Ergonomic: Precise opening and closing action remains easy to operate with cold or wet hands.
• Maximum Holding Power: 1,212 lbs (550 kg).
• Capacity: Accommodates lines up to 0.47 in. (1.2 cm) in diameter.
• Dimensions: 5.25 in. x 2.5 in. x 2.5 in. (13.3 cm x 6.3 cm x 6.3 cm).
• Hole Centers: 3.125 in. (79 mm).
• Weight: 1.2 lbs (544 g).

Sold as an individual unit. Manufacturer Part Number: 81501.
