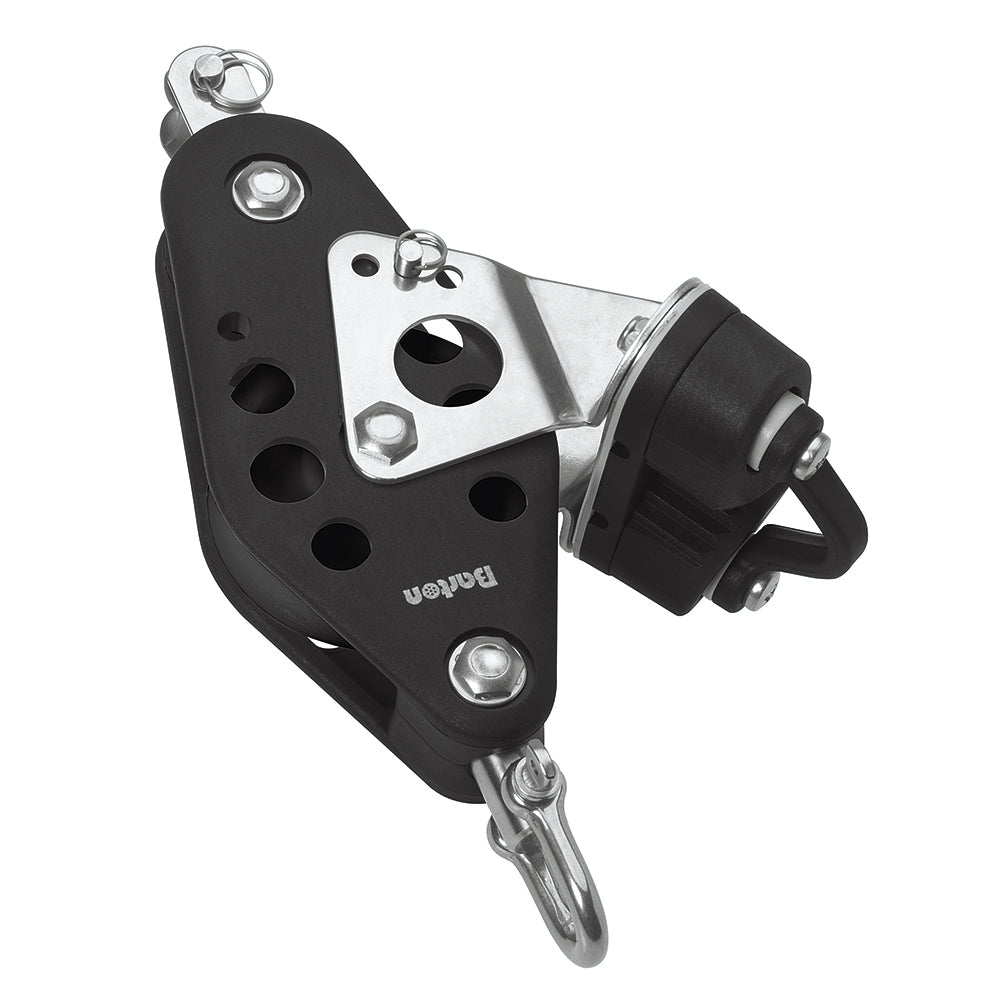

Barton Marine Series 5 Fiddle, Swivel, Becket, Cam Block, 54mm Sheave, 750kg SWL

Barton Marine Series 5 Fiddle, Swivel, Becket, Cam Block, 54mm Sheave, 750kg SWL

SKUCT-108980

$133.90
$133.90
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Out of stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Master demanding marine applications with the Barton Marine Series 5 Fiddle, Swivel, Becket, and Cam Block. Engineered for larger cruising and racing yachts, this robust block ensures exceptionally smooth operation and reliable performance under the heaviest loads. Built with marine-grade 316 stainless steel and precision-moulded components, it's designed for long-lasting durability in harsh offshore conditions. Upgrade your rigging today for enhanced control and safety on the water.

Key Features:
  • Precision-Moulded Acetal Sheave: Runs smoothly on a large diameter brass bearing, ensuring free-running performance even under the highest loads.
  • Rugged Construction: Features high-grade moulded side plates that are through-bolted and riveted, providing superior strength and security for critical rigging points.
  • Marine-Grade Stainless Steel Frame: All load-carrying components and the interior frame are crafted from 316 stainless steel for exceptional corrosion resistance and reliability.
  • High Safe Working Load: Rated for a 750kg (1650lbs) safe working load and a 1500kg (3300lbs) breaking load, offering robust support for substantial forces.
  • Optimized for Performance: The 54mm sheave size supports ropes up to 12mm in diameter, making it suitable for a wide range of rigging setups.
Specifications:
  • Sheave Size: 54mm x 17mm
  • Max Rope Diameter: 12mm
  • Safe Working Load (SWL): 750kg / 1650lbs
  • Breaking Load: 1500kg / 3300lbs
  • Length: 209mm
  • Weight: 469g
Compatibility & Pairings:

This Series 5 block is ideal for use on larger cruising and racing yachts and is compatible with Barton's ball bearing mainsheet traveller systems.
