Brand: Barton Marine

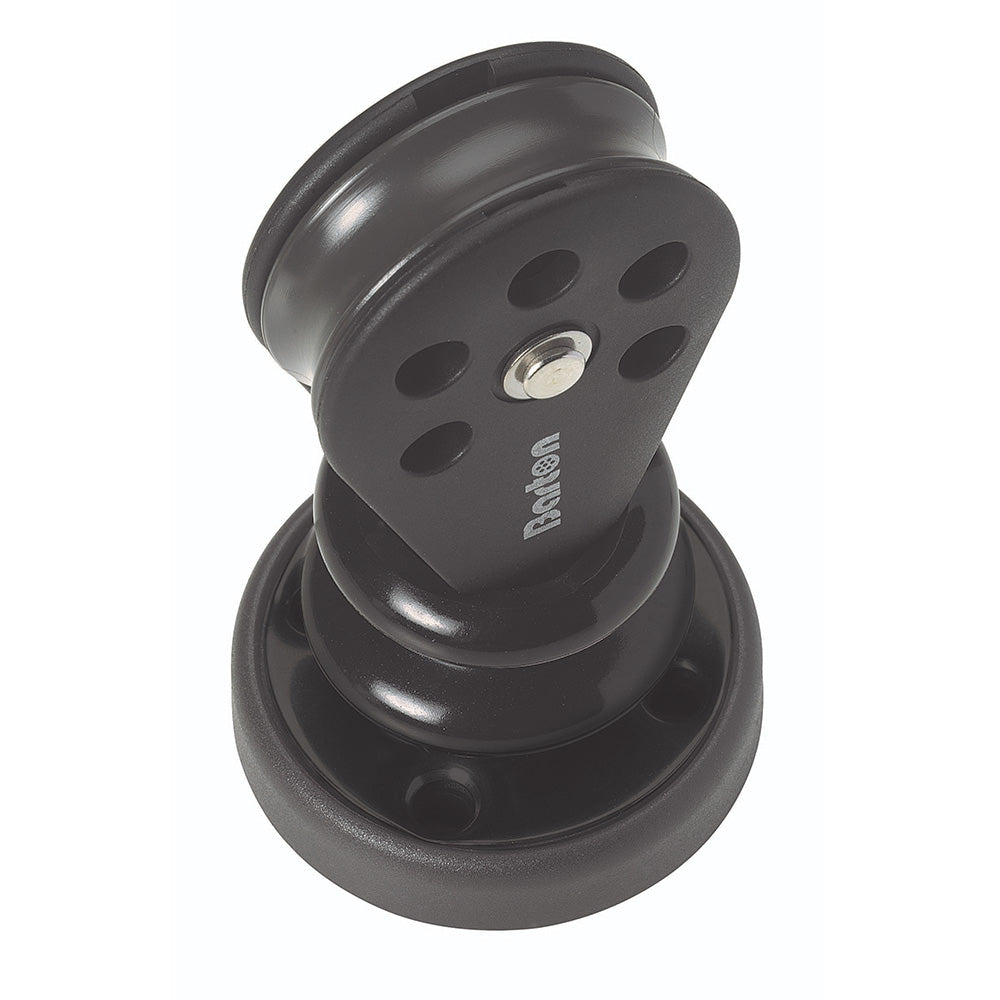

Barton Marine Size 7 Single Plain Bearing Stand-Up Block (N07170)
Barton Marine Size 7 Single Plain Bearing Stand-Up Block (N07170)
Sold out
About this product
This Barton Marine Size 7 Single Plain Bearing Stand-Up Block is engineered for performance on larger cruising and racing yachts. It features a precision-molded acetal sheave that rotates on a large-diameter brass bearing to ensure smooth operation under high loads. The construction includes durable injection-molded side plates reinforced with 316-grade stainless steel components, which are both through-bolted and riveted for maximum security and strength.
- Dimensions: 6-3/8 in. (162 mm) total length
- Sheave Size: 2-3/4 in. x 3/4 in. (70 mm x 20 mm)
- Maximum Rope Diameter: 9/16 in. (14 mm)
- Weight: 444 g
- Safe Working Load (SWL): 2750 lbs. (1250 kg)
- Breaking Load: 5500 lbs. (2500 kg)
- Part Number: N07170
Note: Safe working loads and breaking loads assume even loading across the sheave, as in a purchase tackle. Uneven loading will reduce the effective strength of the block.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-112630
- Model / MPN
- N07170
- UPC / GTIN
- 5035088082070
- Package dimensions (H × W × L)
- 2" X 4" X 8"
- Package weight
- 1.0 lb
- Country of origin
- UNITED KINGDOM
Specifications
- Type
- Barton Marine Size 7 Single Plain Bearing Stand-Up Block
