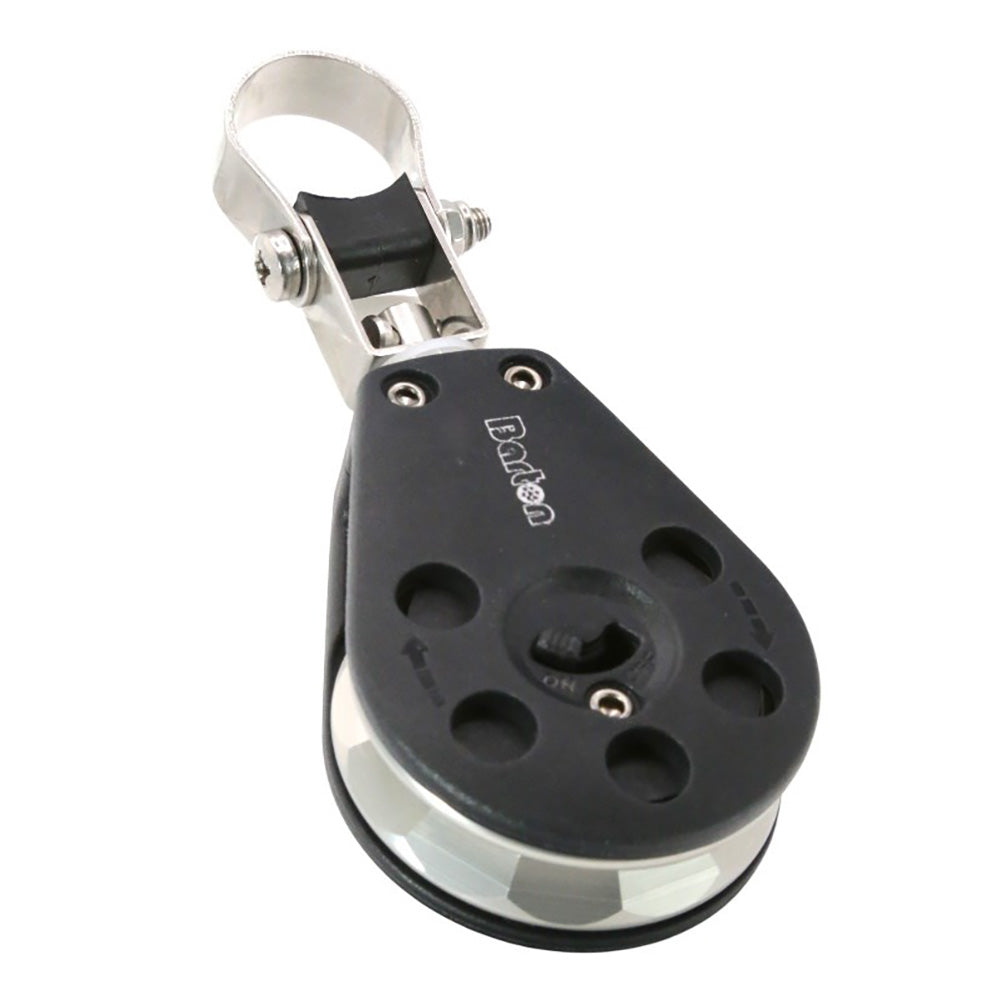

Barton Marine 25mm Stanchion Ratchet Block, 55mm Sheave, 60160

Barton Marine 25mm Stanchion Ratchet Block, 55mm Sheave, 60160

SKUCT-117953

$125.96
$125.96
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Gain superior control and reduce effort when managing your furling lines with the Barton Marine 25mm Stanchion Ratchet Block. Engineered for robust performance in harsh marine environments, this high-performance block significantly lessens crew strain by acting as a friction brake against sail pull, allowing for easier handling of loaded lines and controlled easing. Proudly designed and manufactured in the UK, it's a reliable upgrade for any serious sailor. Optimize your sailing experience today with Barton Marine's trusted quality.

Key Features & Benefits:

  • Effortless Line Control: The innovative ratchet mechanism locks the 12-faced aluminum sheave in one direction, acting as a friction brake to reduce load on furling lines and allow for controlled easing.
  • Universal Stanchion Fitment: Designed for quick and simple installation onto standard 25mm (1-inch) guard rail stanchions, providing versatile placement options.
  • Adjustable Mounting: A stainless steel clamping ring enables easy adjustment, allowing you to mount the block at any desired angle for optimal line lead.
  • High-Performance Sheave: Features a 55mm (2-3/16 inch) 12-faced aluminum sheave, anodized in gunmetal silver for durability and equipped with ball bearings for low friction and exceptional longevity.
  • Robust Marine-Grade Construction: The block body is crafted from a durable composite of high-density nylon and glass fiber reinforced polymer with advanced UV protection, while internal components are marine-grade 316 stainless steel, ensuring maximum resistance to corrosion and wear.
  • Swivel Lock Capability: Includes a stainless steel lever to lock the swivel head if desired, offering added stability and control.

Specifications:

  • Part Number: 60160
  • Maximum Line Diameter: 10mm (3/8 inch)
  • Safe Working Load (SWL): 661 lb (300 kg)
  • Breaking Load (BL): 2,646 lb (1,200 kg)
  • Length: 120mm (4-3/4 inch)
  • Width: 55mm (2-3/16 inch)
  • Tube Size: 25mm (1 inch)
  • Weight: 4.8 oz (135 grams)
