Brand: BEP Marine

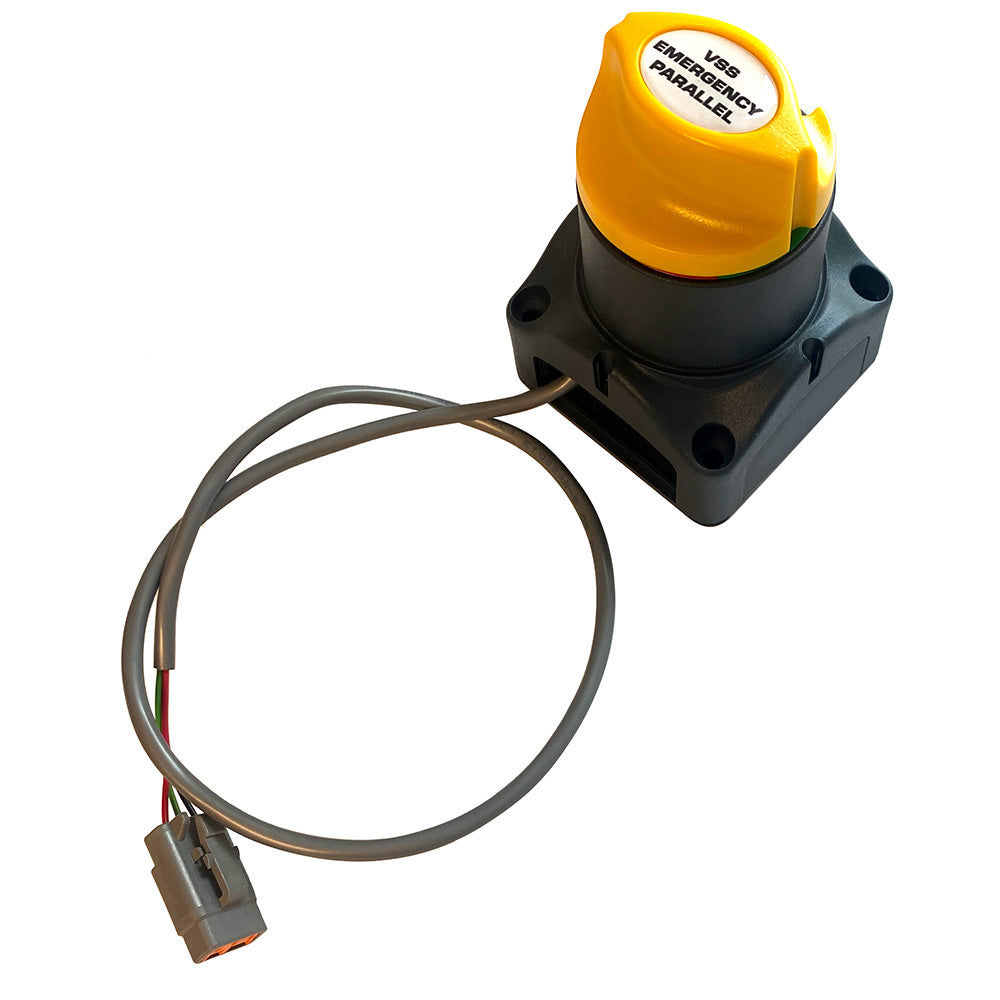

BEP Marine 701-MDVS-D 275A Dual Operation Voltage Sensitive Switch with Deutsch Connector
BEP Marine 701-MDVS-D 275A Dual Operation Voltage Sensitive Switch with Deutsch Connector
Sold out
About this product
The BEP Marine 701-MDVS-D is a 275A voltage sensitive switch for managing charging between two battery banks. It senses battery voltage to combine or isolate the banks when a charging source is present, and supports remote emergency parallel operation.
- Continuous rating: 275A DC; intermittent rating: 455A DC; cranking rating: 1250A DC
- Voltage rating: 9.5–32V
- Deutsch connector, dual battery sensing, and manual override option
- Engages when either start or house battery reaches 13.7V. Engine-run sensing opens the contacts under specified low-voltage conditions: below 13.0V for 5 seconds with the engine off, or below 12.2V for 5 minutes with the engine running. When voltage is below 13V but above 12.2V while the engine is running, the switch stays engaged.
- A momentary dash button enables emergency parallel operation for 10 minutes. Afterward, the switch remains engaged if voltage supports operation or disengages otherwise.
- On/off operation; recessed or surface mounting; ignition protected
- Stud size: 2 x 10mm (3/8 in.)
- Power draw: 12mA off, 15mA on, and 120mA while operating for 3 seconds at 12V nominal
- Construction features tinned copper conductors, stainless steel nuts, and high-temperature, fiber-reinforced plastics
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-118134
- Model / MPN
- 701-MDVS-D
- UPC / GTIN
- 870216038360
- Package dimensions (H × W × L)
- 3" X 3" X 4"
- Package weight
- 0.65 lb
- Country of origin
- NEW ZEALAND
Specifications
- Continuous Amperage
- 275 Amps DC
- Positions
- 2
