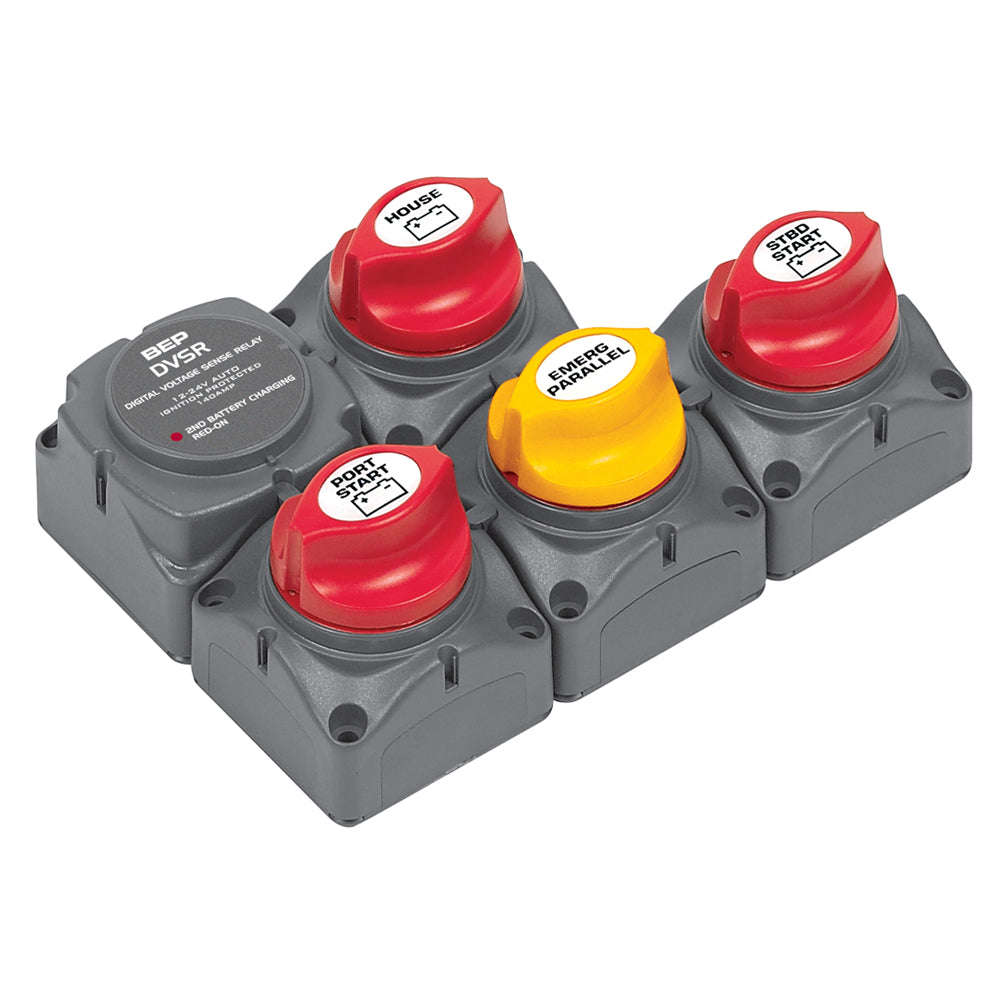

BEP Marine Battery Distribution Cluster, Twin Inboard, 275A Cont.

Master your vessel's electrical demands with the BEP Marine 718-140A-DVSR Battery Distribution Cluster. Engineered for twin inboard engine systems with three battery banks, this cluster provides an optimal solution for battery management, particularly when parallel alternator regulators are impractical. It intelligently isolates your start batteries while ensuring your house battery is efficiently charged from the port engine via an integrated Voltage Sensing Relay (VSR). Designed in New Zealand for the harshest marine environments, it delivers reliable power distribution and peace of mind. Upgrade to a smarter power system today.

• Optimized for Twin Inboards: Specifically designed for twin inboard engine installations with three battery banks, simplifying complex electrical setups.
• High Power Capacity: Features a robust 275 Amps DC continuous rating, 455 Amps DC intermittent, and a 1250 Amps DC cranking rating, ensuring reliable power handling for demanding marine applications.
• Intelligent Charging: The integrated 140A Voltage Sensitive Relay (VSR) automatically engages at 13.4V to charge the house battery from the port engine and disengages at 12.8V to prevent discharge, safeguarding your start batteries.
• Emergency Parallel Function: Provides the critical ability to emergency parallel both starting batteries, ensuring you can always start an engine when needed.
• Secure & Versatile Mounting: Supports both recessed and surface mounting options for flexible installation.
• Robust Connectivity: Equipped with 2 x 3/8” (10mm) termination studs for secure and high-capacity cable connections.
• ABYC Compliant Design: Features a removable rear cover that insulates terminals against short circuits, meeting rigorous ABYC requirements for safety and performance.
• Enhanced Security: The control knob features a patented contour lock system and cannot be removed while in the On or Off position, enhancing system security.
• Compact Dimensions: Measures 207mm L x 138mm W x 75mm D (8.1" L x 5.4" W x 3" D), allowing for efficient use of onboard space.
• Water Resistant: Built to withstand marine conditions, though not designed for submersion.
