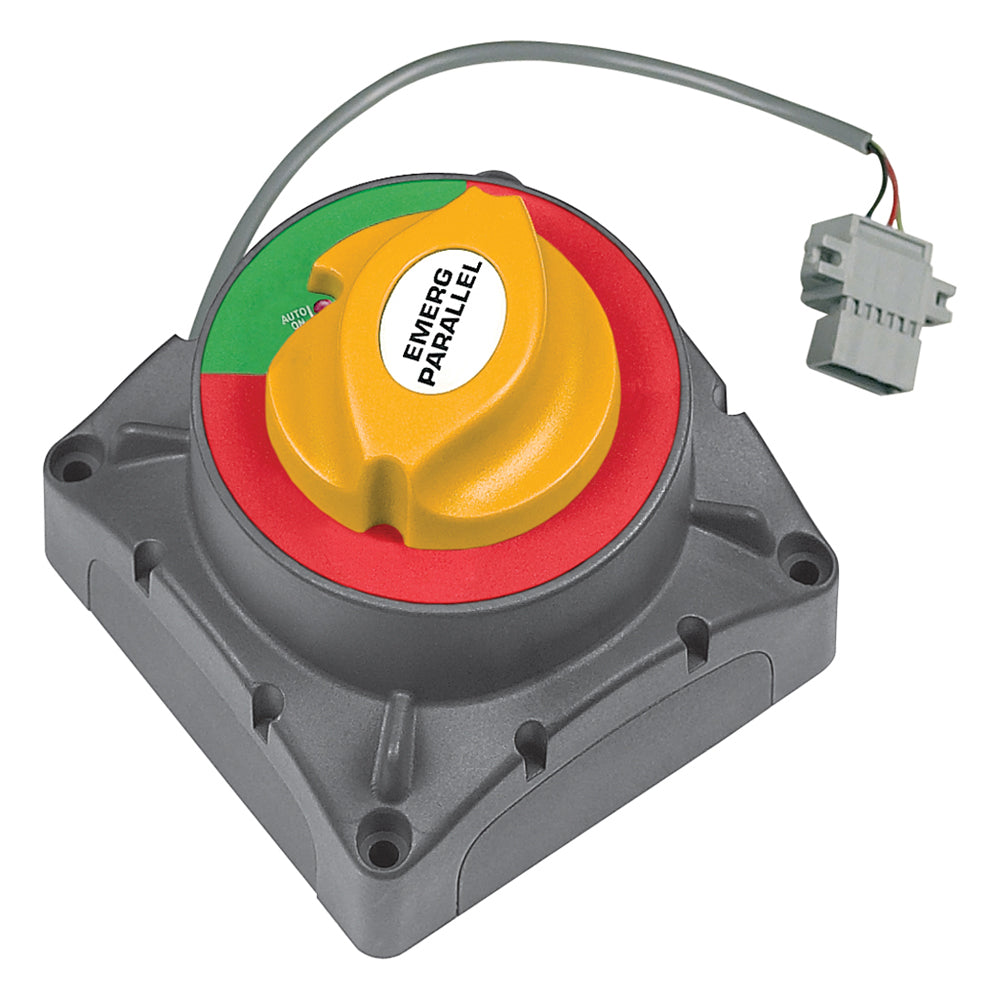

BEP Marine 720-MDO-EP Emergency Parallel Switch, 12/24V 500A

Ensure reliable engine starting and safeguard your battery banks with the BEP Marine 720-MDO-EP Emergency Parallel Switch. This motorized, high-current switch provides a crucial remotely activated emergency connection for up to 10 minutes, perfect for starting large engines (up to 2500A cranking for 10 seconds). Designed and constructed for the harsh marine environment with tinned copper conductors and fiber-reinforced plastics, it automatically disconnects after 10 minutes to prevent accidental battery drainage. Upgrade your vessel's electrical system with this essential safety component, proudly engineered for longevity and performance.

In the Box:

• BEP Marine Emergency Parallel Switch
• Instruction manual

Key Benefits & Features:

• High-Current Capacity: Delivers a 500A continuous rating and a powerful 2500A cranking rating for 10 seconds, ensuring robust emergency engine starting power.
• Automated Battery Protection: Remotely activates a parallel connection for 10 minutes and then automatically switches off, preventing your start batteries from becoming inadvertently flattened.
• Built for the Marine Environment: Constructed with tinned copper conductors, stainless steel nuts, and high-temperature, fiber-reinforced plastics for exceptional durability and longevity in demanding conditions.
• Ignition Protected & Safe: Meets UL 1107 standards and features an IP65 rating, making it safe for installation in engine rooms and other protected areas.
• Flexible Operation: Offers both remotely activated operation via a momentary dash button and a convenient manual override option for full control.
• Versatile Mounting: Can be recessed or surface mounted, allowing for flexible installation close to battery banks to minimize voltage drop and cable costs.
• Dual Voltage System: Supports both 12V and 24V battery systems, provided both connected banks are of the same voltage.
• Compact Design: With dimensions of 4" L x 4" W x 4.3" H, it fits easily into marine electrical compartments.
