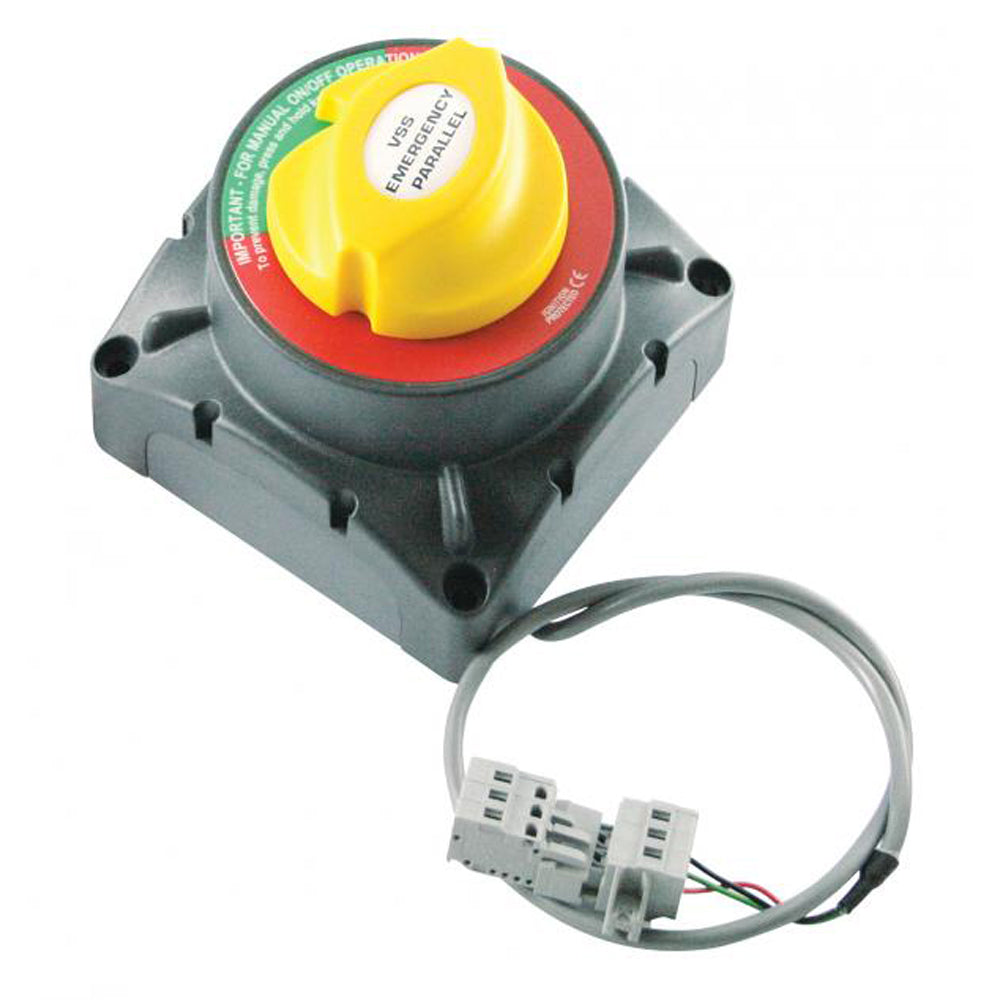

BEP Marine Dual Operation VSS Switch HD Optic, 12/24V 500A - Marine-Grade

Efficiently manage and protect your vessel's electrical system with the BEP Marine Dual Operation VSS Switch HD Optic. This advanced Voltage Sensitive Switch (VSS) automatically detects and optimizes charging for dual battery banks, ensuring reliable power distribution in the harsh marine environment. Engineered with tinned copper conductors and high-temperature, fiber-reinforced plastics, it's built for longevity and features an ignition-protected design for enhanced safety. Upgrade your boat's power management today for peace of mind on the water.

In the Box:

• Parallel Switch
• Instruction Manual

Key Benefits & Specifications:

• Dual Battery Sensing: Automatically senses connected battery bank voltage to provide optimal, efficient charging of the second bank.
• Dual 12/24V Operation: Versatile compatibility for both 12-volt and 24-volt systems (both banks must be the same voltage).
• High Continuous Amperage: Rated for 500A continuous, ensuring robust power handling for demanding marine applications.
• Remote Emergency Parallel: Features a remotely activated, high-current emergency parallel connection for temporary battery combining, ideal for emergency starts.
• Ignition Protected Design: Meets UL 1107 standards, providing safe operation in engine compartments and other sensitive areas.
• Marine-Grade Construction: Built with tinned copper conductors, stainless steel nuts, and high-temperature, fiber-reinforced plastics for exceptional durability in harsh marine conditions.
• Low Power Consumption: Consumes less than 6mA, minimizing drain on your battery systems.
• Optimized Cut-in Voltage: Lowered cut-in voltage (13.3V/26.6V) is suitable for low output alternators and high-temperature environments.
• Flexible Mounting: Can be recessed or surface mounted to suit your installation needs.

Compatibility & Pairings:

• Ideal for integrating independent battery banks with a single charging source, such as an engine alternator or battery charger.
• Requires appropriate marine-grade cabling (minimum 2x95mm² (2x 3/0) cables for 500A continuous rating) for optimal performance.
