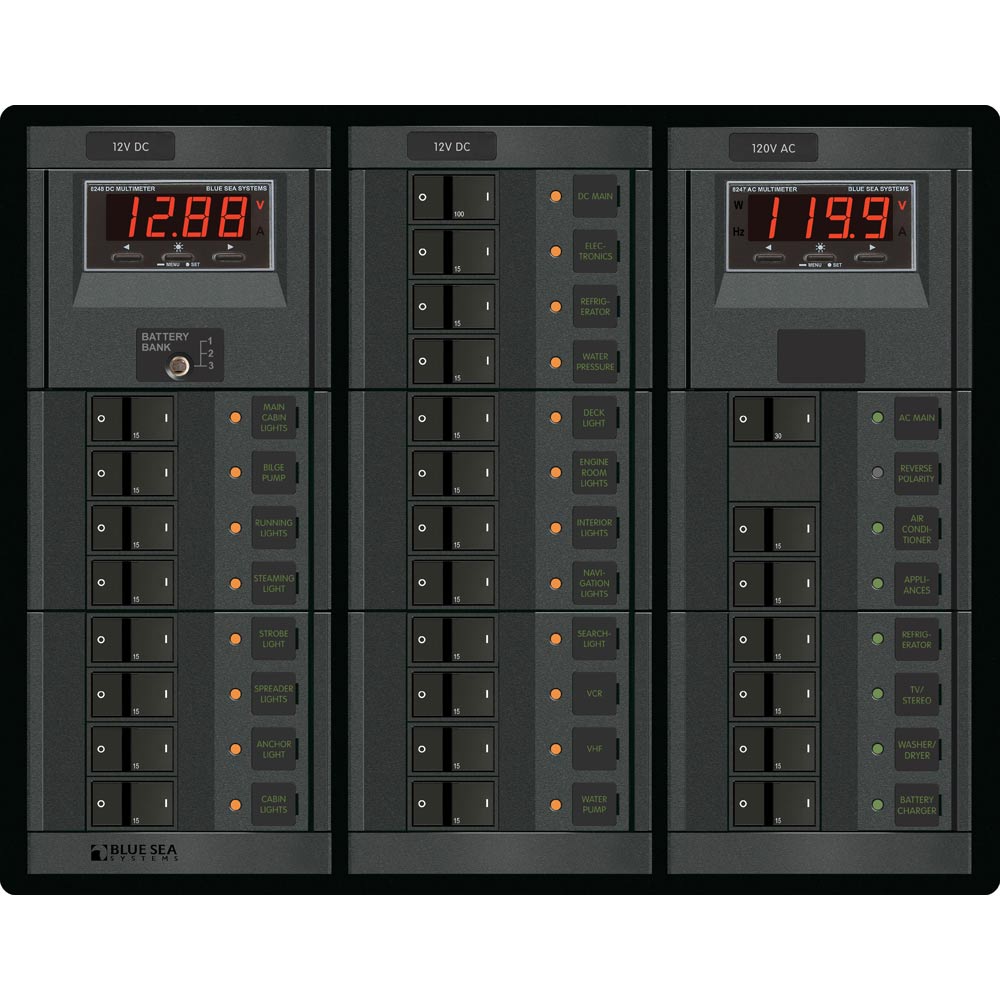

Blue Sea Systems 1218 AC/DC Main Combination Panel, 6 AC / 19 DC Positions

Master your vessel's electrical demands with the Blue Sea Systems 1218 AC/DC Main Combination Panel. This robust panel integrates both AC and DC switching, circuit protection, source selection, and monitoring into a single, efficient unit. Designed as part of the innovative 360 Panel System, it offers unmatched flexibility and ease of installation for comprehensive power management onboard. Upgrade your electrical system for enhanced reliability and control today.

In the Box:

• (1) - 4205 - Basic DC Label Kit - 30 Black Square Labels
• (1) - 4206 - Basic AC Label Kit - 30 Black Square Labels
• (6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (AC Branch)
• (1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (AC Main)
• (1) - 8247 - AC Digital Multi-Function Meter with Alarm (AC Meter)
• (19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (DC Branch)
• (1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (DC Main)
• (1) - 8248 - DC Digital Multi-Function Meter with Alarm (DC Meter)
• (1) - 1331 Panel insulating back cover
• (1) - Toggle switch to monitor voltage on up to (3) batteries

Key Benefits & Features:

• Comprehensive Power Management: Features 6 AC positions and 19 DC positions, allowing for centralized control of all electrical circuits.
• High-Capacity Protection: Supports AC main breakers up to 30A and DC main breakers up to 100A, ensuring robust circuit protection.
• Accurate Monitoring: Includes both AC and DC Digital Multi-Function Meters (8247 and 8248) with alarms for real-time system oversight.
• Flexible & Modular Design: The 360 Panel system design enables easy customization and reduces installation time.
• Corrosion Resistance: Equipped with tin-plated copper bus bars for high conductivity and long-term durability in marine environments.
• Pre-Wired for Convenience: All AC and DC buses come installed and fully pre-wired, simplifying setup.
• Clear Circuit Identification: ON-indicating LEDs and pre-installed label backlighting ensure easy identification of active circuits.

Specifications:

• Nominal Voltage: 120V AC / 12V DC
• Height: 10.75" (273.05mm)
• Width: 13.63" (346.2mm)
• Depth: 4.00" (101.6mm)
• Weight: 12.80 lb (5.81 kg)

Recommended Pairings:

For a complete and customized electrical system, explore other components within the Blue Sea Systems 360 Panel System.
