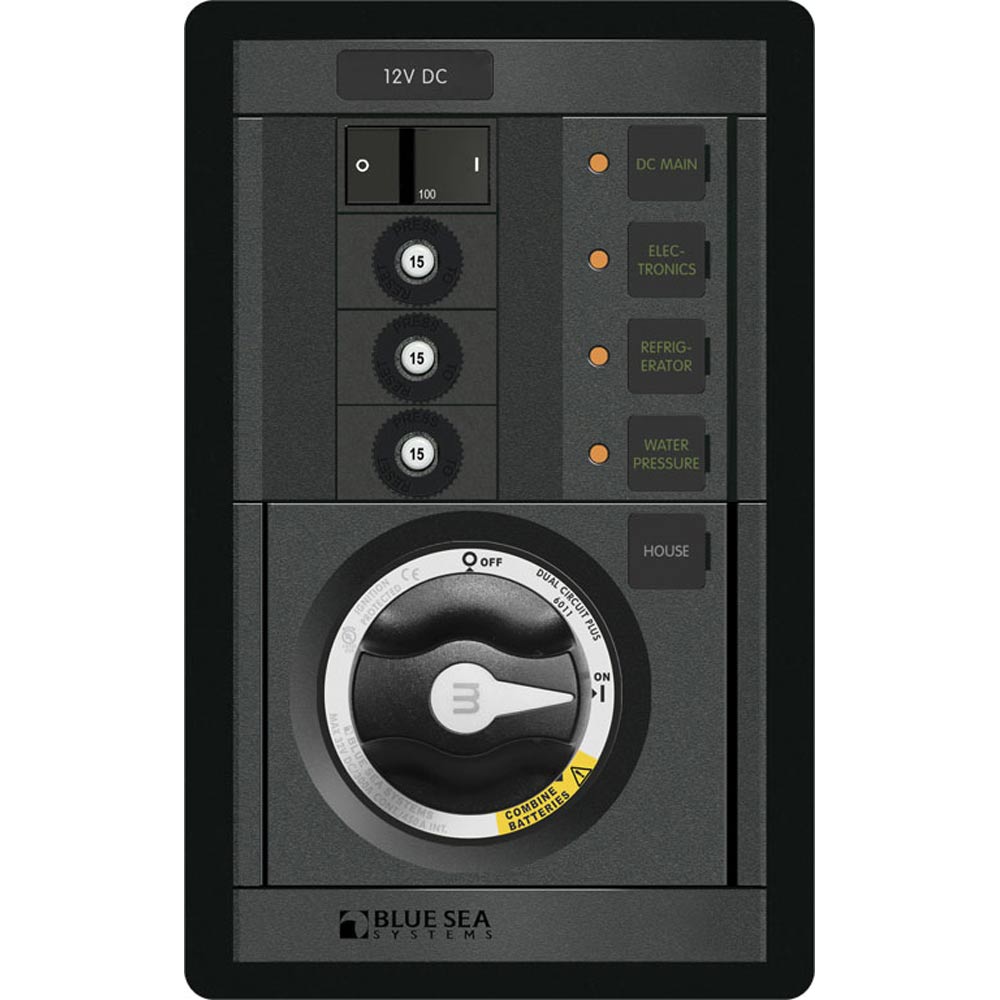

Blue Sea Systems M-Series Dual Circuit Plus 3-Position Vertical Switch

Optimize your vessel's DC electrical system with the Blue Sea Systems M-Series Dual Circuit Plus™ panel. Engineered for robust marine and RV applications, this panel seamlessly integrates battery management and circuit protection, ensuring reliable power distribution for critical systems. It efficiently isolates engine and house circuits while providing an emergency cross-connect option, safeguarding your electronics from voltage sags and spikes during engine cranking. Invest in trusted Blue Sea Systems quality for superior onboard power control.

In the Box:

• M-Series Dual Circuit Plus Panel
• (1) 100A C-Series Flat Rocker Circuit Breaker
• (3) 15A Push Button Reset-Only Quick Connect Circuit Breakers
• (1) 4218 Waterproof DC Label Kit - 30 Black Square Labels

Key Benefits:

• Comprehensive Battery Management: Features an integrated M-Series Dual Circuit Plus™ Battery Switch for isolating engine and house circuits, with an emergency cross-connect for critical power needs.
• Superior Circuit Protection: Includes a 100A DC Main rocker circuit breaker and three 15A push-button reset-only branch circuit breakers for high-density, reliable protection, ideal for 24-hour circuits.
• Enhanced Visibility: Backlit label positions and 'ON' indicating LEDs provide clear status at a glance, even in low light conditions.
• Durable & Concealed Design: Snap-on end-plates hide mounting screws, contributing to a clean, professional installation.
• User-Friendly Labeling: Labels are easily removed and replaced from the front of the panel, allowing for flexible circuit identification.
• Engine Cranking Protection: Protects sensitive onboard electronics from potential damage due to voltage fluctuations during engine startup.

Specifications:

• Positions (Branch Circuits): 3
• Nominal Voltage: 12V DC
• Height: 7.75" (196.85mm)
• Width: 4.88" (123.95mm)
• Depth: 3.50" (88.9mm)
• Weight: 2.42lb (1.1kg)
• Continuous Amperage (Battery Switch): 300A
• Battery Switch Cranking Rating (30 Sec): 675A

Regulatory Compliance:

• Ignition Protected: Meets SAE J1171 and UL 1500 standards for safety in marine environments.
• ABYC Compliant: Adheres to American Boat and Yacht Council standards for electrical systems.
