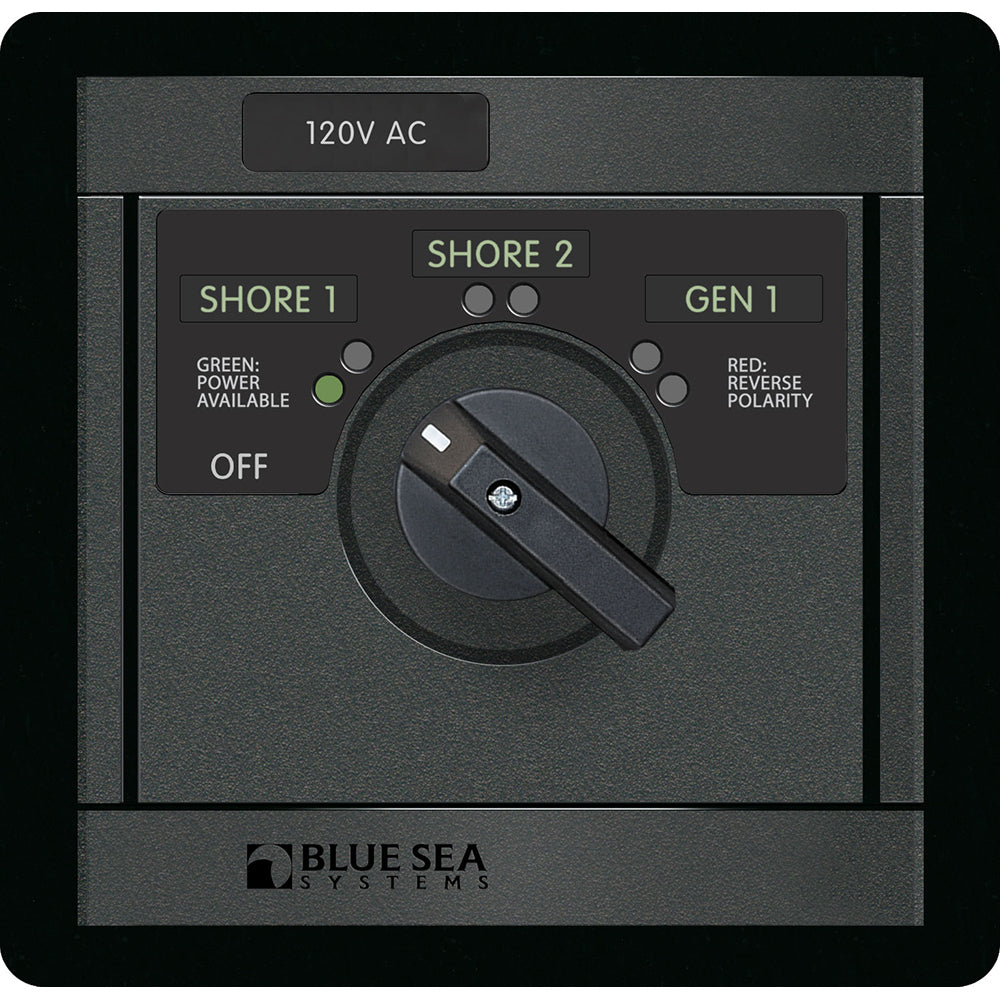

Blue Sea Systems 1482 AC Rotary Switch, 120V 30A with 3 Sources, UL Listed

Efficiently and safely manage multiple AC power sources with the Blue Sea Systems 1482 AC Rotary Switch. Designed for robust performance in marine and mobile applications, this heavy-duty, industrial-rated switch allows you to intuitively select between up to three separate 120V AC sources. Integrated LED indicators provide critical feedback on power availability and instantly alert to reverse polarity conditions, ensuring enhanced system protection. UL listed for safety and reliability, it's an essential component for dependable power distribution.

Key Benefits & Features:

• Multi-Source Management: Seamlessly switches between three independent 120V AC sources, simplifying power system control.
• Advanced Safety Indicators: Features red reverse polarity and green power-available LED indicators for immediate status feedback and enhanced safety.
• Heavy-Duty Construction: Built as an industrial-rated switch for long-lasting durability and reliable operation in demanding environments.
• Compact Integration: Offers a compact solution for AC source selection, especially when circuit protection is provided elsewhere in the system.
• Intuitive Operation: Designed for easy, one-hand operation, making power management straightforward.
• Panel Mount Ready: Mounts securely in panels up to 0.16 inches (4.00mm) thick.
• Optimal Wire Compatibility: Supports a wide wire size range from 14 to 10 AWG, ensuring flexible installation options.
• Certified Reliability: UL listed for assured safety and quality performance.

Specifications:

• Nominal Voltage: 120V AC
• Maximum Amperage: 30A
• Source Selection: 3 positions + OFF
• Dimensions: 4.75" H x 4.88" W x 2.41" D (120.65mm H x 123.95mm W x 61.21mm D)
• Weight: 1.25 lbs (0.57 kg)

Recommended Pairings:

• Integrates seamlessly into Blue Sea Systems' 360 Panel System for a comprehensive electrical solution.
