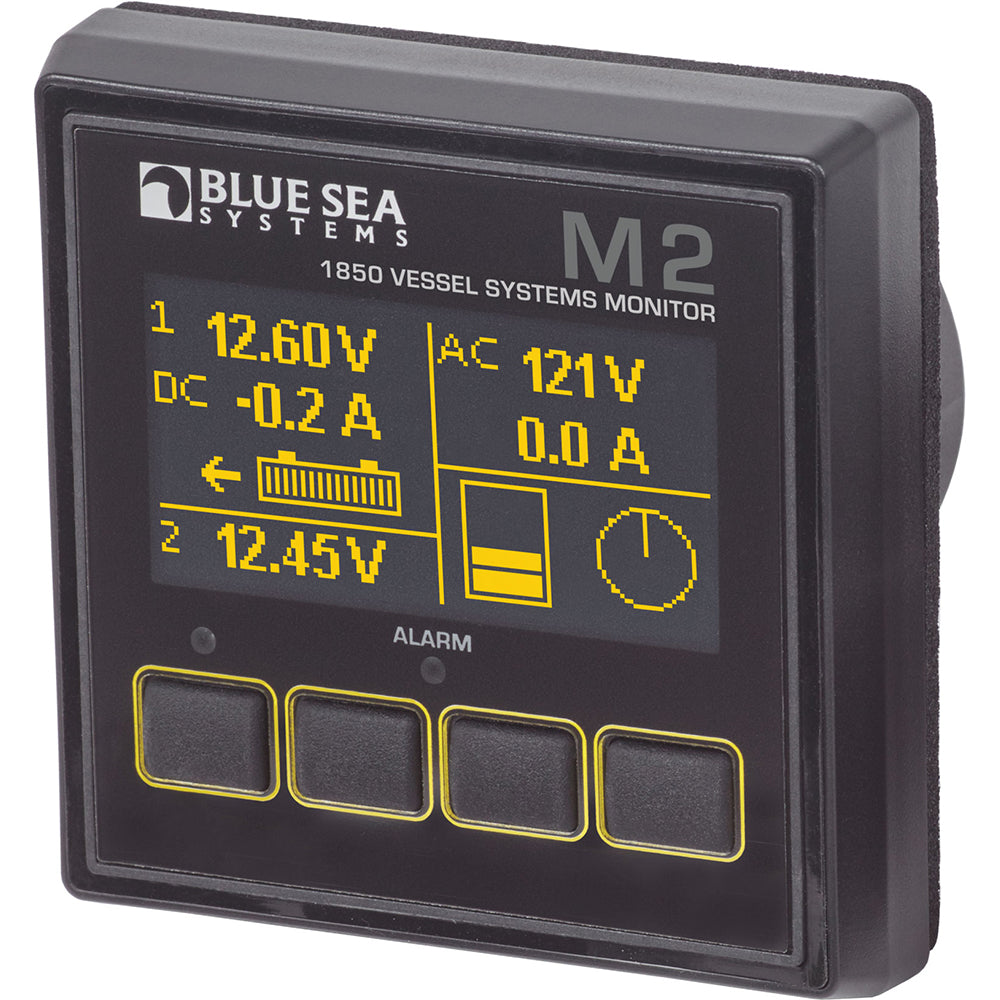

Blue Sea Systems 1850 M2 Vessel Systems Monitor

The Blue Sea Systems 1850 M2 Vessel Systems Monitor provides comprehensive, centralized monitoring for four critical electrical and fluid systems on a single, compact OLED digital display. This versatile unit tracks DC battery performance, AC power quality, and bilge or tank levels, offering customizable alarms for each.

Key Features:

• DC Monitoring: Tracks voltage, state-of-charge, and current for two battery banks, with alerts for high/low voltage and high current.
• AC Monitoring: Tracks voltage, current, and frequency, with alerts for high/low voltage, high current, and high/low frequency.
• Bilge Monitoring: Tracks pump activity, cycle counts, and run time, with configurable high-level alarms.

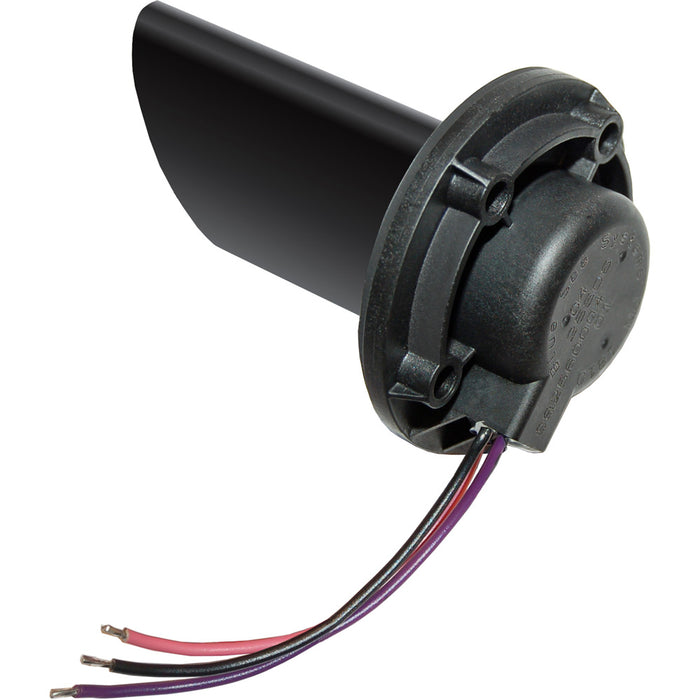

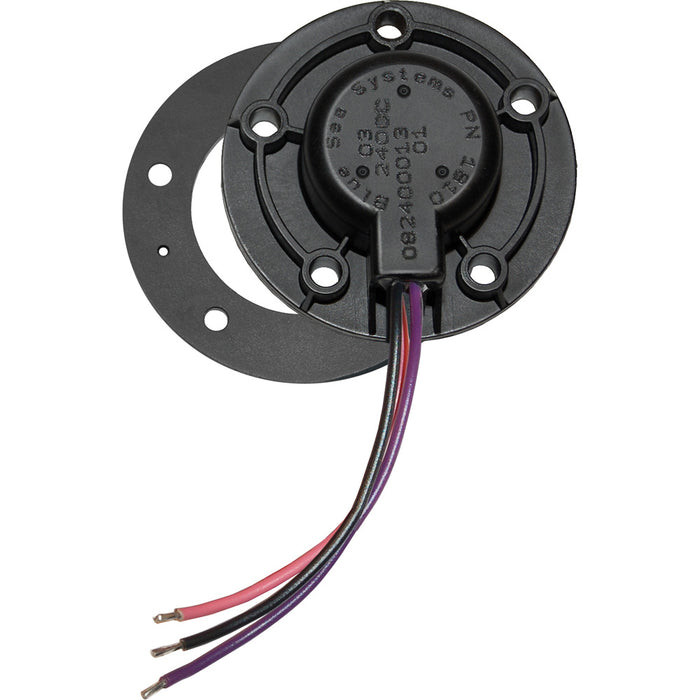

• Tank Monitoring: Tracks fluid levels via capacity (gallons or liters) or percentage, supporting custom tank shapes and high/low level alarms.
• Operating Voltage: Supports 120V or 230V AC and 12V, 24V, or 48V DC systems.
• Measurement Ranges: 40-300V AC, 7-70V DC, 40-90Hz frequency, and current ranges of 0-150A AC or -500 to 500A DC.
• Power Consumption: 18.8mA minimum current draw at 12V with backlight off.
